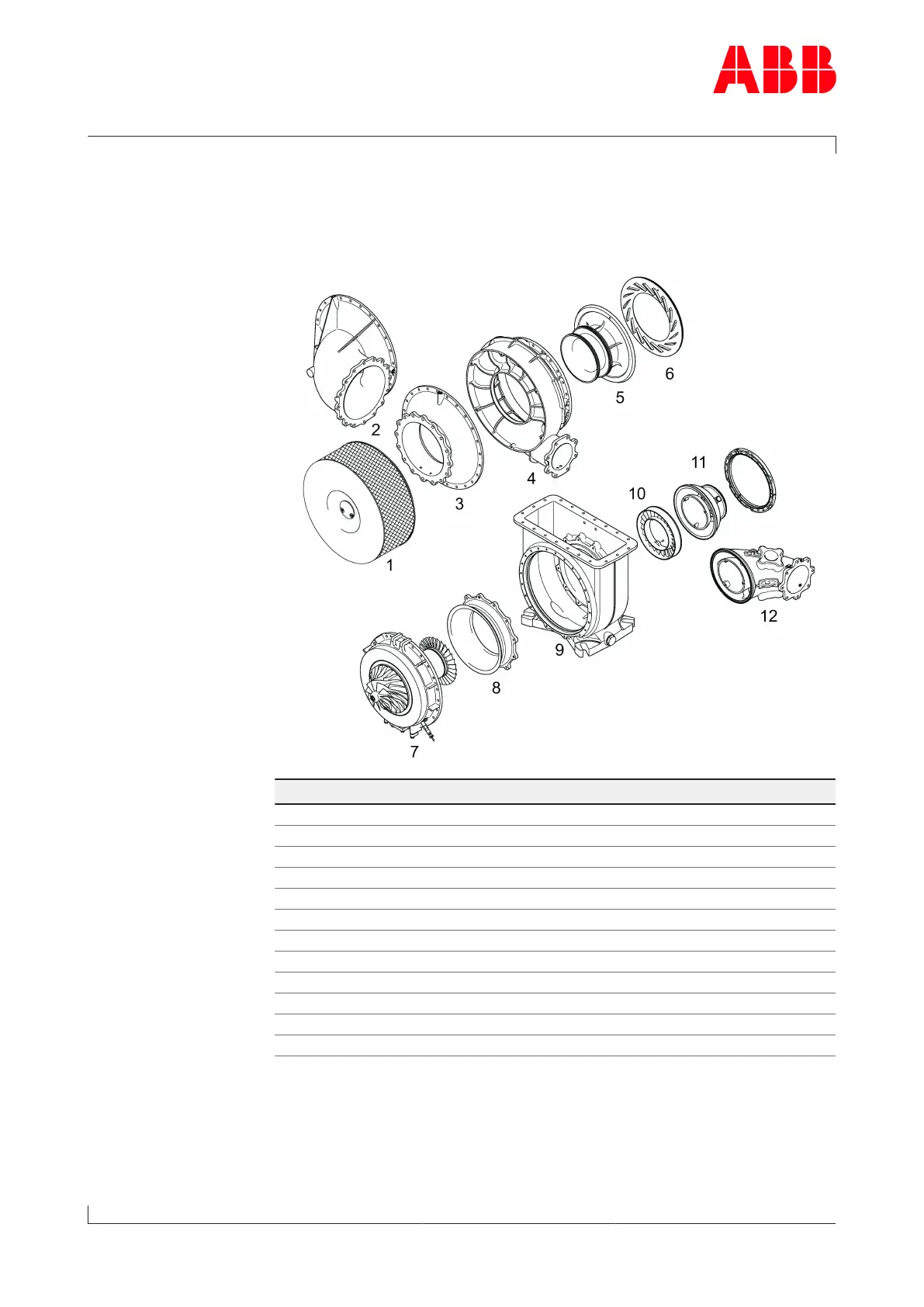

8.2 Module weights
The specified weights of individual parts or assemblies are guides roun-
ded off to the next highest value.
Weights [kg]
Item Description TPR56-F TPR61-F
1 Filter silencer -- 65
2 Radial air suction branch 16 35
3 Axial air suction branch 10 16
4 Compressor casing 95 145
5 Wall insert 22 45
6 Diffuser 7 11
7 Cartridge group 100 160
8 Turbine diffuser 13 20
9 Gas outlet casing 130 180
10 Nozzle ring 3 7
11 Axial gas inlet casing 16 21
12 Radial gas inlet casing 30 45
