Operation Manual / TPR56-F + TPR61-F
7 Removal and installation / 7.1 Turbocharger weights
© Copyright 2018 . All rights reserved. HZTL2490_EN Revision D May 2018
7 Removal and installation
7.1 Turbocharger weights
Lifting gear with a sufficient load limit must be used for removing and
installing the turbocharger. The following weight specification is the
heaviest variant possible. This standard value may deviate from the data
on the rating plate depending on the specification.
Weight [kg]
TPR56-F.. TPR61-F..
360 700

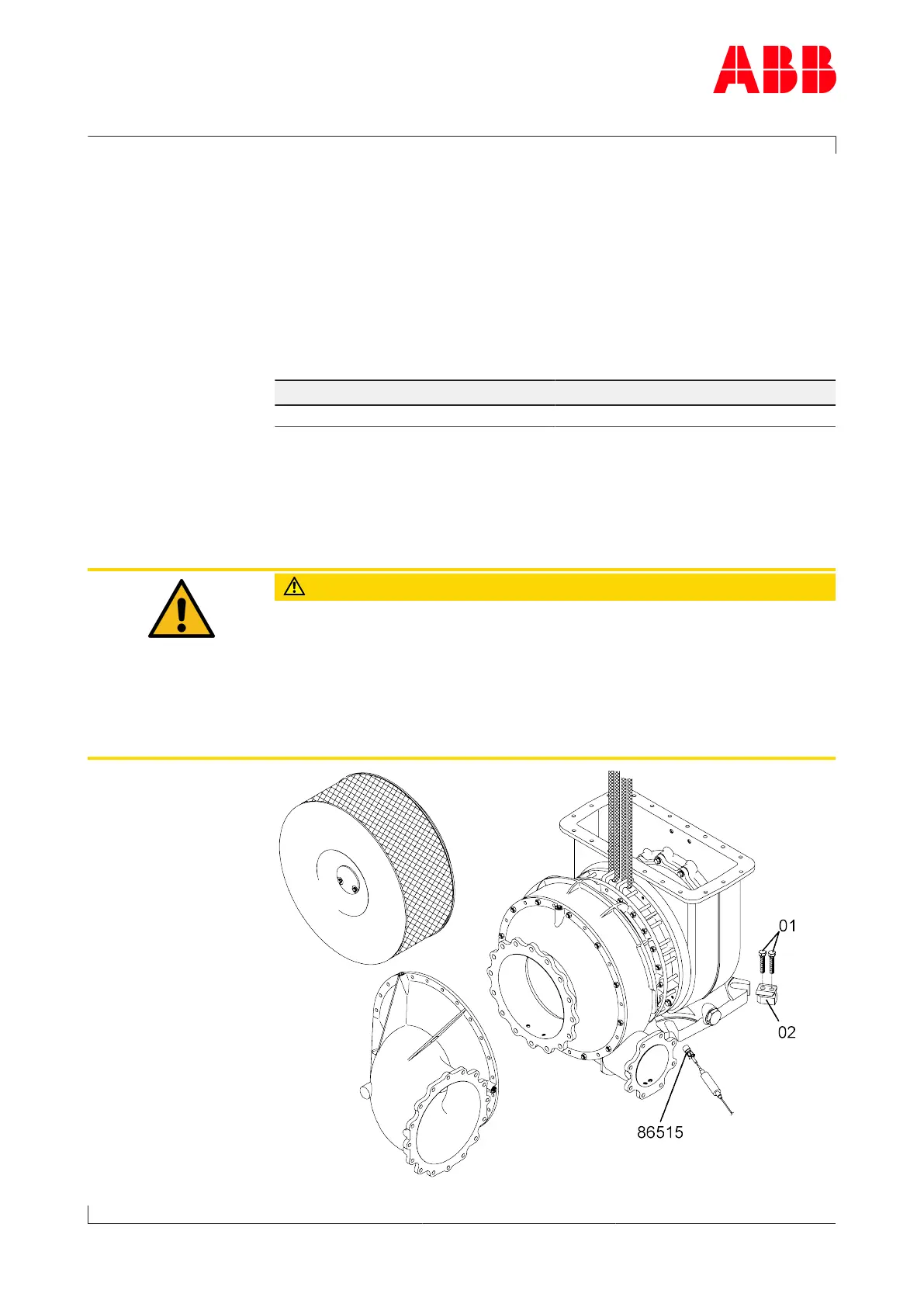

7.2 Removing the turbocharger
u Disconnect all gas, air and oil pipes in accordance with the engineb-
uilder’s instructions.
CAUTION
Oil orifice plates
An orifice plate for adjusting the oil pressure is fitted in each of the two
oil inlet channels in the bearing casing. When the cartridge group, the
bearing casing or the turbocharger is fitted to the engine, it must be
ensured that the orifice plates that are specified for the turbocharger
have been installed in the two oil inlet channels.
u Check correct installation of oil orifice plates.
