Operation Manual / TPR56-F + TPR61-F
8 Disassembly and assembly / 8.5 Removing cartridge group
© Copyright 2018 . All rights reserved. HZTL2490_EN Revision D May 2018

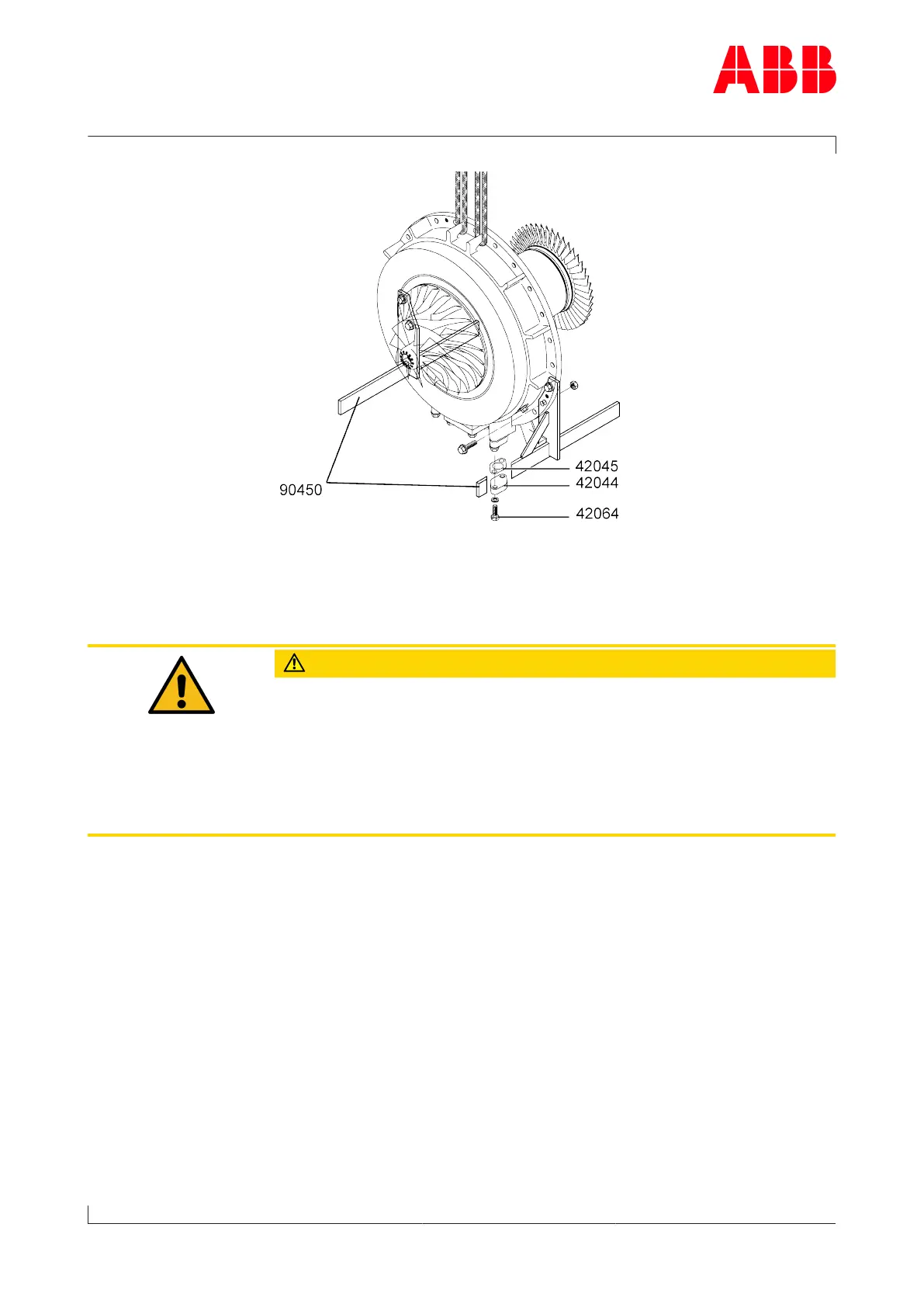

u Withdraw cartridge group and fit supports (90450).
u Remove screws(42064) together with flange(42044) and also remove
possible contamination behind the flange.
u Cover the oil connections.
CAUTION
Further operations
This Operation Manual may be used to carry out only those operations
that are described in it. Erroneous disassembly and assembly of the
cartridge group can lead to serious damage to the machine.
u ABB Turbo Systems recommends having further operations carried
out only by trained personnel from an ABB Turbocharging Service
Station.
Page 64 / 79
