Operation Manual / TPR56-F + TPR61-F
8 Disassembly and assembly / 8.5 Removing cartridge group
© Copyright 2018 . All rights reserved. HZTL2490_EN Revision D May 2018
If provided

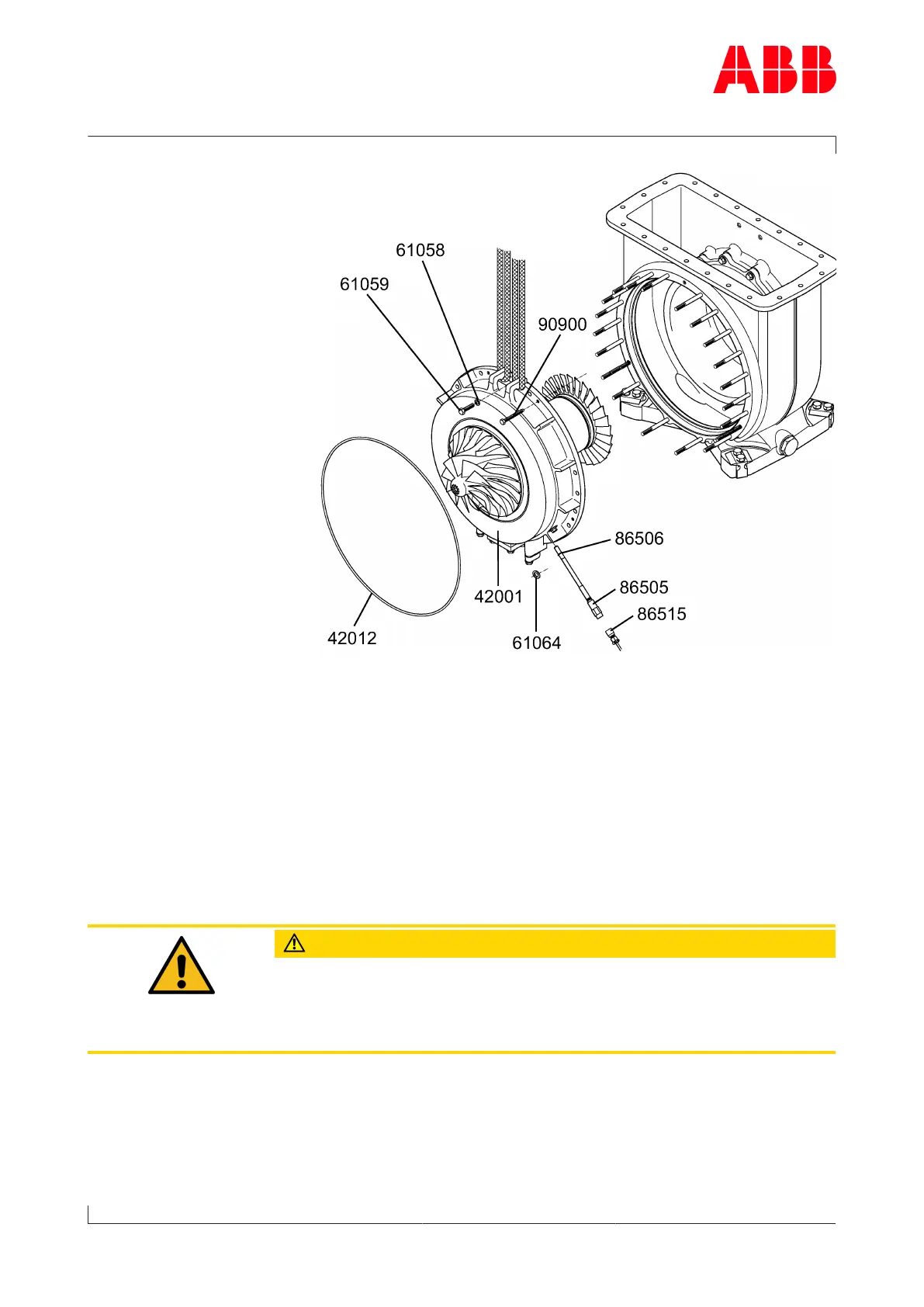

u Unplug cable connector (86515) and unscrew speed sensor (86505)
with O-ring (86506).
u Remove the O-ring (42012).
u Remove screw (61059) with Verbus Ripp® washers (61058) and two
nuts (61064).
u Attach one lifting gear each to the two fins of the bearing casing
provided for this purpose.
u Evenly press off cartridge group by screwing press-off screws
(90900) into the designated holes.
CAUTION
If the blades on the rotor have insufficient or no clearance, this might
cause damage to the blades and the casing.
u Check that the blades do not rub on the turbine diffuser by rotating
the rotor.
Page 63 / 79
