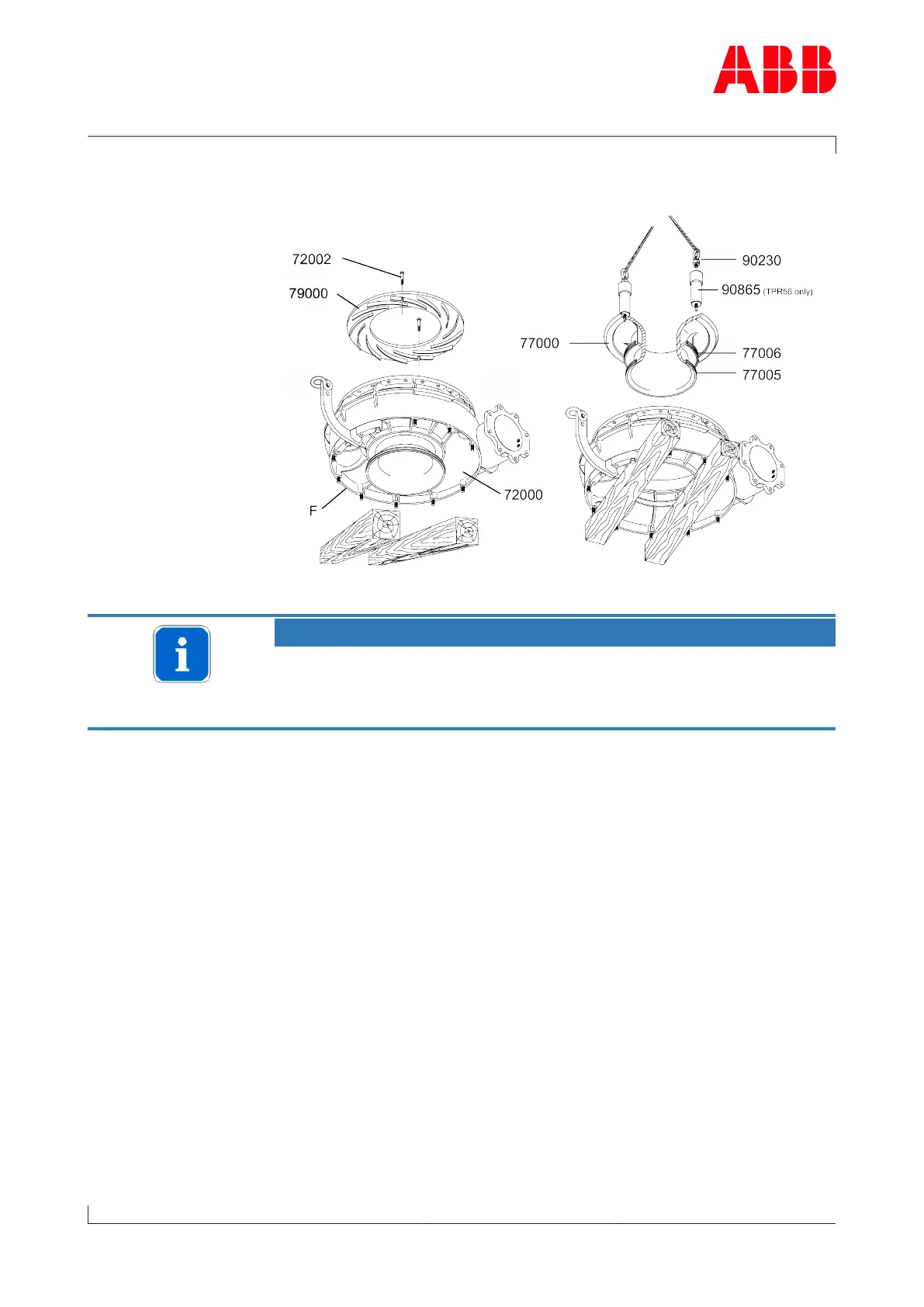

8.5.2 Dismantling the compressor casing
u Rotate the compressor casing and set it down on an underlay.
NOTICE
Ensure that the underlay does not shift.
u Make certain that the compressor casing rests only on the flange (F)!
u Check underlay and adjust if necessary.
u Remove the screw(72002).
u Remove the diffuser(79000).
u Pull out and remove the wall insert(77000) using a swivel lifting
eye(90230) and plug bolt(90865).
u Remove O-rings (77005 & 77006).
