ABB HVC 100C User Manual

Document: v0.6 / Document No.: 6AGA000008-0102-EN | Date: 22-05-2019 Page 18 of 23

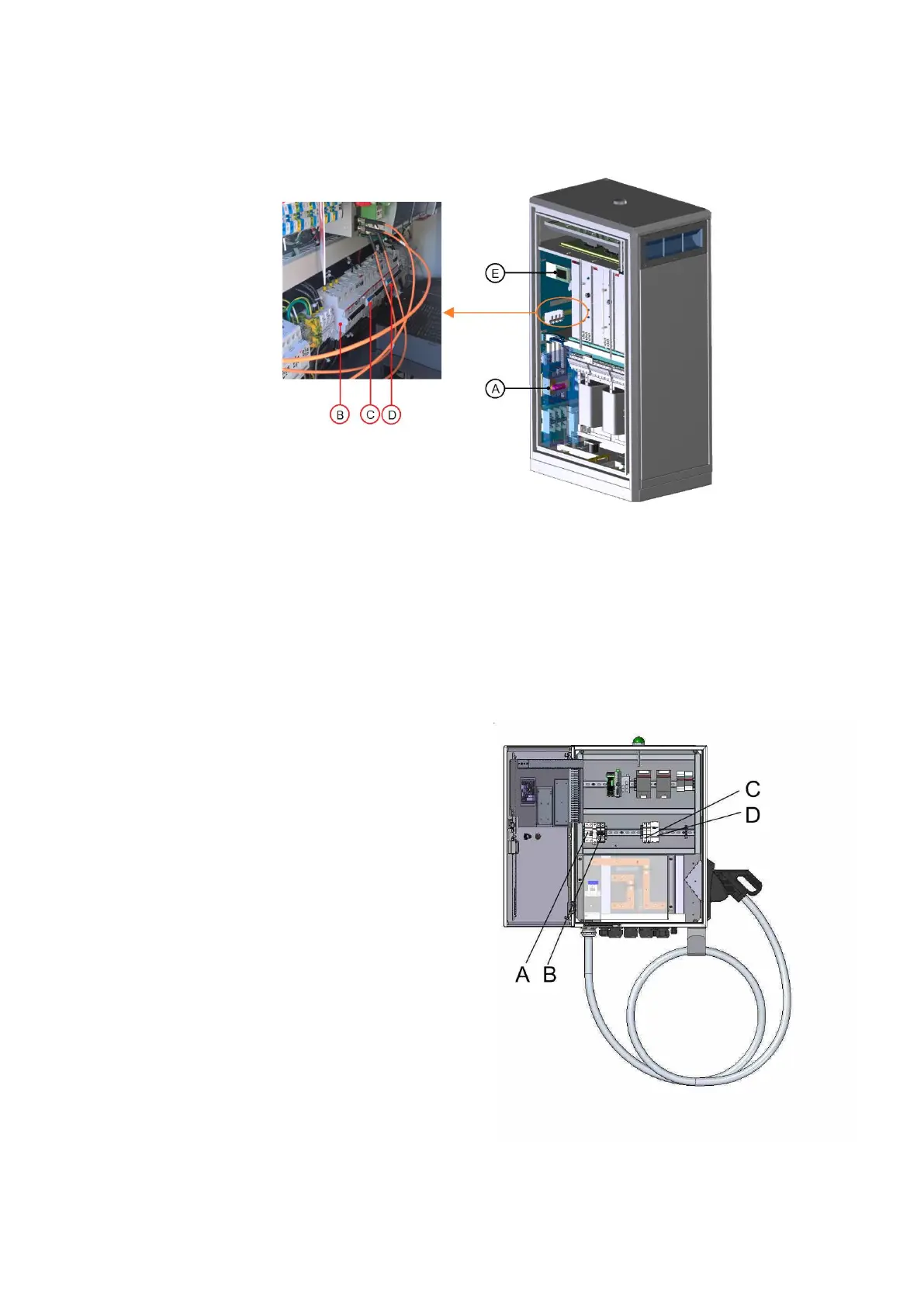

4.3.3 Component overview Power Cabinet
The main components as can be seen with an open front door:
A Main switch
B MCB (Q17) AC power supply for ACM
C RCD (Q13) control
D RCD (Q12) redundant control
E Display
4.3.4 Component overview Depot Charge Box
The main components as can be seen with an open front door:
A SPD (F2) AC Power Supply
B MCB (F1) AC Power Supply
C Fuse (F3,F4) DC Circuit
D SPD (F5) DC Power Circuit
