IM300 Intelligent Power Monitoring Instrument
1
1. Introductions
1.1. Function Specification
IM300 is an intelligent multipurpose power parameter monitoring and control
device which has an extensive range of applications in 6~35kV or 0.4kV power
systems. It has the data acquisition, control and statistical functions, such as electrical
parameters measurement, calculation and statistics, fault records, 2 ~ 31st
harmonics monitoring function, 4-ch digital inputs and 2-ch relay outputs, 1-ch
4~20mA DC transmission output, over-limit alarm and other functions. IM300 is
equipped with RS485 communications and MODBUS-RTU protocol for integration
into any power monitoring and control system. The appearance is shown in fig 1.1.1.

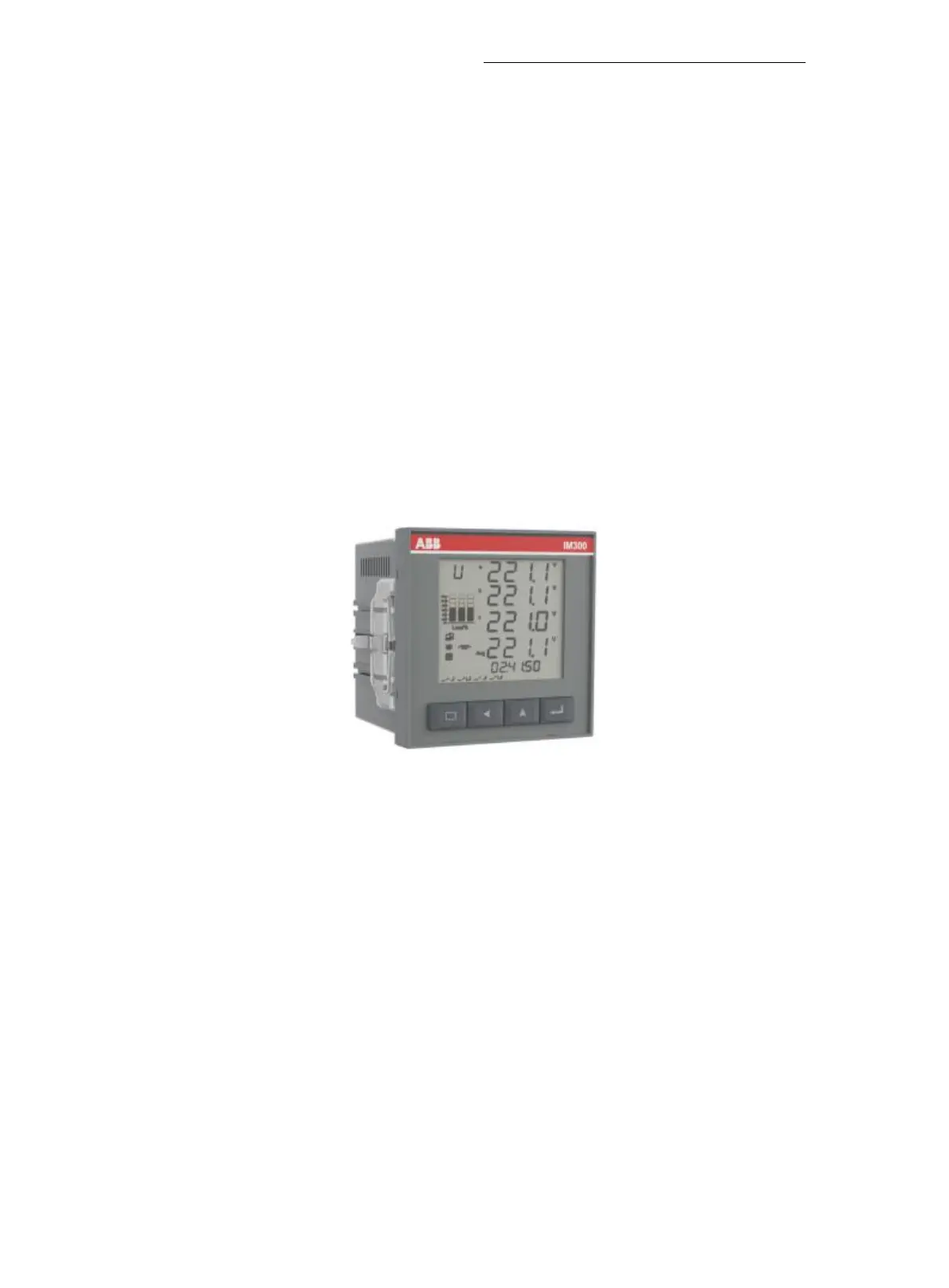

Fig 1.1.1 The appearance of IM300
1.2. Features
1.2.1.IM300 functions
 Applied in 3-phase 3-wire system and 3-phase 4-wire system . It can measure
and calculate 3-phase voltage, 3-phase current, Zero-sequence current, active
power, reactive power, apparent power, power factor, system frequency, active
energy and reactive energy.
 Harmonic distortion ratio of voltage and current.( Including total harmonic
distortion ratio THD, odd harmonic distortion ratio , even harmonic distortion
ratio), 2~31st harmonic occupancy of voltage, 2~31st harmonic occupancy of
current, the RMS of voltage and current base wave, etc.
 2-ch relay control outputs.
