IM300 Intelligent Power Monitoring Instrument
3
cabinet panel easily.
1.2.4.The wiring of system
 3-phase 4-wire 3CT (3P4W 3CT)
 3-phase 4-wire 1CT (3P4W 1CT)
 3-phase 3-wire 3CT (3P3W 3CT)
 3-phase 3-wire 2CT (3P3W 2CT)
 3-phase 3-wire 1CT (3P3W 1CT)
1.2.5.The human-machine interface
The LCD screen can display various of information with bright backlighting. It’s
very easy to operate IM300 by the human-machine interface.
1.2.6.Application field
Medium and low voltage distribution system, intelligent switch cabinet, load
control system, industrial automation, building automation and Energy management
system.
2.
The installation, wiring and configuration
This chapter details the installation method, wiring and configuration of the
IM300. Please read carefully before installation.
2.1. Dimensions and installation

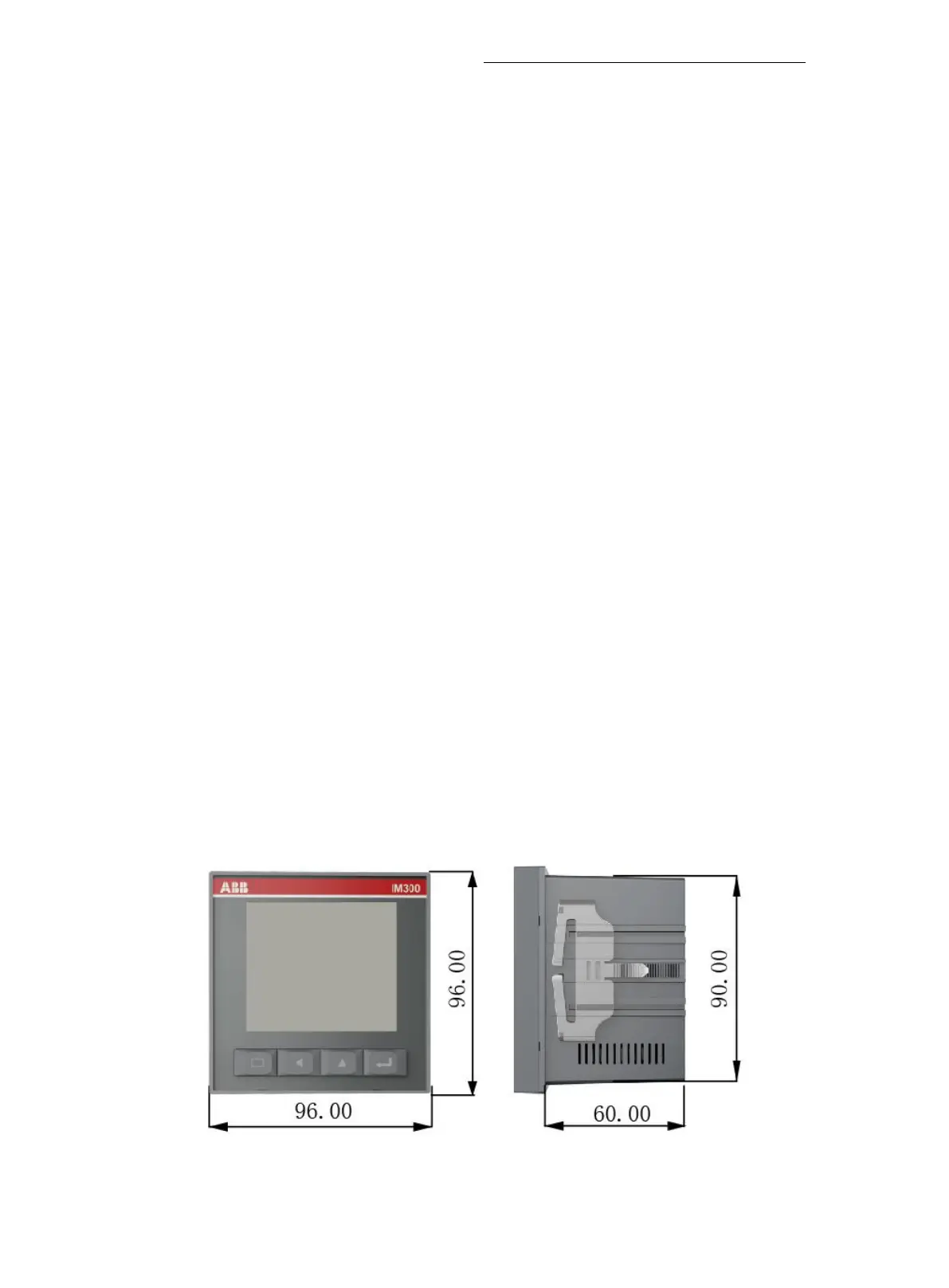

2.1.1. Dimensions of mechanical devices
Front view
Side View
