IM300 Intelligent Power Monitoring Instrument

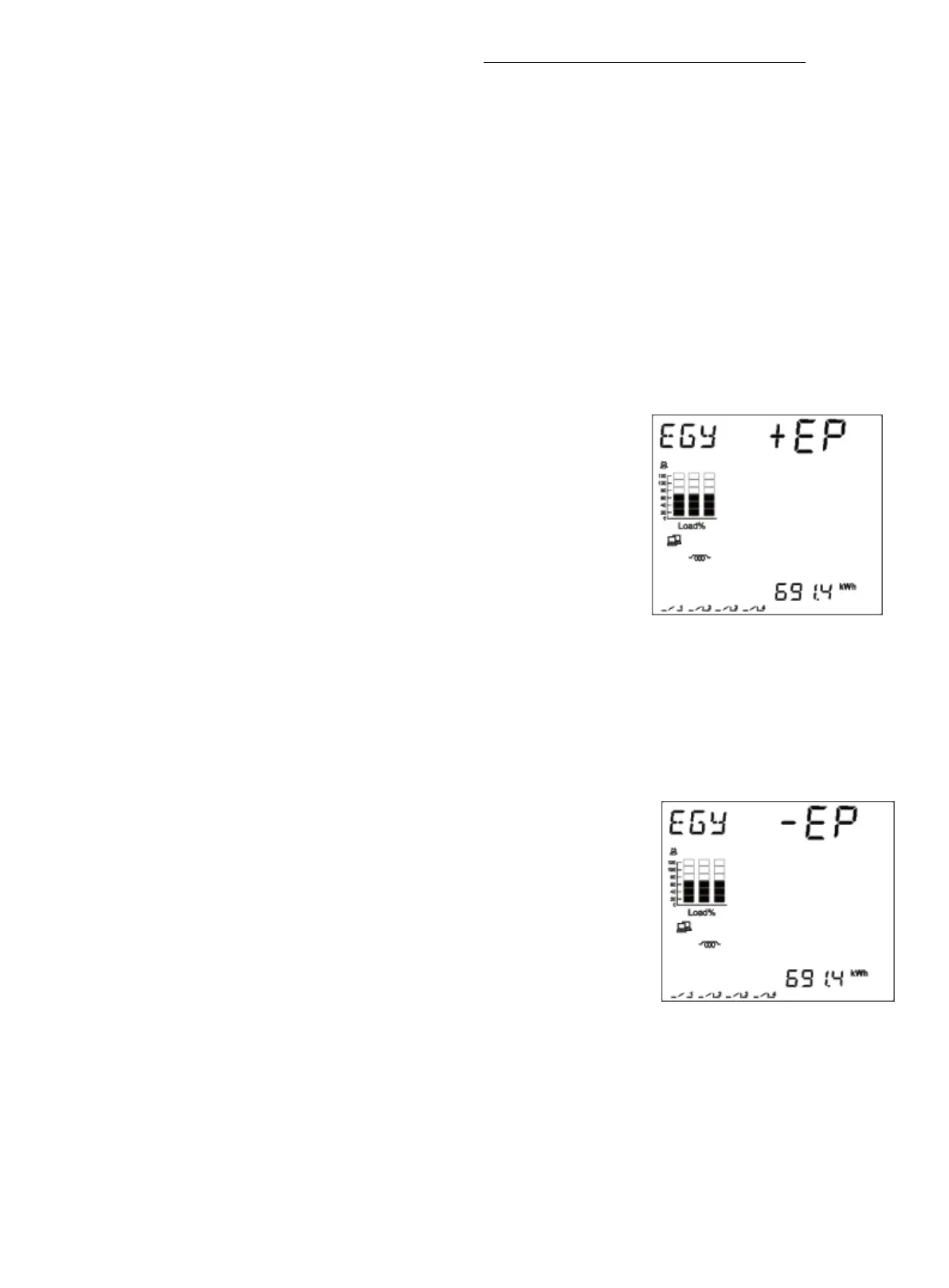

Fig 3.2.46 The absolute value of total
forward active energy
Screen 3 to screen 5: Display the absolute value of per phase active energy
“EP” displayed on the top, “a”, “b”, “c” displayed in the accumulated display
area respectively. The screen display is similar to screen 1.
Note: This screen will be displayed when the connection mode is set as 3-phase 4-wire.
Screen 6 to screen 8: Display the absolute value of per phase reactive energy
“Eq” displayed on the top, “a”, “b”, “c” displayed in the accumulated display
area respectively. The screen display is similar to screen 2.
Note: This screen will be displayed when the connection mode is set as 3-phase 4-wire.
Screen 9: Display the absolute value of total forward
active energy
Top of the screen shows "total"and "+ Eq" word.
See in fig 3.2.46: +EP＝691.4 kWh
Screen 10 to screen 13: Display the absolute value of
forward active energy at sharp,peak, shoulder or off-peak rate
Top of the screen displays "+ EP" words, the top left of the screen with
"sharp","peak ","shoulder","off-peak"the words prompt, the screen display screen
similar to the ninth.
Screen 14: Display the absolute value of total reverse
active energy
Top of the screen shows "total"and "- Eq" word.
-Ep＝691.4 kWh。
Screen 15 to screen 18: Display the absolute value of reverse active energy
at sharp,peak, shoulder or off-peak rate
Fig 3.2.47 The absolute value of total
reverse active energy
