IM300 Intelligent Power Monitoring Instrument
59

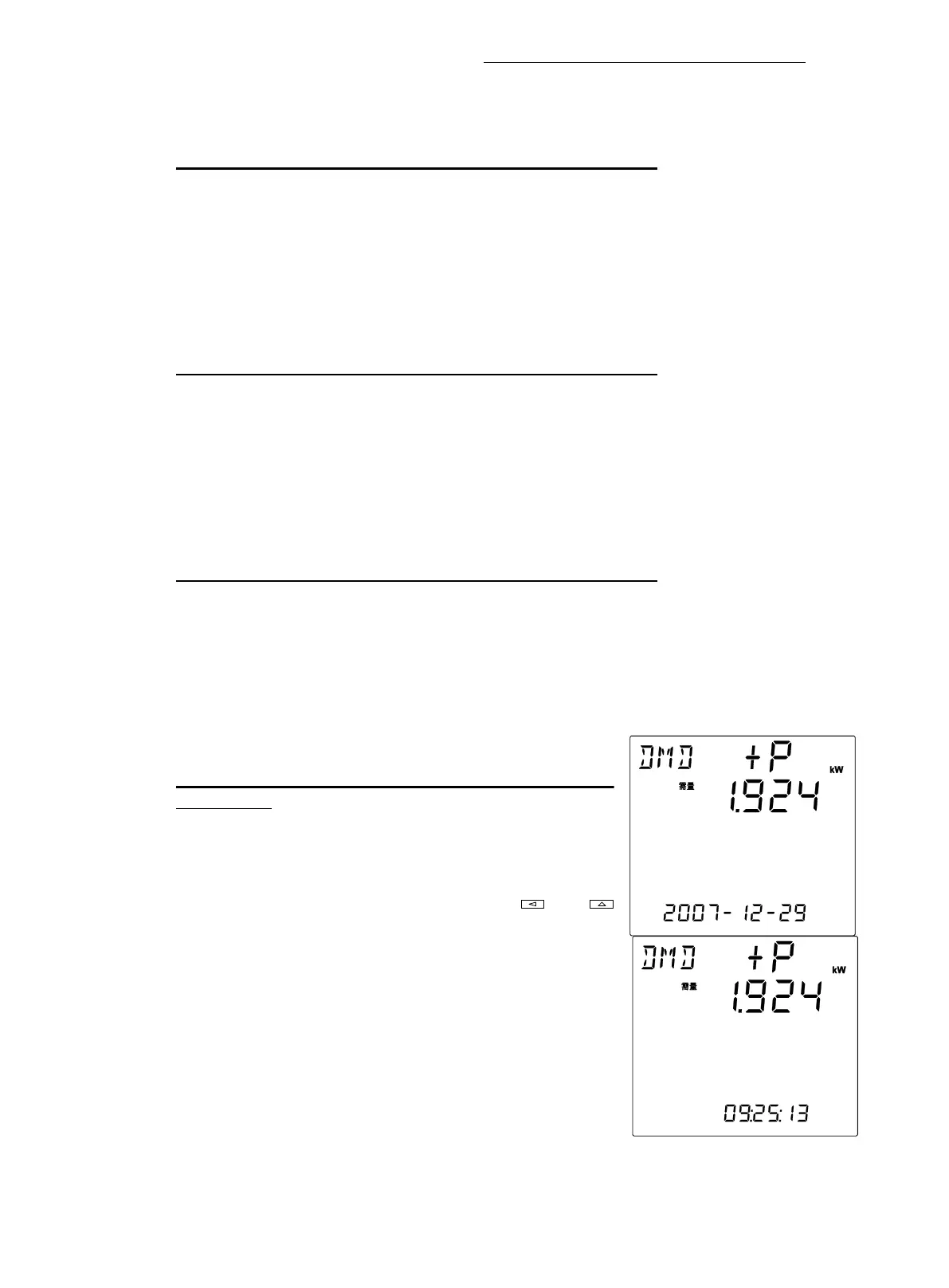

Fig.3-5-7 Maximum demand of
forward active power
of B-phase power, with an eleventh screen display similar.
Note: This screen displayed in the 3-phase 4-wire system only.
Screen 14
：
Minimum value of B-phase power
The screen displays the minimum value of B-phase power, the upper left
corner of the screen displays the word "Pb_min", indicates the minimum value of
B-phase power, with an eleventh screen display similar.
Note: This screen displayed in the 3-phase 4-wire system only.
Screen 15
：
Maximum value of C-phase power
The screen shows the maximum value of C-phase power, the upper left corner
of the screen displays the word "Pc_ max", represents the maximum value of
C-phase power, with an eleventh screen display similar.
Note: This screen displayed in the 3-phase 4-wire system only.
Screen 16
：
Minimum value of C-phase power
The screen displays the minimum value of C-phase power,, top left corner of
the screen displays the word "Pc_min", C represents the minimum value of
C-phase power,, with an eleventh screen display similar.
Note: This screen displayed in the 3-phase 4-wire
system only.
3.5.5. Inquiry maximum demand operating presentation
Enter the maximum demand mode, press or
buttons to page up and down to view; the occurrence time of
the maximum are flashing several second. Display time of
year - month - day and hours: minutes: seconds are displayed
alternately. The current maximum demand are viewed on a
demand period (15 minutes) statistics.
Screen 1 ： Maximum demand of forward active
power
