ABB LLT100 - Quick Setup Procedures; Default Factory Settings

OI-LLT100-EN Rev. D | User Guide 15
5.1 Introducing the default factory settings
The LLT100 is delivered with the following default settings:
Parameter Factory setting
Measurement mode Standard
Vessel height 200m
Vessel empty (LRV) 0.0
Vessel full (URV) Vessel height
Damping 1 second
No-measurement period 15 seconds
4 – 20mA output (PV) Level
PV unit Meter
LLT100 failure (alarm) High (21 mA)
5 Quick setup

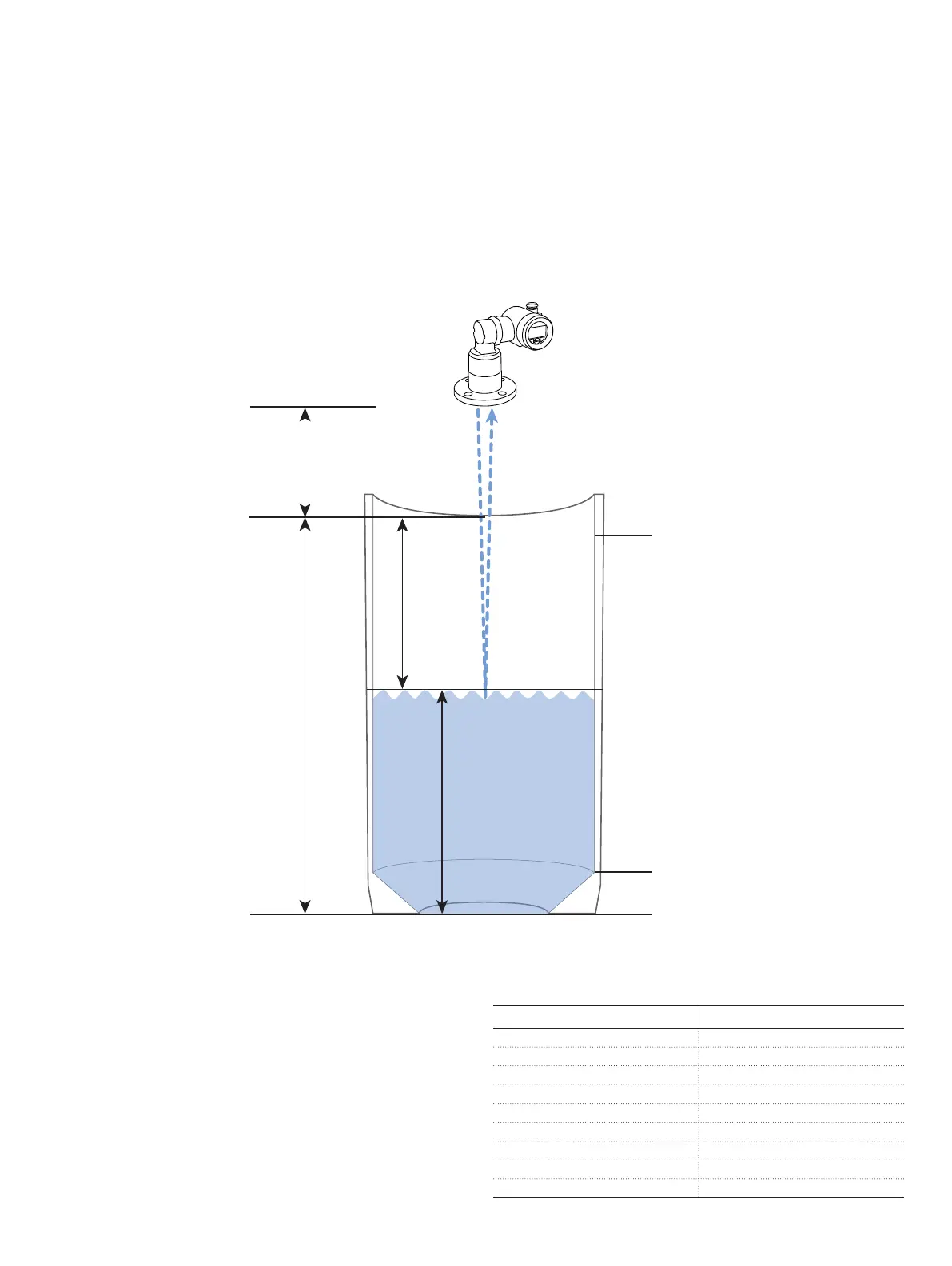

Figure 15 General model
Sensor offset
Vessel height
Vessel full (URV)
Vessel empty (LRV)
Ullage
Level
The LLT100 can be configured with the integrated, keypad-
controlled and menu-driven LCD user interface.
Before setting up your LLT100 instrument, it is important to
know which value is associated with which setting. Figure 15
illustrates these values and settings.
