LLT100
Laser level transmitter
Adjustable pivot bracket
The adjustable pivot bracket simplifies installation of the
LLT100 at an angle.

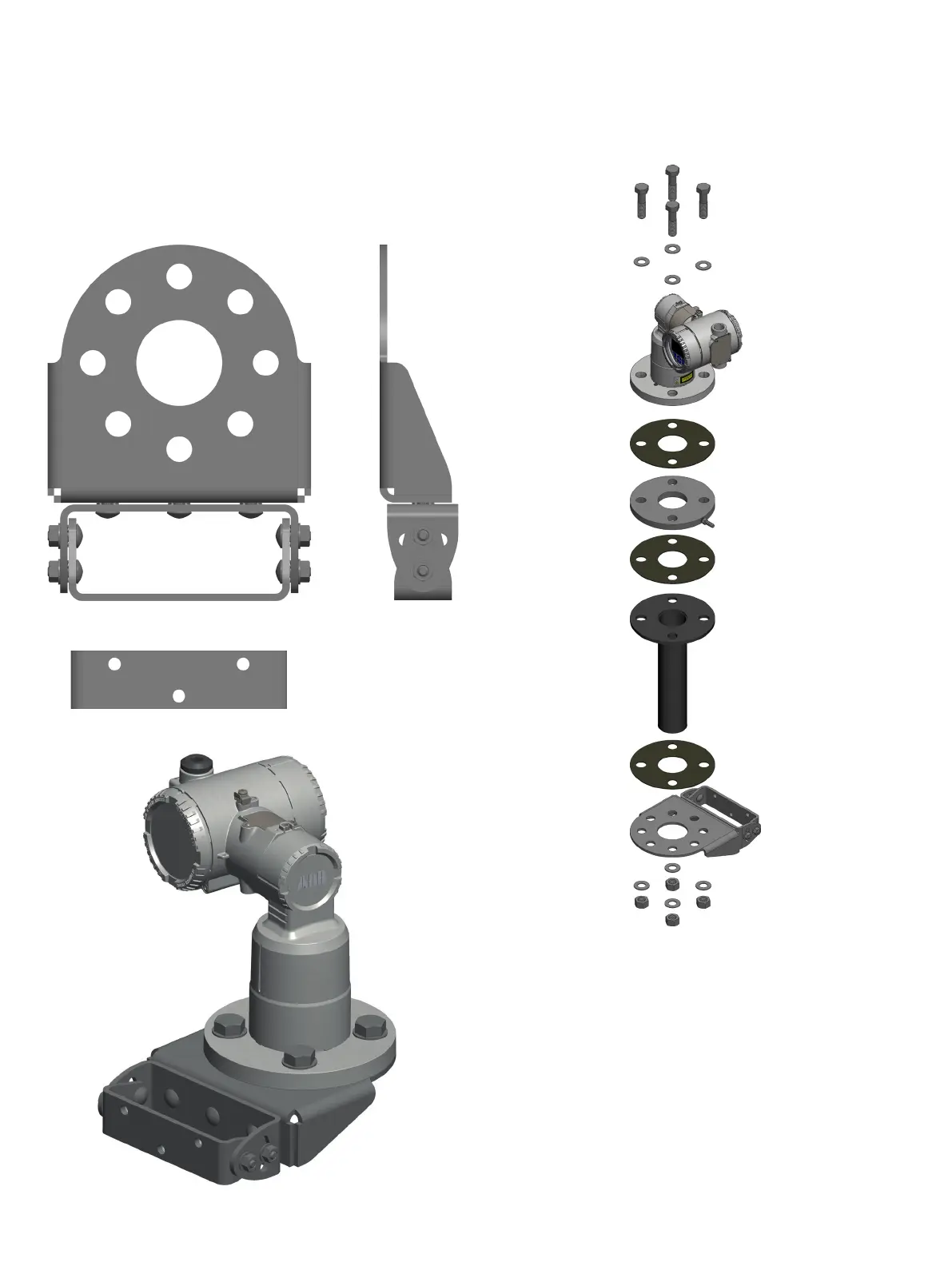

Figure 45 Adjustable pivot bracket
Figure 46 LLT100 on adjustable pivot bracket
Figure 47 Typical LLT100 installation in dusty environments
