MegaFlex 1000 to 1600 UPS User Manual / REV-A
6 LCD screen
Composed of an LCD color “Touch Screen” which provides the following information to users:
• Synoptic diagram indicating UPS status.
• UPS operating, AC and DC metering information.
• History of events (alarms and messages).
• Functionality can be programmed to meet customer needs by changing parameters.
• Operation commands of the UPS.

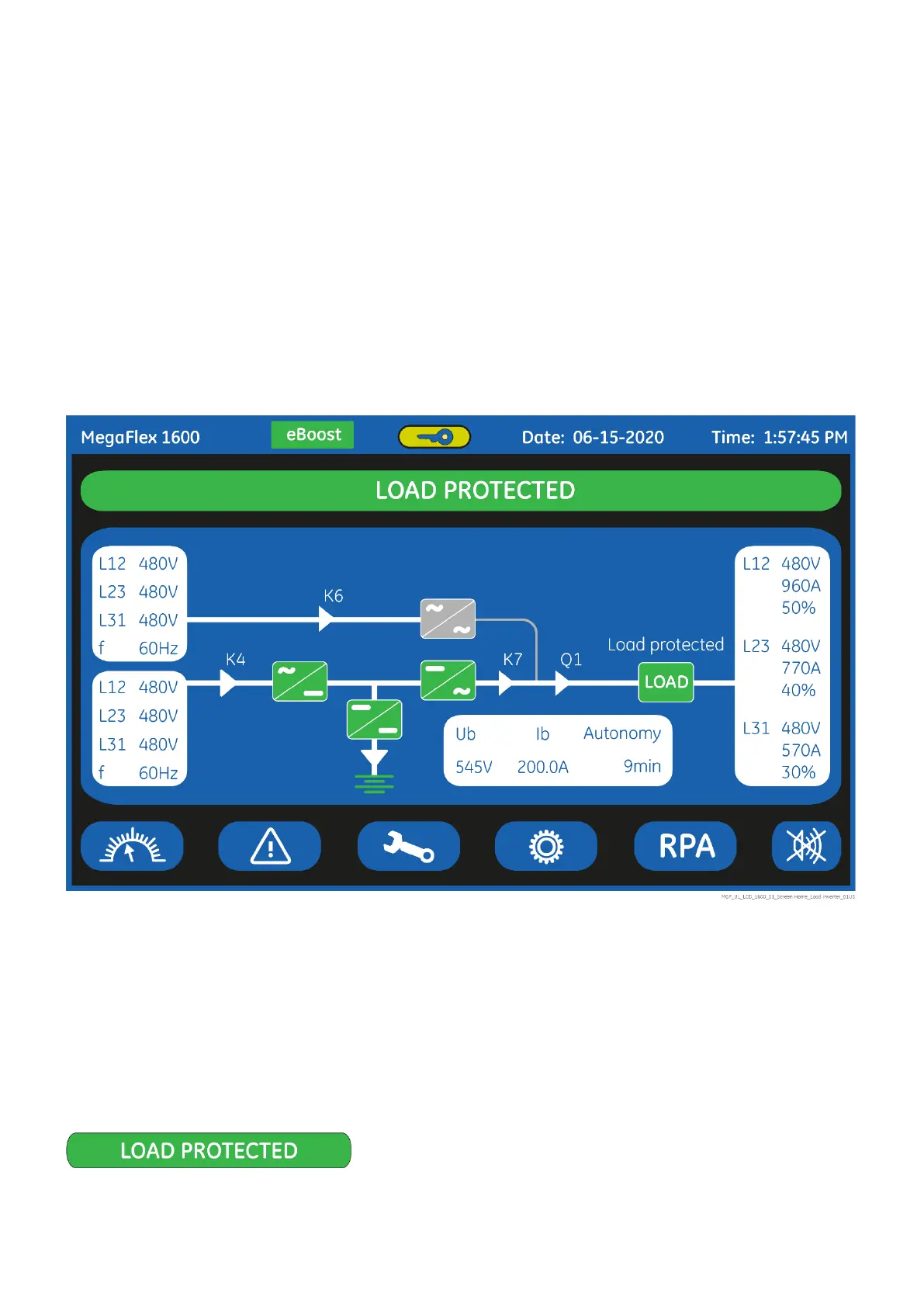

6.1 Home screen
The LCD screen, after 5 minutes of inactivity, shuts down the backlight.
To reactivate it, it is sufficient to press any keys mentioned to Section 6.1.1.
If the keypad remains inactive for 5 minutes or longer, during the viewing of a screen such as MEASURES, EVENTS,
SETUP, RPA Parallel System or COMMANDS, the LCD screen returns automatically to the main screen.
Pressing the key “UPS status” for a few seconds automatically sets
the “ENGLISH” language on the LCD screen.
