MegaFlex 1000 to 1600 UPS User Manual / REV-A

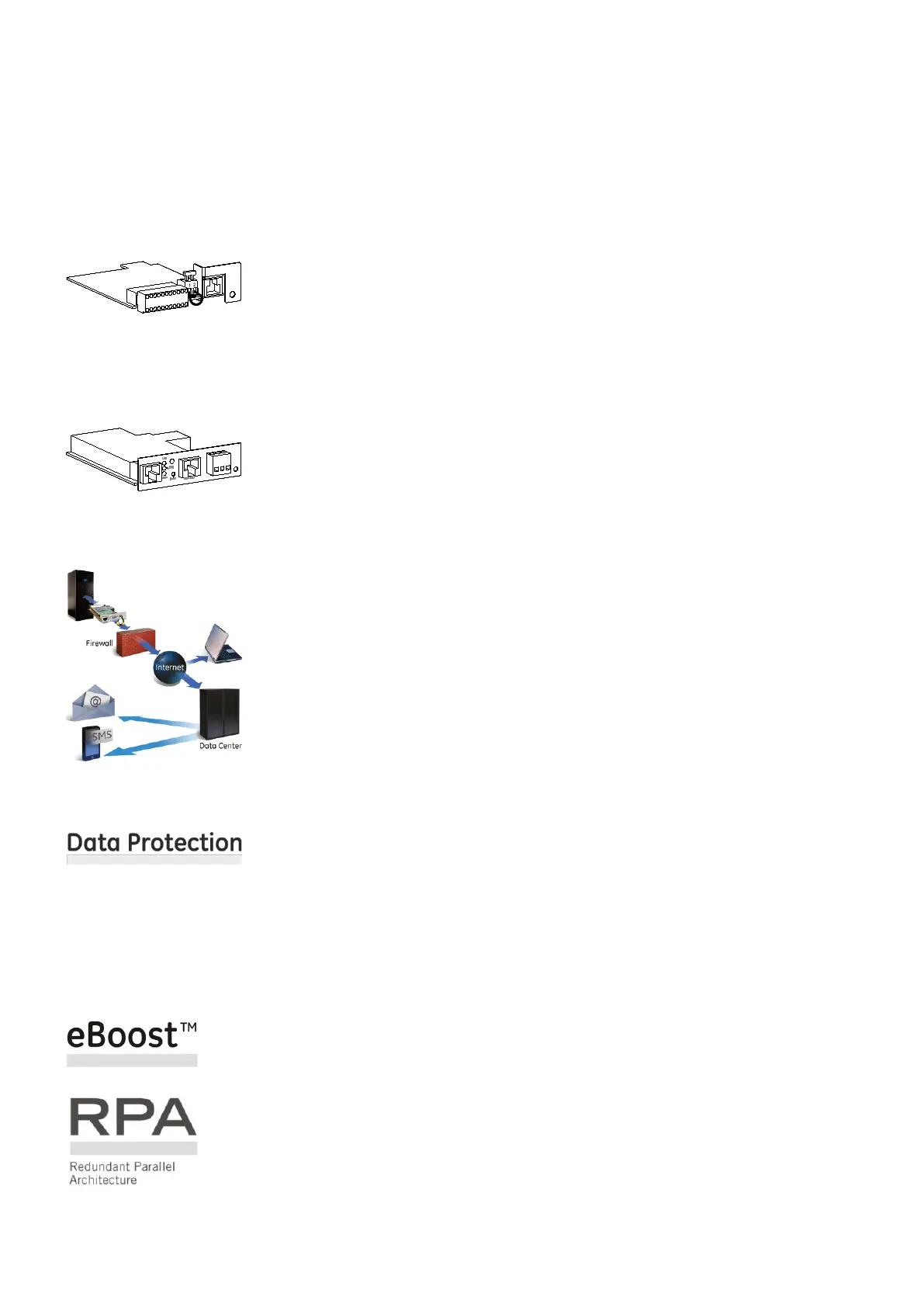

8 Options
8.1 Connectivity options
Additional Customer Interface Board
The Customer Interface
allows the client the exchange of information (monitoring and
control) with the following interfaces:
- Connector RJ45 for a serial port RS232 / sub DB9 connection.
- 6 programmable output channels.
- 2 programmable input channels, of which one for GEN-ON.
- EPO (Emergency Power Off).
3-ph SNMP/WEB plug-in adapter
SNMP - Simple Network Management Protocol
The 3-ph SNMP/WEB plug-in adapter is an interface to the Ethernet Network and provides
UPS information via the standard SNMP Protocol (UPS-MIB (RFC-
1628); Single MIB;
Parallel MIB).
The UPS can therefore be managed by a Network Management System (NMS) or by our
applications (for instance iUPSGuard or Data Protection), which uses this information to
determine the state of the UPS in order to guarantee safe and orderly shut-down of the
server, when needed.
iUPSGuard
iUPSGuard is a remote monitoring solution for UPS, providing status monitoring and
alarm notification that supports all ABB UPS product lines, anytime, anywhere.
iUPSGuard provides current and detailed information about UPS operation, including its
configuration, internal alarms and operating conditions over web.
iUPSGuard notifies personnel of critical al
arms and events via email or SMS, allowing a
user or ABB Technician to make timely decisions on critical conditions.
In addition, comprehensive data collection and analysis improves diagnostics capability
and enhances response time.
Continuous
monitoring and ongoing maintenance help ensure maximum performance
of your UPS equipment as it protects business critical applications.
Data Protection
Data Protection software can communicate with the UPS over RS-232, USB or SNMP to
receive status information and measurement values of the UPS. In case of a critical
condition (time on Battery, remaining Battery autonomy time or low Battery
) for the
Load, the software starts a controlled shut-down.
An enhanced alarm management system provides the possibility to start applications,
send messages and send e-mails for every upcoming or disappearing alarm.
8.2 Options in UPS cabinet
eBoost™ Operation Mode
High
efficiency operating mode, where the load is supplied directly by Utility and
automatically transferred to Inverter if the voltage is out of prescribed tolerances.
RPA Kit
Redundant Parallel Architecture
Allows extending the unit to a parallel system with 2, 3, 4, 5 or 6 units connected on the
same bus, which ensure the highest reliability rate and increase the power availability
without prior investments.
17
13
12
1
15
14
2
16
22
20
18
19
21
4
6
5
3
11
7
8
10
9
CNT_CI IM0171_01
OPT_SNMP Card_01
