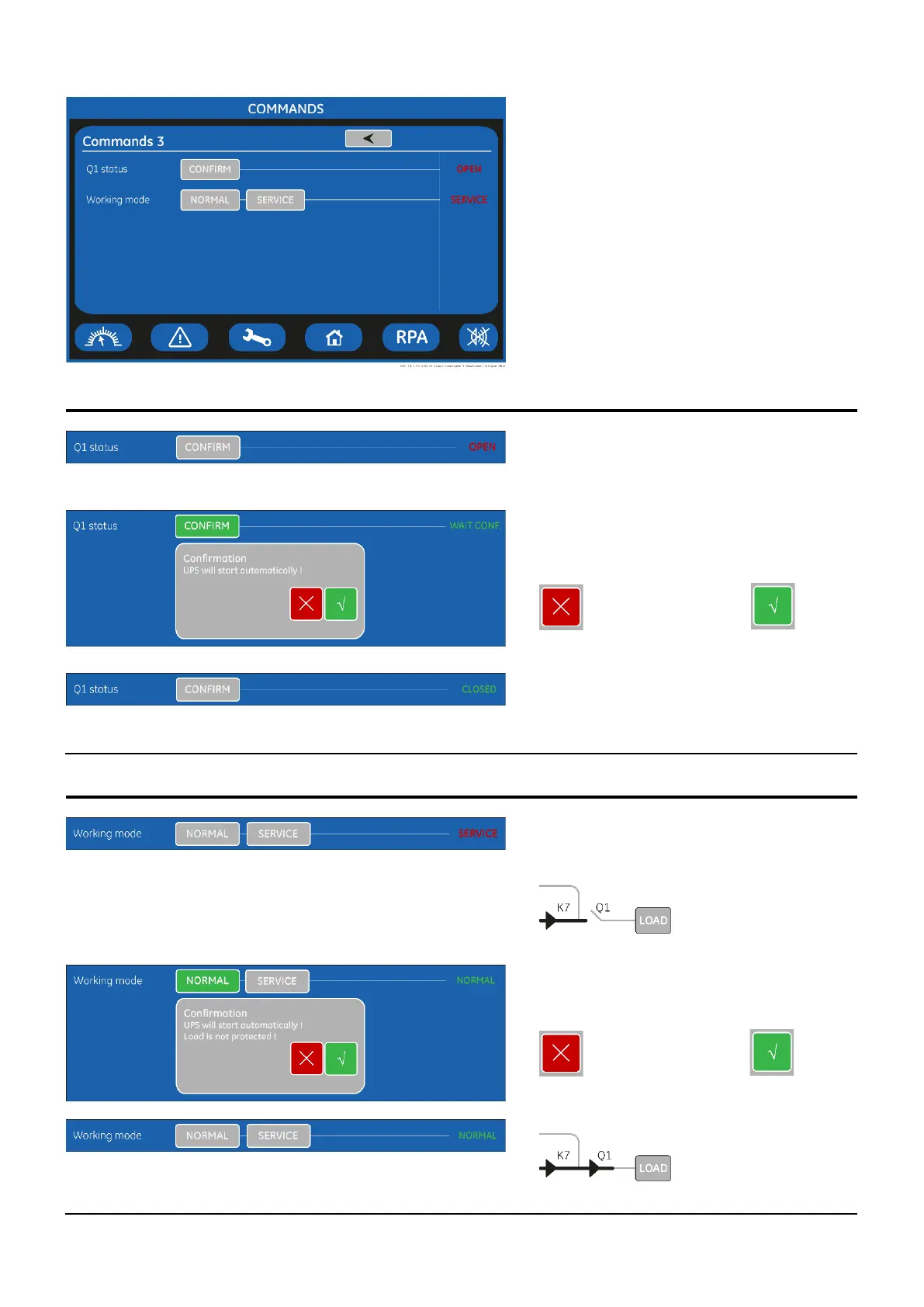

Commands 3 screen
Allows the user to execute UPS operation
commands.
Q1 status
Indicates the
“Q1 – External UPS Output
Circuit Breaker” status: OPEN.
Q1 CONFIRM
Command to confirm that the
“Q1 –
External
UPS Output Circuit Breaker” has been closed.
Touch ESC
Touch confirm
Q1 STATUS
Indicates the
“Q1 – External UPS Output
Circuit Breaker” status: CLOSED.
Working mode
Indicates the UPS working mode
In “SERVICE mode” the
“
Q1 –
External UPS
Output
Circuit
Breaker” is open.
Working mode to NORMAL
Indicates the UPS working in NORMAL mode.
Touch ESC
Touch confirm
In “NORMAL mode”
the
“Q1 –
External UPS
Output
Circuit
Breaker” is closed.
