Chapter 4 – Electrical Installation
4-2 NCAN-02 Installation and Start-up Guide
DIP Switch Settings
The DIP switches SW1 and SW2 on the NCAN printed circuit board
can be used to select the node number and the baud rate for the
module.
Setting switch SW1:8 to ON enables DIP switch selection. In this case,
the corresponding selection parameters (in the fieldbus parameter
group; see Chapter 5) only act as read-only indicators.
If SW1:8 is set to OFF (default), the node number and the baud rate
are selected through module parameters (see Chapter 5).

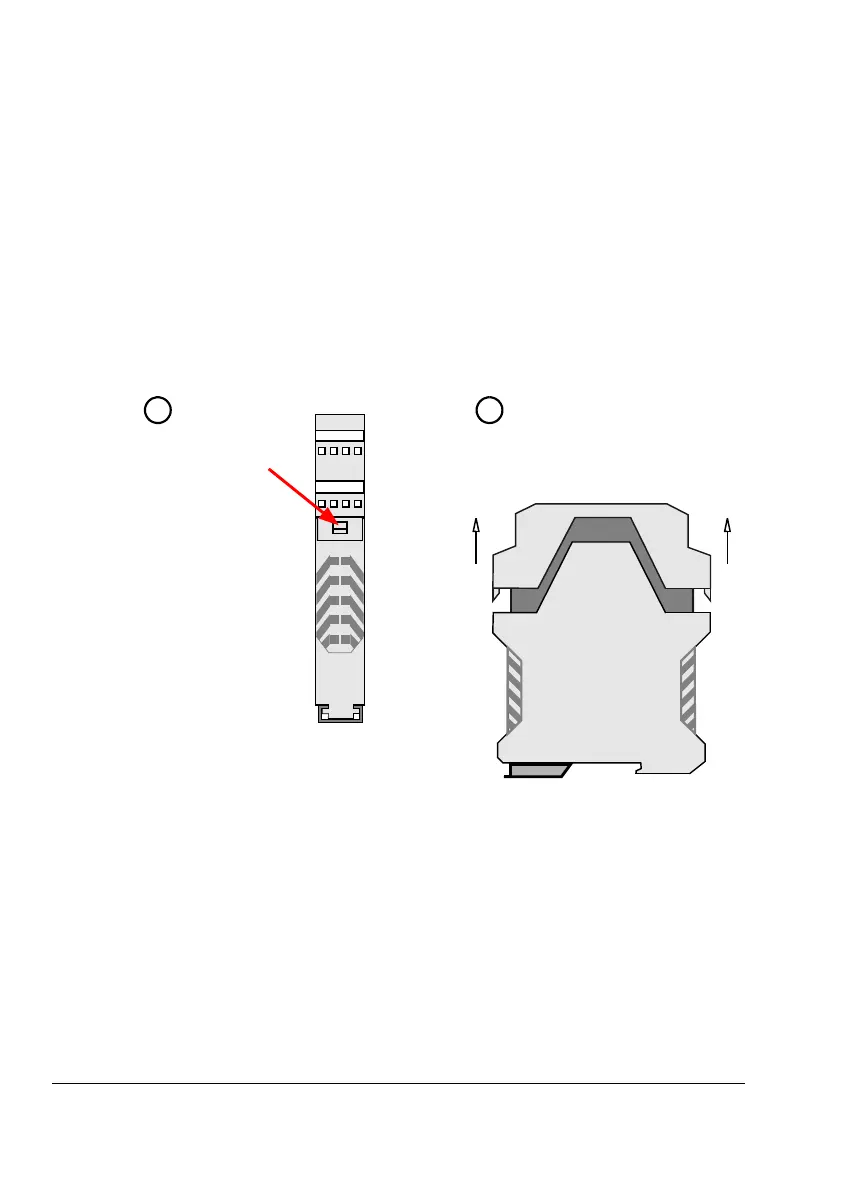

The figures below show how the DIP switches on the circuit board can
be accessed.
1234
5
678
Press down the
clips on top
and bottom of
the module.
Pull the PCB outwards.
(Stoppers prevent the PCB from
being completely removed.)
1 2
Bottom View
Side View
