Section 2 Interface specications
Console
Electrical specication USB 2.0 device interface
Data rate High speed 480mbit/s
Circuit type SELV
Maximum supply current 100 mA
Isolation to All other except USB
Galvanic connection to USB
Connection USB Micro-B connector
in device mode
The console port can be used to connect to the CLI
(Command Line Interface). The console connector is a
micro USB cable that connects to a FTDI FT232R USB
to serial converter internally. For drivers please see www.
ftdichip.com and download the appropriate VCP driver.

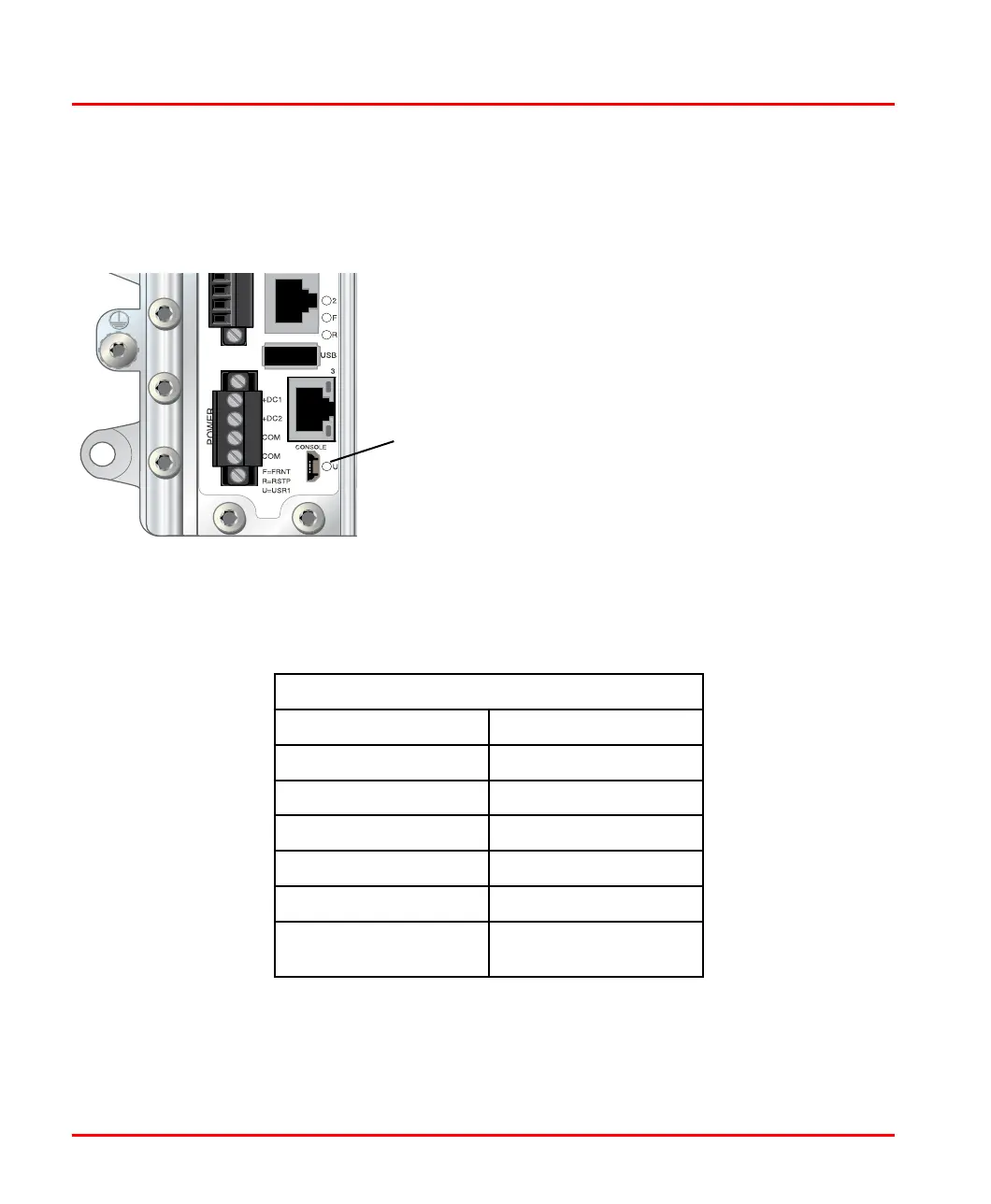

Connection to Console Port
Figure 3.Connection to Console Port
