ABB NE870 - I;O Connection

1
2
3
4
1
2
3
4
4-position Product marking Direction Description
No. 1 +DC1 Input Supply voltage input DC1
No. 2 +DC2 Input Supply voltage input DC2
No. 3 -COM Input Common
No. 4 -COM Input Common
4-position Product marking Direction Description
No. 1
Status + Output Alarm relay (status) contact
No. 2
Status – Output Alarm relay (status) contact
No. 3
Digital In +
Input
Digital in +
No. 4
Digital In –
Input
Digital in –
3BSE083159 17
Section 2 Interface specications

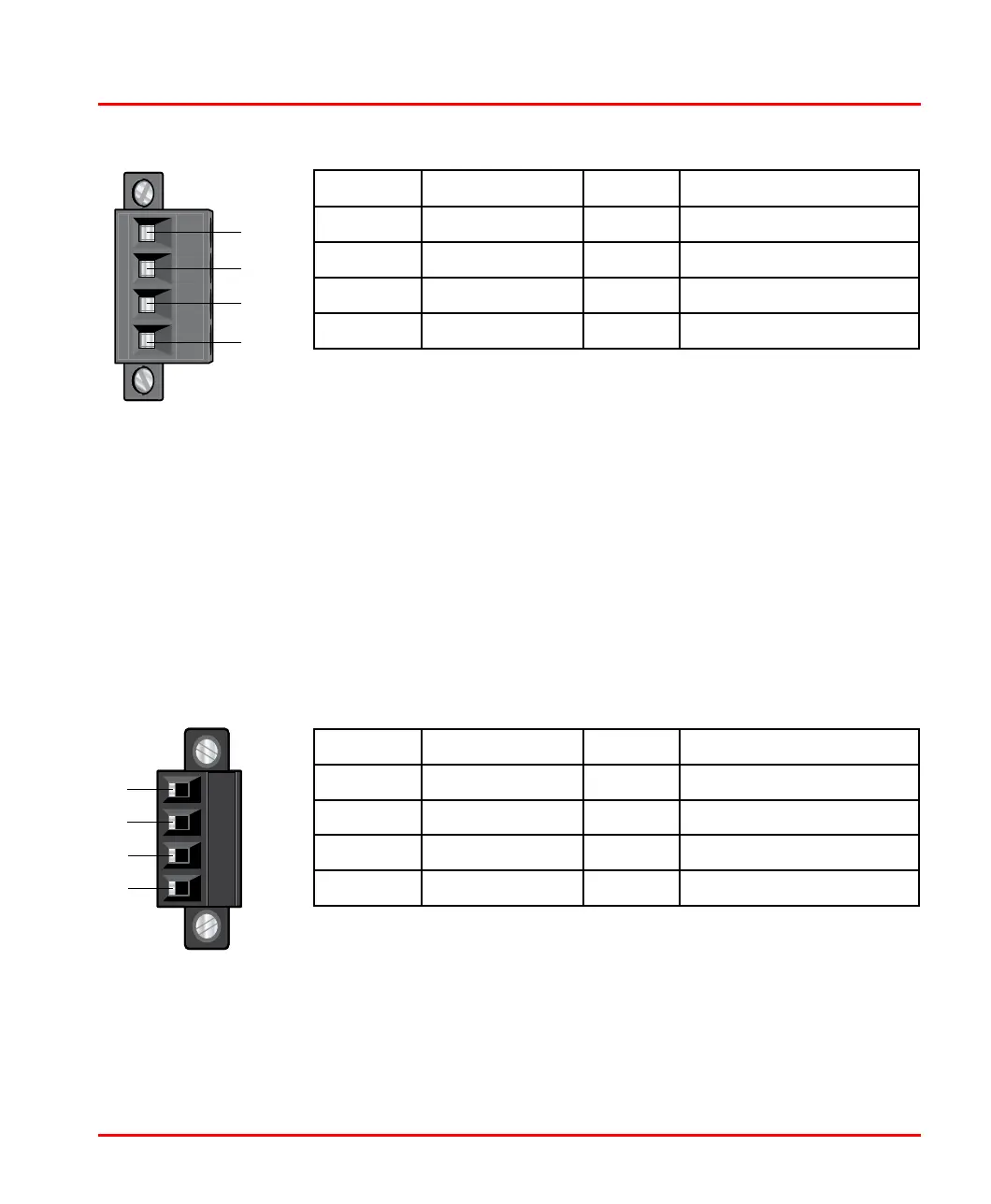

Figure 5. Power Connections
I/O Connection
The Status output is a potential free, opto-isolated normally closed solid-state relay.
This can be congured to monitor various alarm events within the NE870 unit, see
ABB NEOS User Manual. An external load in series with an external voltage source
is required for proper functionality. For voltage/current ratings, see “Section 2
Interface specications” section.
Figure 6. I/O Connection
