3BSE08315924
Section 3 Interface Modules

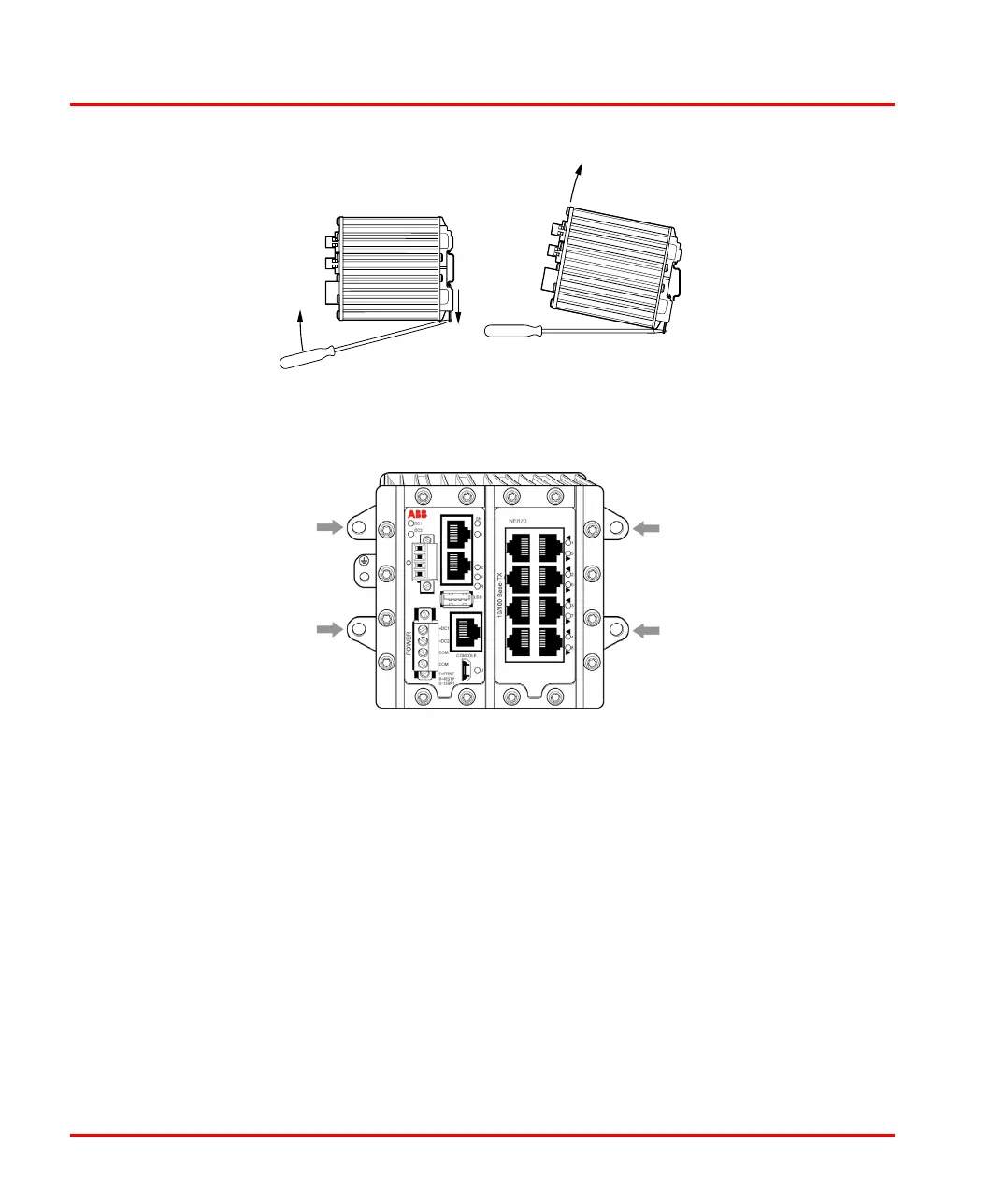

Figure 11. Removing 35 mm DIN-rail
Figure 12. Wall Mounting the Unit
Earth Connection
For correct function the ground connection on the unit needs to be properly
connected to a solid ground as shown in “Figure 13. Earth Connection”.
Cooling
This unit uses convection cooling. To avoid obstructing the airow around the unit,
use the following spacing rules. Minimum spacing 25 mm (1.0 inch) above /below
and 10 mm (0.4 inches) left /right the unit.
