Galvanically isolated via signal transformers and
capacitively isolated to GND/PE through a 2kV 1000pF
capacitor. See user manual for proven transient protection.
3BSE08315930
Section 3 Interface Modules

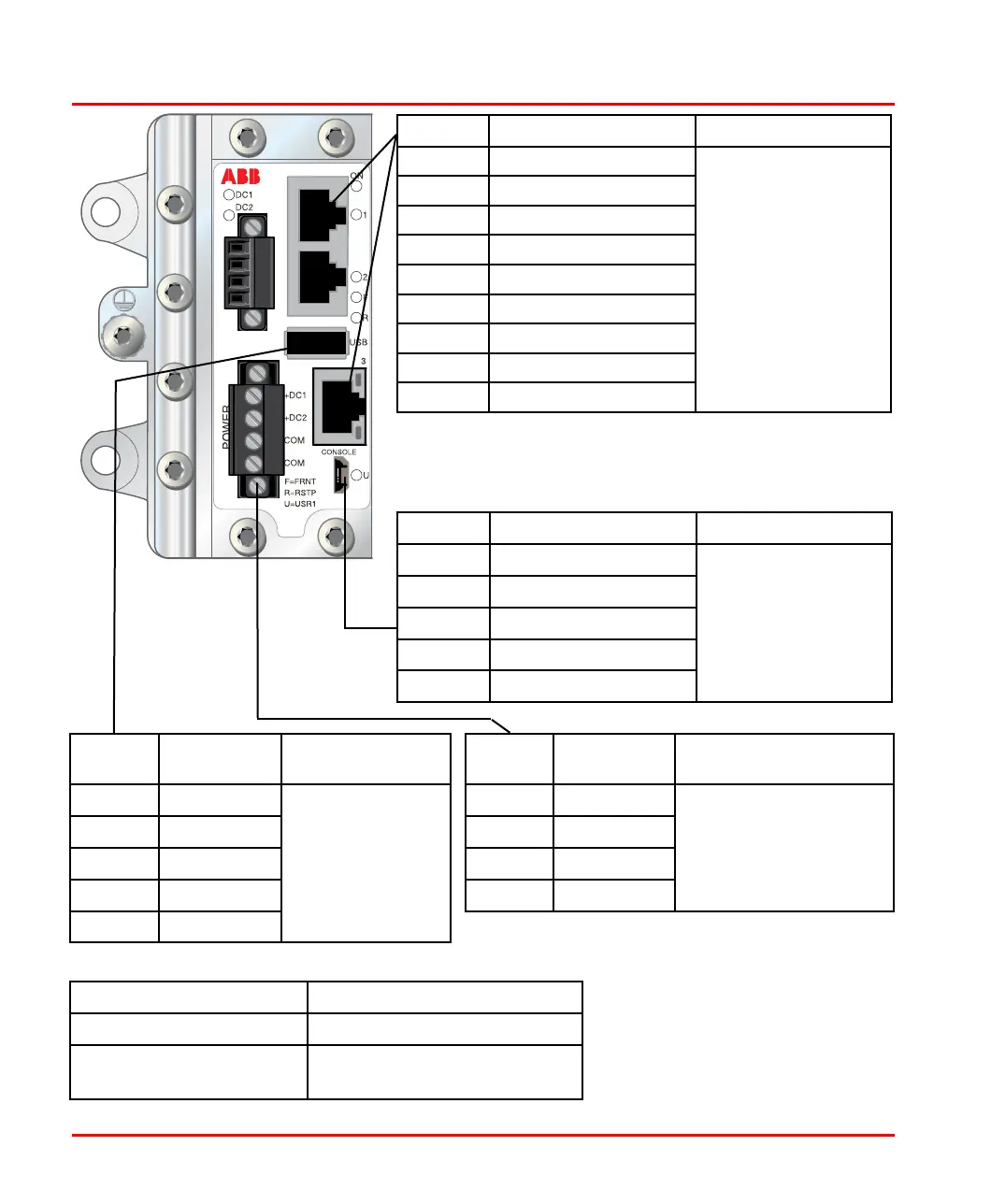

Position Direction/description Input/Output values
1 In/Out / BI_DA+ Per port:
U = ± 1 V (4V/us)
I = ± 20 mA
Data rate:
10/100/1000 Mbit/s
2 In/Out / BI_DA–
3 In/Out / BI_DB+
4 In/Out / BI_DC+
5 In/Out / BI_DC–
6 In/Out / BI_DB–
7 In/Out / BI_DD+
8 In/Out / BI_DD–
Shield PE
Position Direction/description Input/Output values
1 In/Vbus U = 5V VDC max
I = 100 mA max
2 In/Out D-
3 In/Out D+
4 Not connected
5 GND
Position
Direction/
description
Output values
1 Out / VBUS U
out
= 5 VDC max
I
out
= 500 mA max
2 In/Out / D–
3 In/Out / D+
4 GND
Shield PE
Position
Direction/
description
Output values
1 In / +DC1 U
in
= (16 – 60) VDC
I
in
= 2.0 A @ 16 VDC
P
In
= 31.5 W @ 16 VDC
2 In / +DC2
3 In / COM
4 In / COM
Degree of protection IP 40
Ambient temperature –40°C to +70°C
Installation spacing
Minimum 25 mm above/below
Minimum 10 mm left/right
