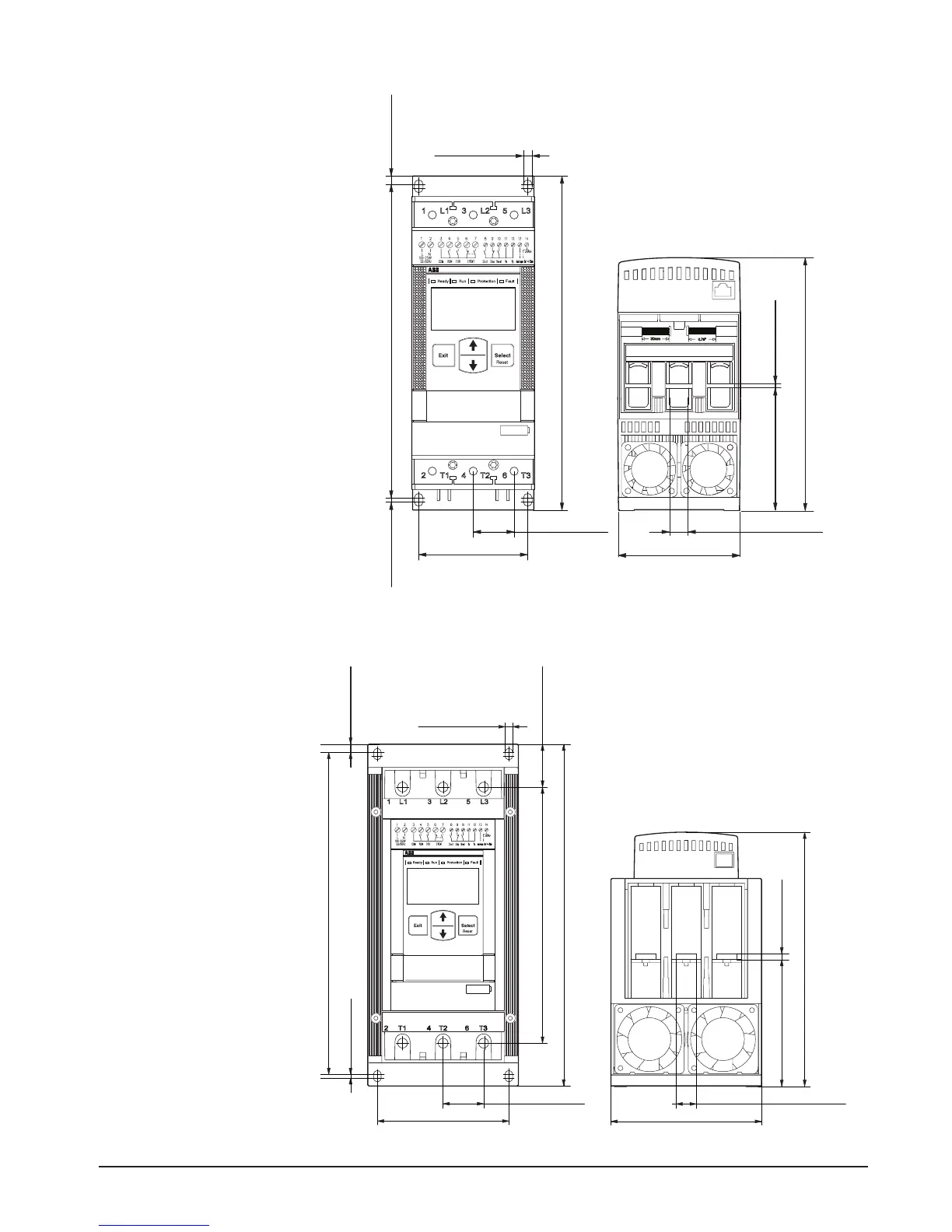

3.7.6 Dimensions
Dimensions PSE 18...105
Dimensions PSE 142...170
PSE 18-600-70
230 mm (9.055 in)
245 mm (9.645 in)
6 mm (0.236 in)
3 mm (0.118 in)
6,5 mm (0.256 in)
30 mm (1.181 in)
80 mm (3.150 in)
90 mm (3.543 in)
13 mm (0.512 in)
185,5 mm (7.303 in)
90 mm (3.543 in)3 mm (0.118 in)
1SFC132259F0001
PSE142-600-70
278 mm (10.947 in)
295 mm (11.614 in)
1SFC132260F0001
109,5 mm (4.311 in)
219,5 mm (8.642 in)
5 mm (0.197 in)
7 mm (0.276 in)
221 mm (8.701 in)
37 mm (1.457 in)
3 mm (0.118 in)
130 mm (5.118 in)
17,5 mm (0.689 in)
6,5 mm (0.256 in)
113,5 mm (4.468 in)
35 mm (1.378 in)
