ABB PSE 45 - Drilling Plan

Softstarters Type PSE18...PSE370 Installation and commissioning manual 1SFC132057M0201 25 Chapter 3
PSE 142-600-70
113,5 mm
(4.468 in)
278 mm (10.945 in)
M6 (1/4 in)
1SFC132272F0001
230 mm (9.055 in)
1SFC132271F0001
80 mm
(3.150 in)
M6 (1/4 in)

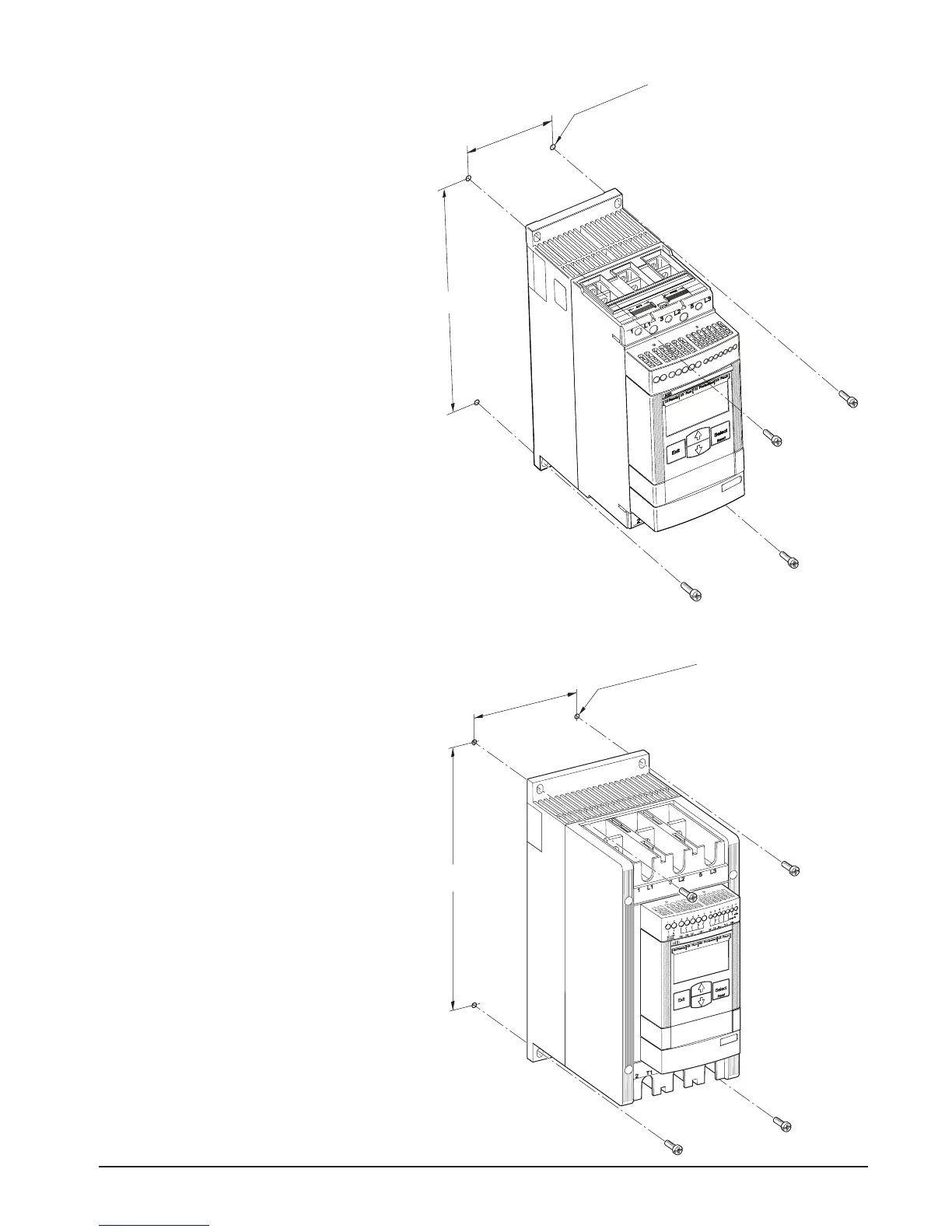

3.7.7 Drilling plan
Drilling plan PSE142...170
Drilling plan PSE 18...105
