7.7.2 PSE parameter
This parameter contains information about the type of PSE Softstarter which is
available. The PSE parameter must be congured after replacing the PCB. This
parameter must not be changed if the PCB has not been replaced. Read chap-
ter 3.3 Type designation to get information about how to nd out the size of the
softstarter.
Start from Information Level and press in sequence the keys Exit, Select and Ar-
row Up for a few seconds, see gure 7.31. The text string “Id” will be displayed on
the LCD as in gure 7.36.
Press Select to enter parameter PSE, and the text string “Id” the LCD starts ash-
ing.
Press Exit to return to Information level or Scroll to congure according to the
softstarters size. Press Select to conrm.
Congure parameter PSE only if the printed circuit board has been replaced.

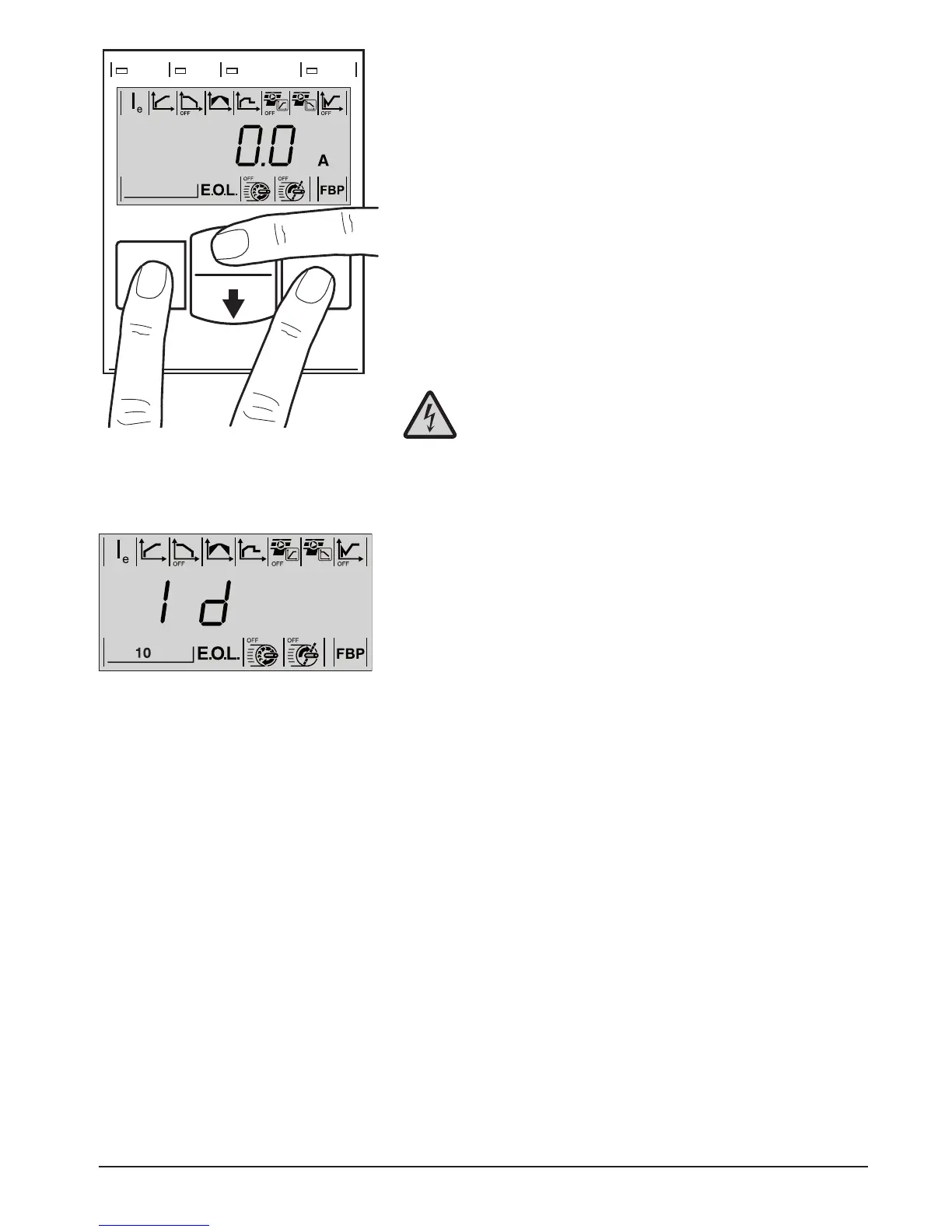

Figure 7.35: Entering PSE parameter
Ready Run
Exit
Select
Reset
Protection
Fault
Figure 7.36: PSE parameter displayed
