Figure 48: Numeral setting
48
1SFC132081M0201
Local PSTX30
Motor rated current Ie
30.0 A
0.0 0.0
Cancel 12:00 Save

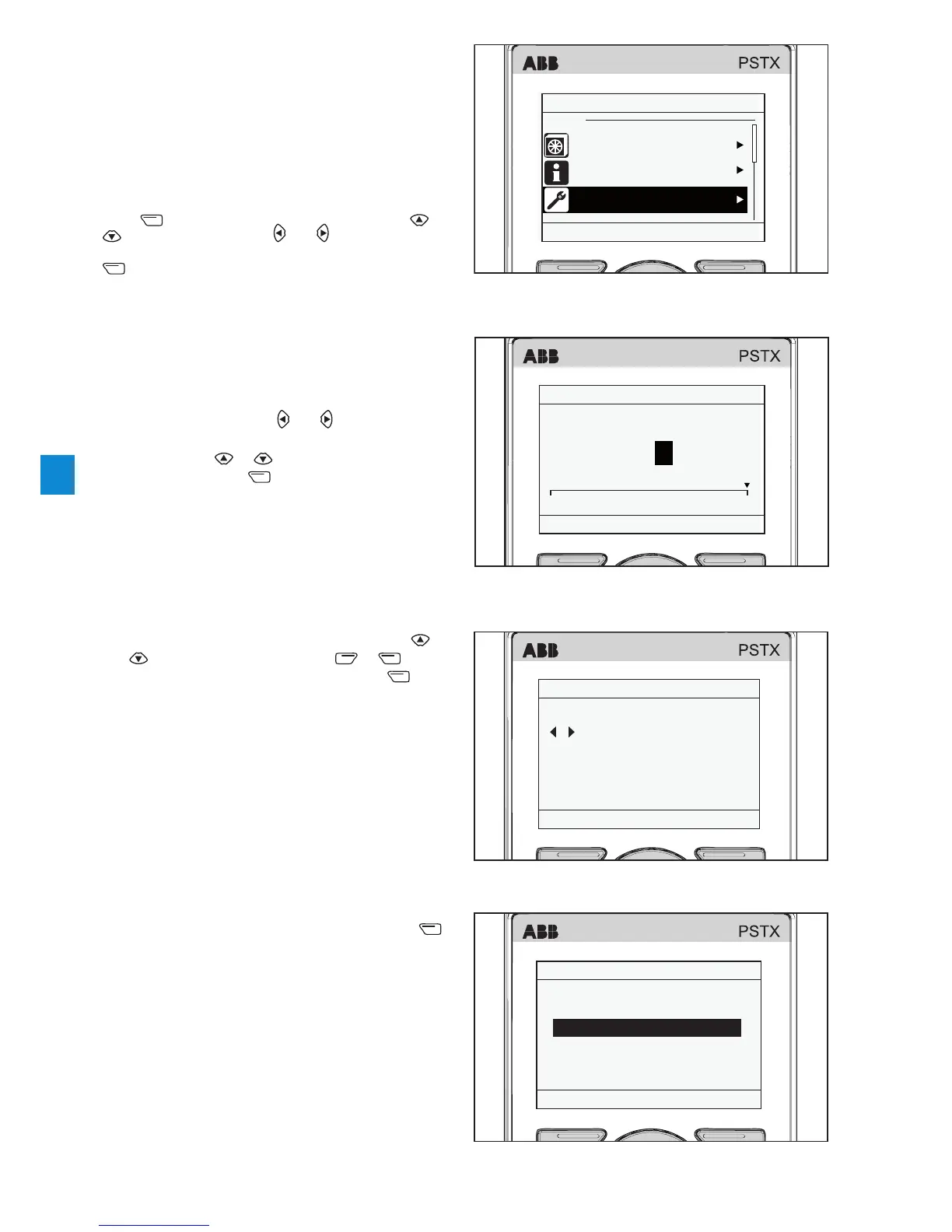

6.1.3 Navigation screen
With the keypad, settings can be set individualy or
as a selection of predefined parameters for different
applications. The default parameter set is stored in the
unit for a possible reset to default values. When the
fieldbus communication is selected, parameters can also
be modified from this interface.
Press “Menu“ to go to the menu and then use and
to select parameter and and to select menu. The
selected parameter is then highlighted black. Press the
“Select“ to make your selection.
See Figure 47.
6.1.3.1
Edit parameter values
The numerical setting
Use the numerical setting when a numerical value is to
be set in the softstarter. Use
and on the Navigation
keys to select number, the selected number is highlighted
black. Then Press
or to change the value of the
selected number. Press
“Save” to save.
See Figure 48.
On/off switch
Select 1 or 0 (on or off) with the on/off switch. Use
and on the Navigation keys. Press or to
change the value of the selected switch. Press
“Save”
to save. See Figure 49.
Selection list
Use the Navigation keys to navigate up and down in the
lists. The selected option is highlighted black. Press
“Save” to save.
See Figure 50.
47
1SFC132081M0201
Local PSTX30
Menu
Backup handling
System info
Settings
Exit 12:00 Select
Figure 46: Navigation screen
49
1SFC132081M0201
Local PSTX30
Shunt fault event mask
1
0
0
0
0
Event group 0
Event group 1
Event group 2
Event group 3
Event group 4
Cancel 12:00 Save
Figure 49: Switch setting
Figure 50: Selection list
50
1SFC132081M0201
Local PSTX30
Current limit type
Off
Normal
Dual
Ramp
Cancel 12:00 Save
