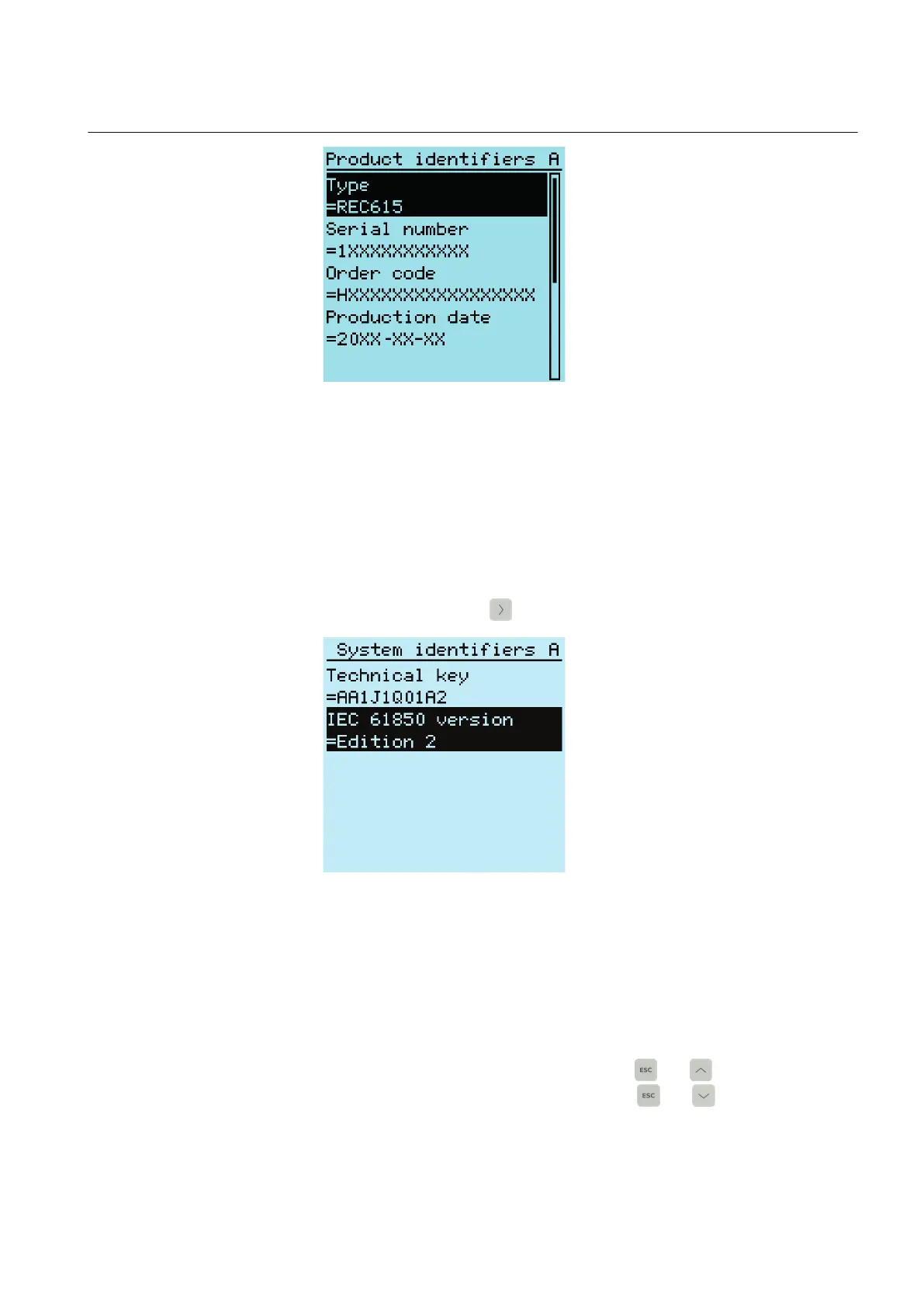

Figure 17: Protection relay information
4.1.5.1 Identifying relay's IEC 61850 version
The relay's IEC 61850 version information identifies if the relay is configured as
Edition 1 or Edition 2 device.
1. Select Main menu/Information/System identifiers.
2.
Enter the submenu with
.
GUID-E246D16B-3CD4-4563-A62A-91F117E22FEE V1 EN
Figure 18: Identifying IEC 61850 version
4.1.6 Adjusting the display contrast
Adjust the display contrast anywhere in the menu structure to obtain optimal
readability.
•
To increase the contrast, press simultaneously
and .
•
To decrease the contrast, press simultaneously and .
