6.4 Changing protection relay functionality
6.4.1 Defining the setting group
6.4.1.1 Activating a setting group
Protection relay settings are planned in advance for different operation conditions by
calculating setting values to different setting groups. The active setting group can be
changed by the protection relay application or manually from the menu.
1.
Select Main menu/Settings/Setting group/Active group and press
.
A071150 V3 EN

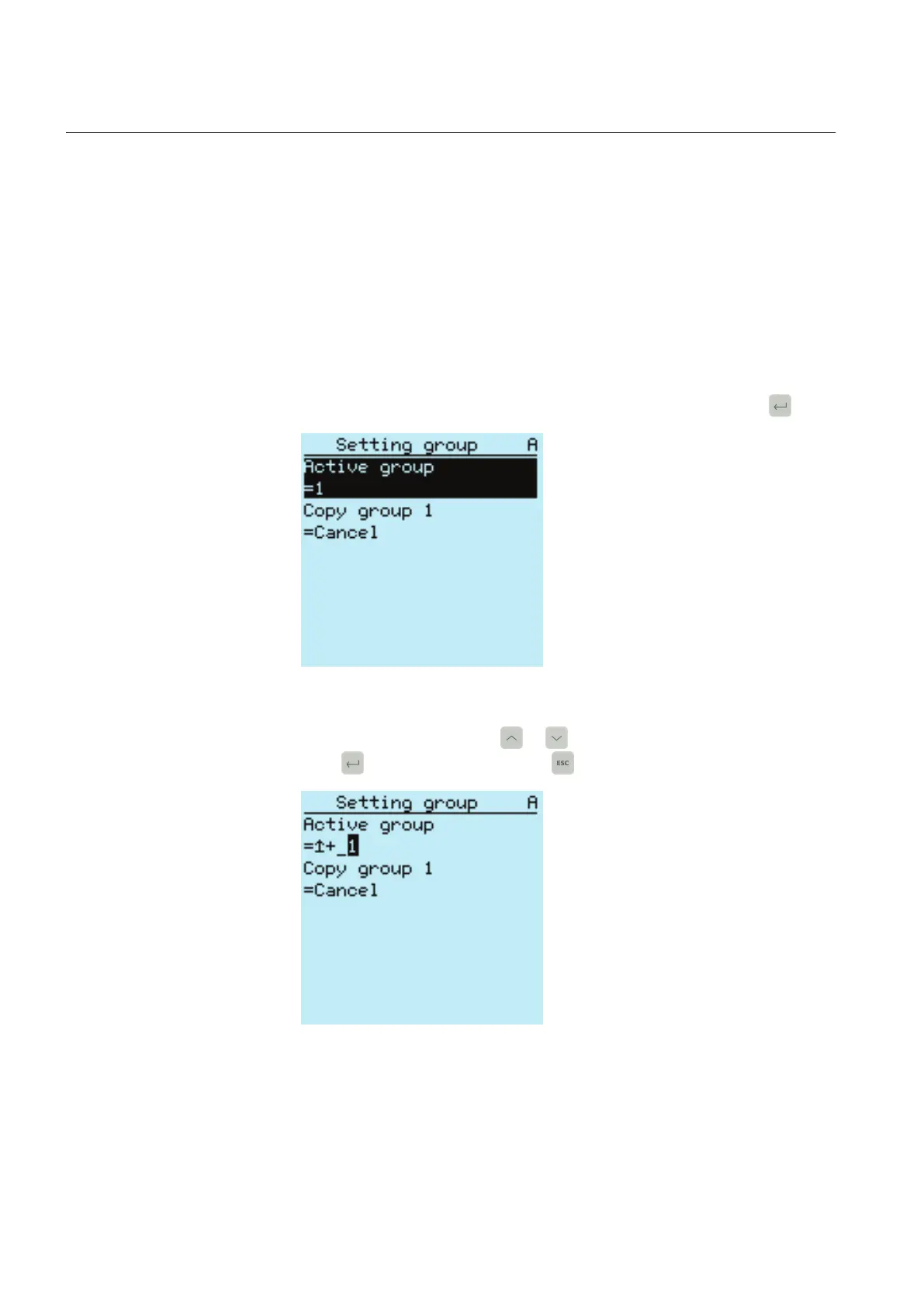

Figure 80: Active setting group
2.
Select the setting group with or .
3.
Press
to confirm the selection or to cancel.
A071152 V3 EN
Figure 81: Selecting the active setting group
4. Commit the settings.
