24
23
18
19
20
21
22
8 9 10 11 12 13 14 15
7
6
5
4
3
2
1
1716
IEC17000107-1-en.vsd
IEC17000107 V1 EN-US

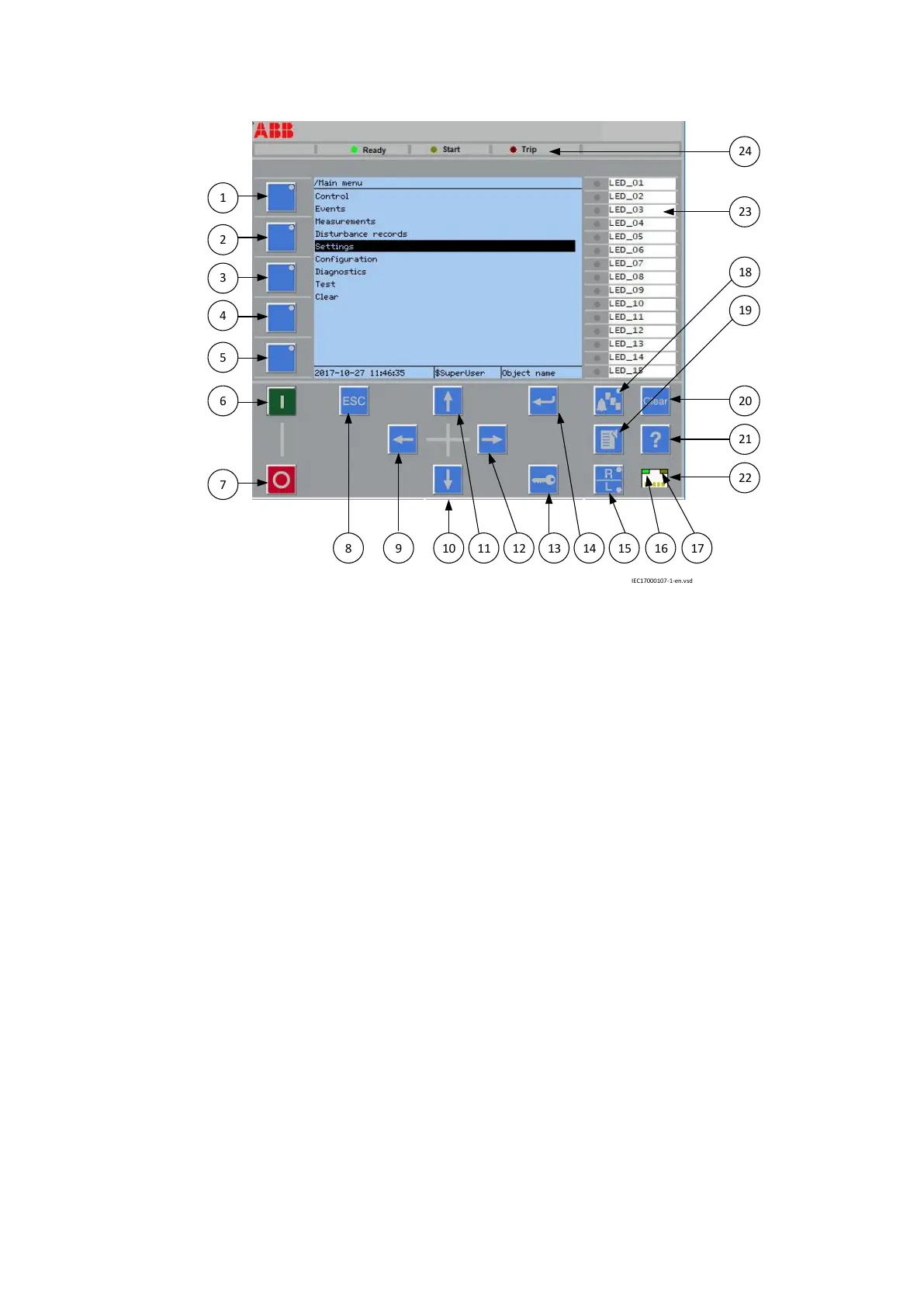

Figure 5: LHMI keypad with object control, navigation and command push-buttons and
RJ-45 communication port
1...5
Function button (Not in use for SAM600-IO with LHMI service kit)
6 Close (Not in use for SAM600-IO with LHMI service kit)
7 Open (Not in use for SAM600-IO with LHMI service kit)
8 Escape
9 Left
10 Down
11 Up
12 Right
13 Key
14 Enter
15 Remote/Local (Not in use for SAM600-IO with LHMI service kit)
16 Uplink LED
17 Not in use
18 Multipage (Not in use for SAM600-IO with LHMI service kit)
19 Menu
20 Clear
21 Help
22 Communication port
23 Programmable indication LEDs (Not in use for SAM600-IO with LHMI service kit)
24 IED status LEDs
1MRK 500 131-UEN Rev. C Section 4
Overview
Switchgear control unit SAM600-IO 17
Operation manual
© 2017 - 2021 Hitachi Power Grids. All rights reserved
