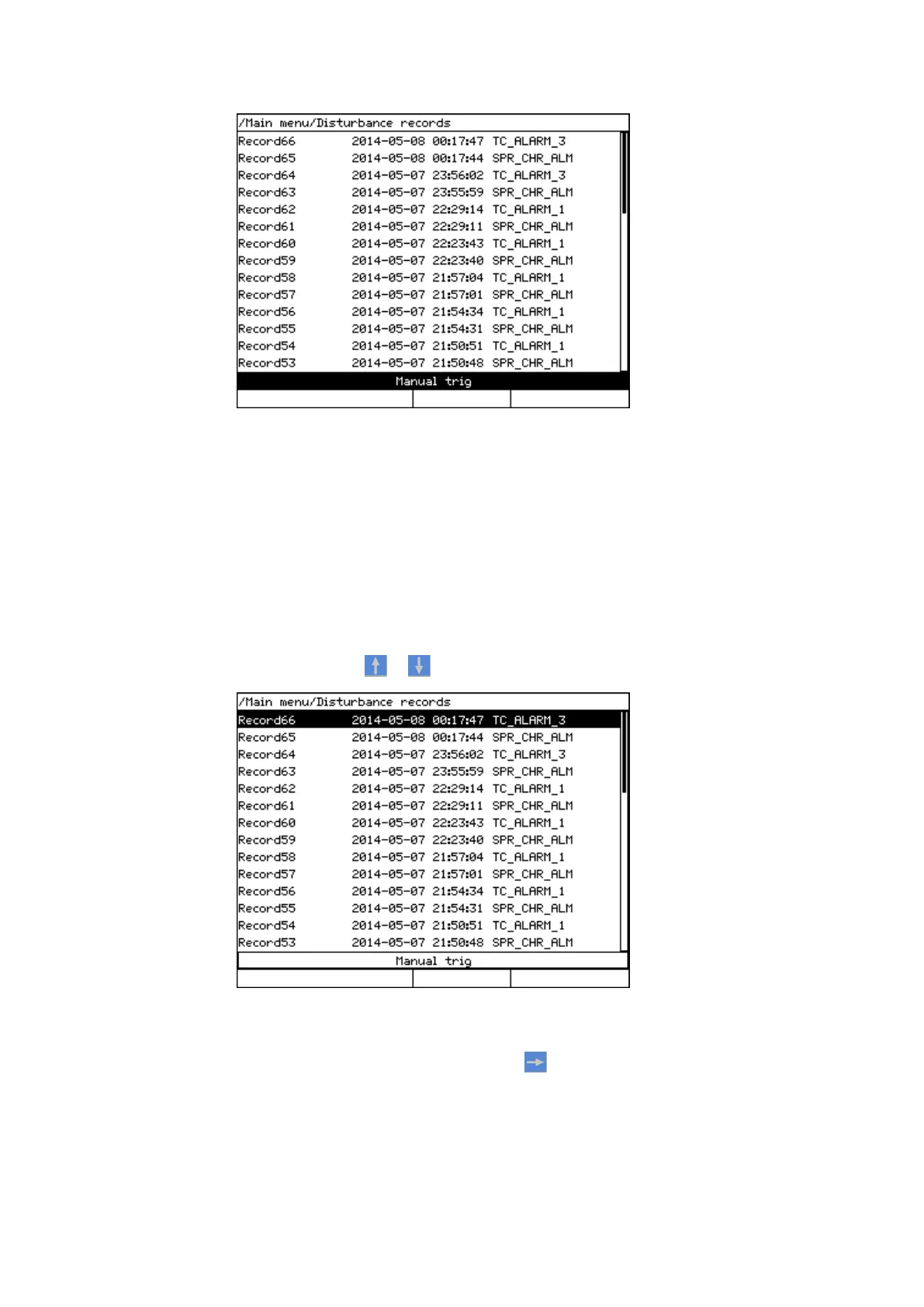

Figure 28: Manual triggering
The disturbance recorder is now triggered.
7.1.2.2 Monitoring disturbance recorder data
GUID-CBA8221F-A0F8-4043-98D7-577830F29F7F v6
Read individual disturbance recordings from the IED with the PCM600 software to monitor
disturbance recorder data.
1. Select Main menu /Disturbance records .
All disturbance records are listed.
2.
Scroll the view with
or .
IEC13000262-1-en.vsd
GUID-ACB5A57F-394B-475B-96C0-7C515A530D1F V1 EN-US
Figure 29: Monitoring disturbance recorder via the LHMI
3.
To view a specific disturbance record, press .
A list of detail categories is displayed.
