5.1.7.2 Scrolling the display
AMU0600414 v11
If a menu contains more rows than the display can show at a time, a scroll bar is displayed on the
right.
IEC17000243-1-en.vsd
IEC17000243 V1 EN-US

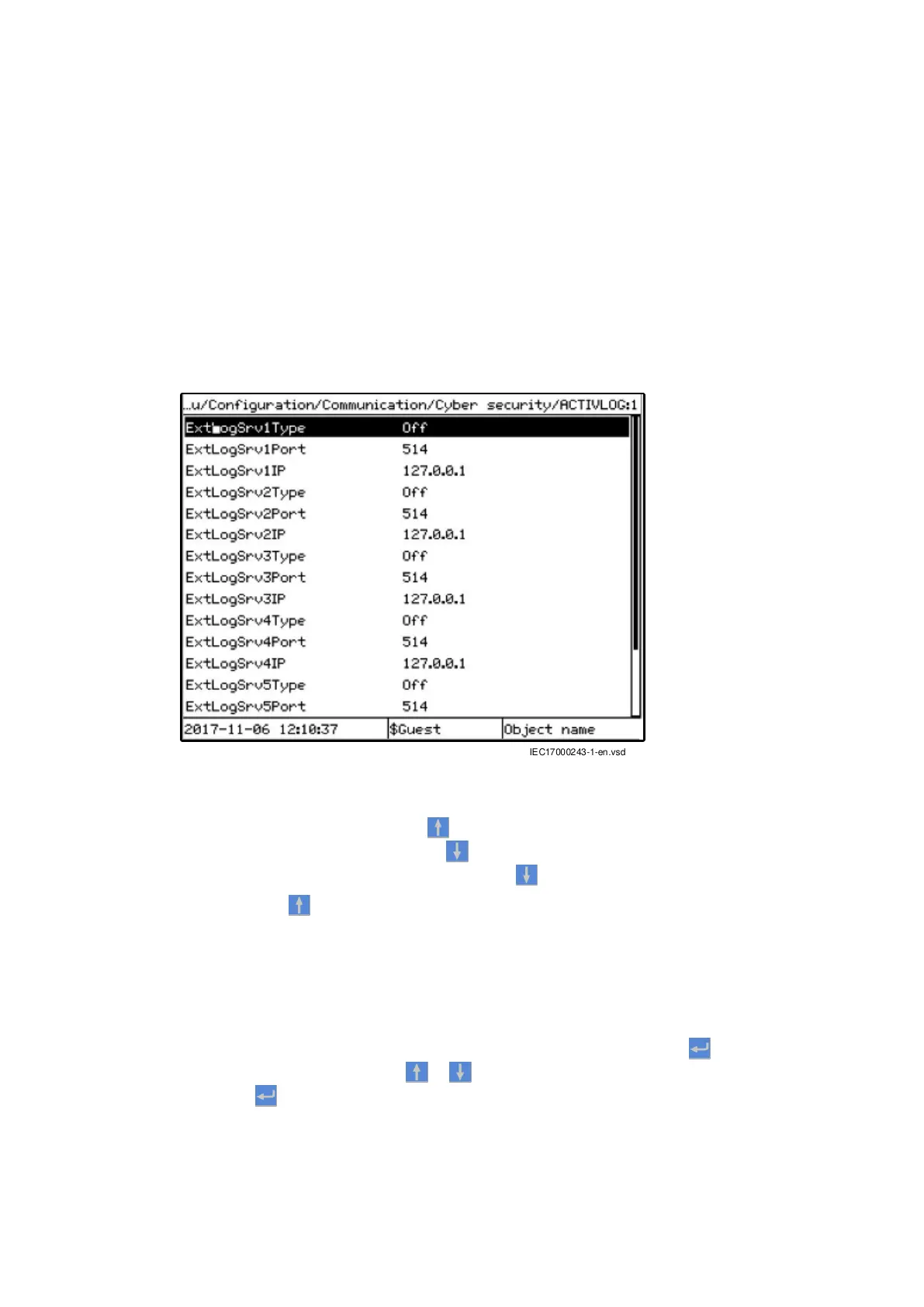

Figure 17: Scroll bar on the right
•
To scroll the view upwards, press .
•
To scroll the view downwards, press .
•
To jump from the last row to the first row, press
again.
•
Press to jump from the first row to the last row.
5.1.7.3 Changing the default view
GUID-068D31CD-D53C-48F4-817C-EAD8E33C0A0C v8
The default view of the display is Main menu unless set otherwise.
1.
Select Main menu /Configuration /HMI /Screen /SCREEN:1 and press .
2.
Change the default view with
or .
3.
Press to confirm the selection.
