IEC13000247-1-en.vsd
GUID-6FC25881-990D-4288-8206-7F807044F572 V2 EN-US

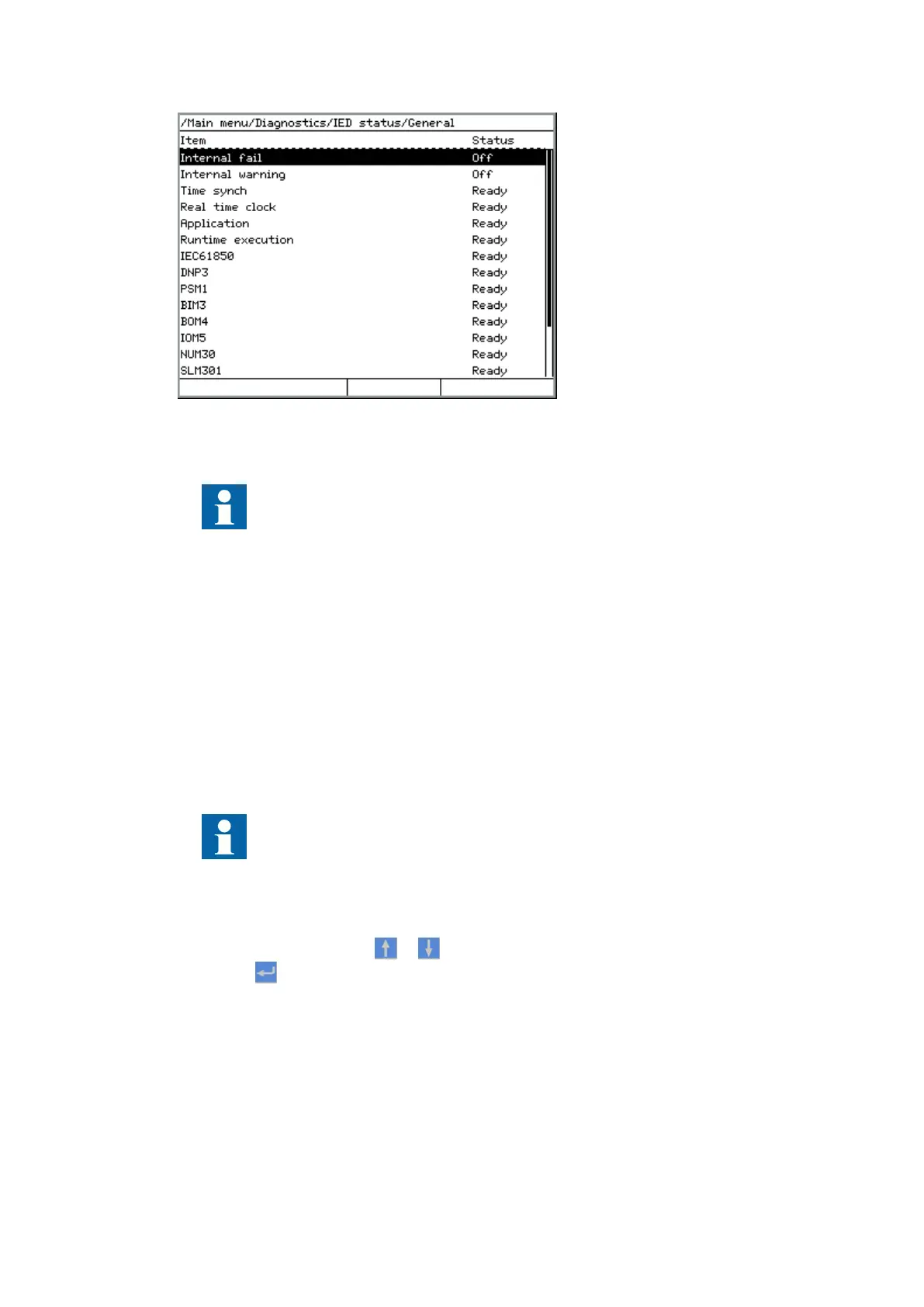

Figure 27: Fault indication
The internal event list is not updated dynamically. To update the list, leave the
Internal events menu and then select it again.
7.1.2 Recorded data
GUID-1E9CFEC1-6245-4612-B637-821951B95D60 v7
The IED is provided with intelligent and flexible functionality that collects different kinds of data. The
recorded data gives substantial information for post fault analysis.
• Disturbance records
• Events
7.1.2.1 Creating disturbance recordings
GUID-B0CE46C1-1219-4BA2-9627-E53FC0413409 v5
Normally disturbance recordings are triggered by the IED applications but the recording can also be
triggered manually.
Set the DRPRDRE
Operation to On via LHMI or PCM600 and at least one channel
has to be connected. To make the setting, select Main menu /Settings /IED
Settings and then Monitoring /Disturbance report /DisturbanceReport /
DRPRDRE:1 .
1. Select Main menu /Disturbance records .
2.
Select Manual Trig with or .
3.
Press to execute manual triggering.
