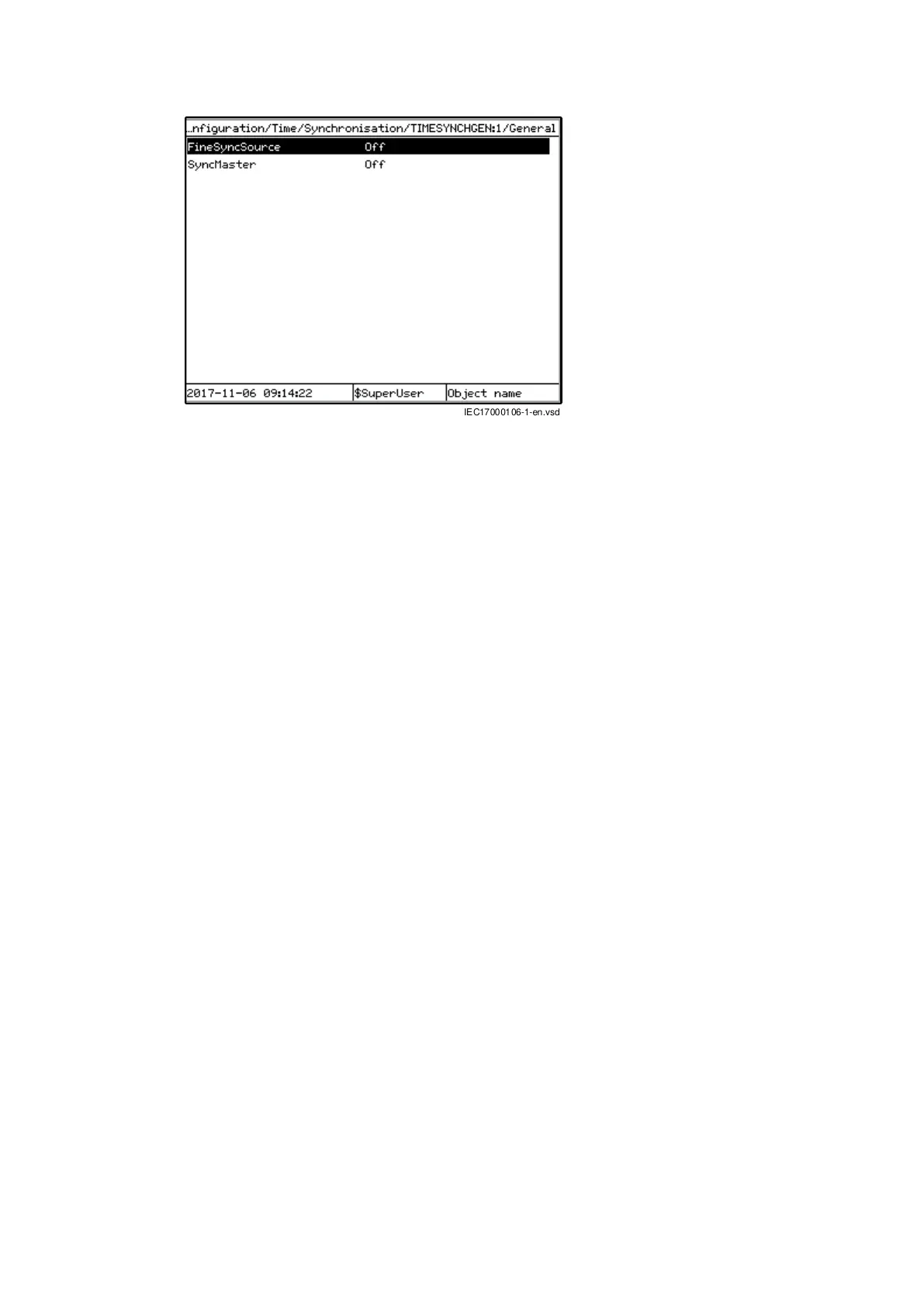

Figure 4: Truncated path
The display is updated either cyclically or based on changes in the source data such as parameters
or events.
4.3.2 Keypad
AMU0600428 v19
The LHMI keypad contains push-buttons which are used to navigate in different views or menus. The
push-buttons are also used to acknowledge alarms, reset indications, provide help and switch
between local and remote control mode.
The keypad also contains programmable push-buttons that can be configured either as menu
shortcut or control buttons.
