ABB Relion - Page 63

OSWGAPC4
OUT
Start 2
TPGAPC1_IN2
SELGAPC4_IN_5
IN_1
IN_2
IN_3
IN_4
IN_5
IN_6
IN_7
IN_8
IN_9
IN_10
IN_11
IN_12
IN_13
PHPTUV2_START
PHPTUV3_START
FRPFRQ1_START
FRPFRQ2_START
NSPTOV1_START
PHPTOV1_START
NSPTOV2_START
PHPTUV1_START
ROVPTOV1_START
ROVPTOV2_START
ROVPTOV3_START
PHPTOV3_START
PHPTOV2_START
IN_14
IN_15
PSPTUV1_START
PSPTUV2_START
GUID-BBEFEA55-AEDB-44D2-943B-C0151C9C7D3C V1 EN

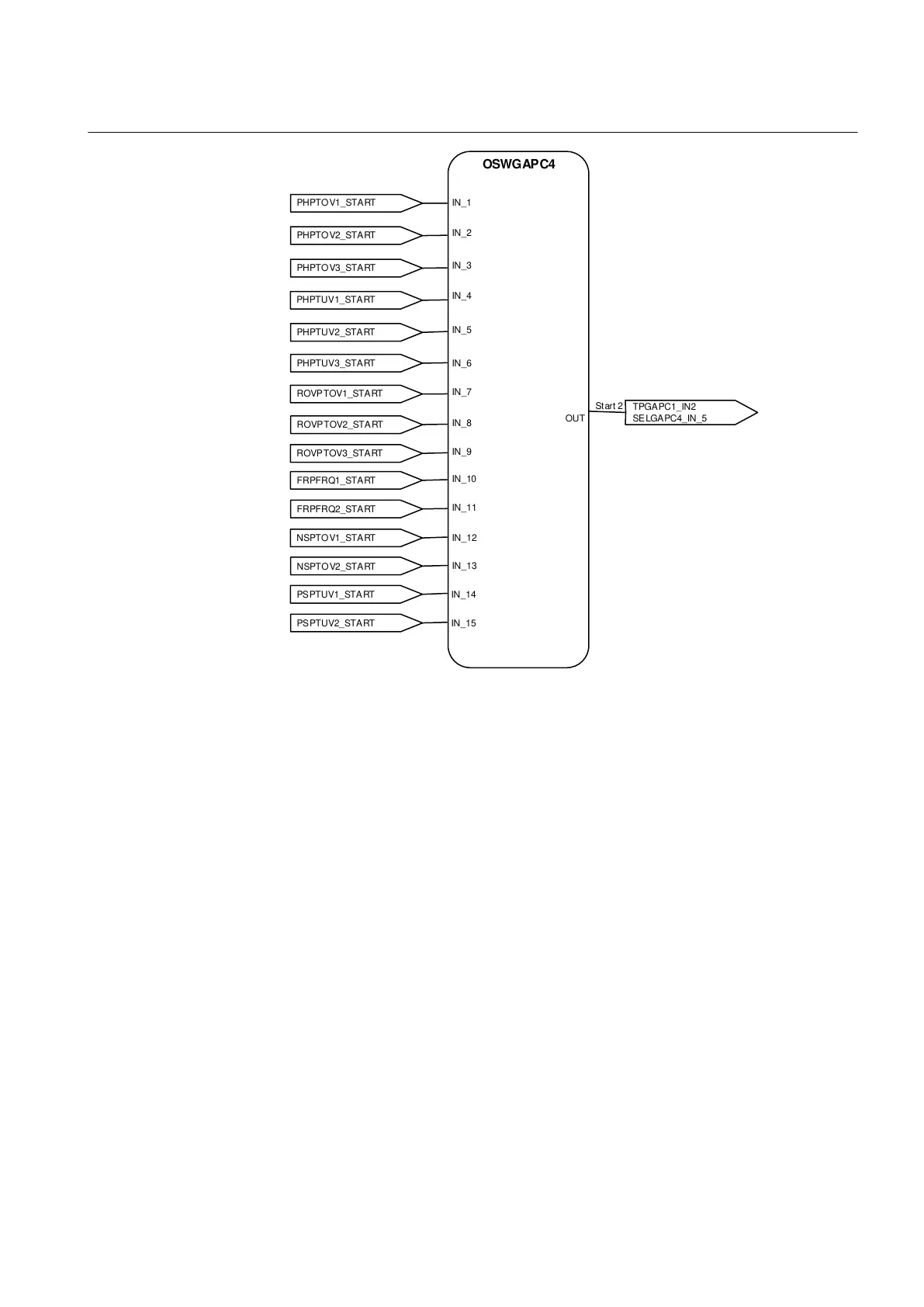

Figure 39: OSWGAPC4
1MRS758335 B Section 3
REU611 standardized configuration
REU611 57
Application Manual
