GUID-F03EF024-C321-473D-B753-D7D490D99282 V1 EN

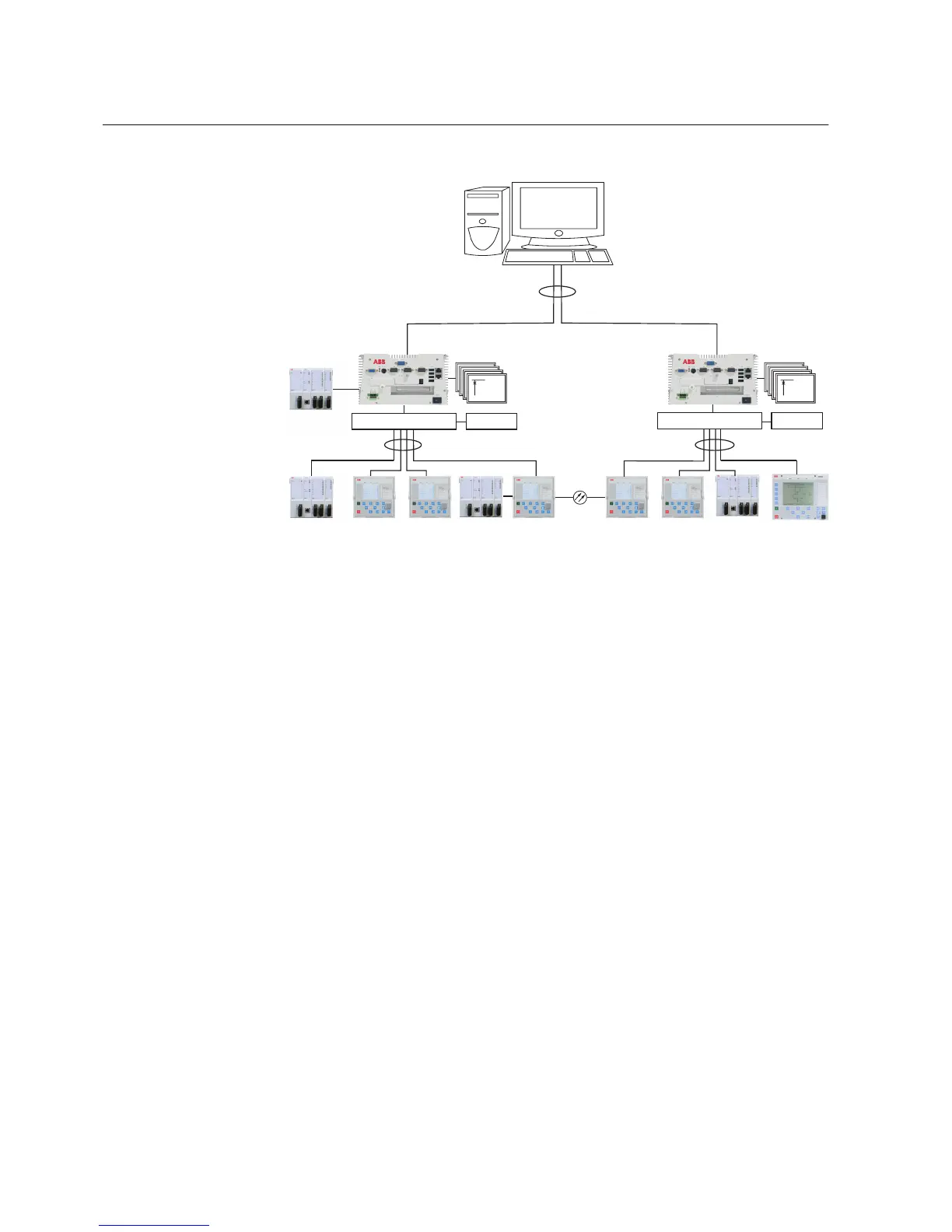

Figure 2: Conceptual picture of a typical system setup
Understanding the communication properties of the IED is a prerequisite before
making any mechanical or electrical connections to RIO600. The connection
details of the IED are available in the respective manuals.
2.1.1 Module configuration
RIO600 is designed using a modular architecture, where the I/O control
functionality is built on modules. The RIO600 modules can be stacked on a
standard DIN rail to achieve the required configuration. The minimum
configuration required for RIO600 is PSM_H-LECM-DIM8_H or PSM_H-LECM-
DOM.
RIO600 consists of four module types.
• Power Supply Module (PSM_H)
• Communication Module (LECM)
• Digital Input Module (DIM8_H)
• Digital Output Module (DOM)
RIO600 can be configured to operate a maximum of 20 binary I/O signals using
one PSM_H module and up to 40 binary I/O signals using two PSM _H modules.
Section 2 1MRS757489 A
RIO600 overview
8 RIO600
Configuration Manual
