ABB RIO600 - Building the Plant Structure

GUID-BECFF2D6-C182-4B80-9FA9-9568D425B195 V1 EN

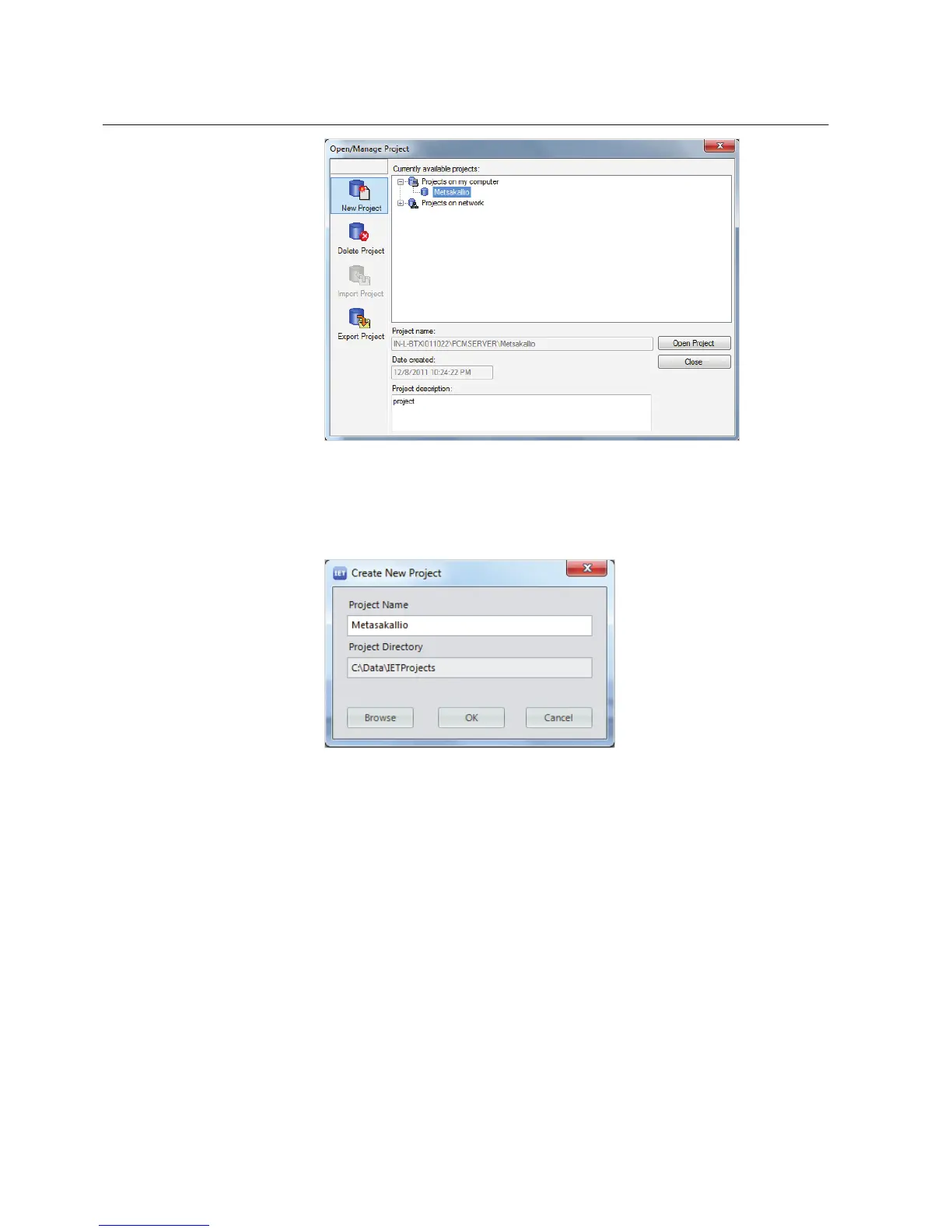

Figure 12: Creating new projects
5. In the Project Name box, give a name for the project.
• Optionally, write a description of the project in the Description box.
GUID-AA358B9E-2186-482E-9E33-EE2CAB5E5715 V1 EN
Figure 13: Naming a project
6. Click Create.
PCM600 sets up a new project that is listed under Projects on my computer.
3.3 Building the plant structure
1. Create a new plant structure in PCM600.
1.1. In the Plant Structure view, right-click and select New/ General.
1.2. Select the element like Substation, Voltage level and Bay.
