Section 7 Using the Composition Update tool
The RIO600 composition is defined with the configuration wizard at the time the
device is inserted to the project. Later the composition for an existing IED can be
modified with CUT.
7.1 Configuring the device offline

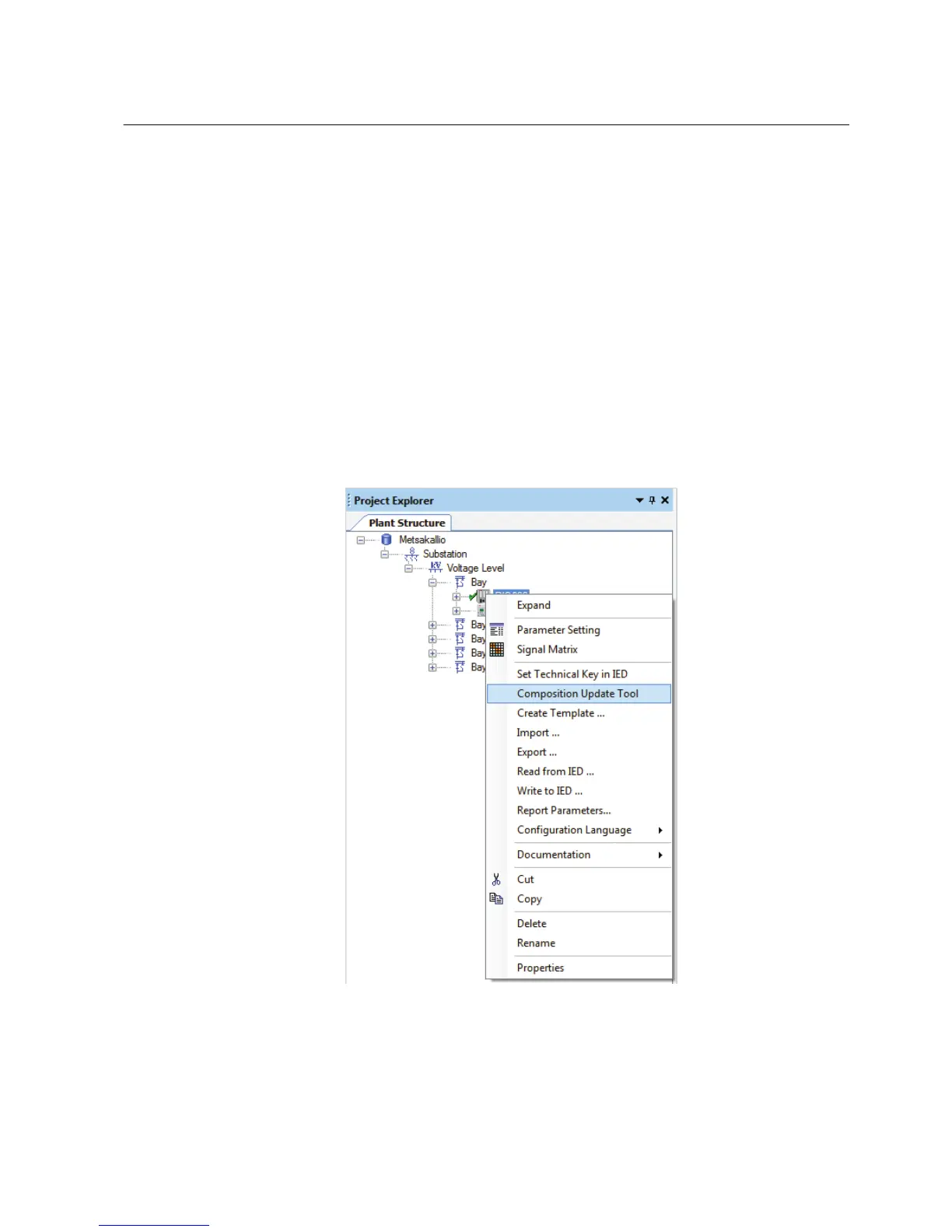

1. In the Plant Structure view, right-click RIO600 and select Composition
Update Tool.
GUID-0A6171A6-5A56-45B4-AEDE-6DEDC09A9318 V1 EN
Figure 59: Selecting Composition Update Tool
