GUID-513EE8B1-FD6F-4209-B775-264033CE774A V1 EN

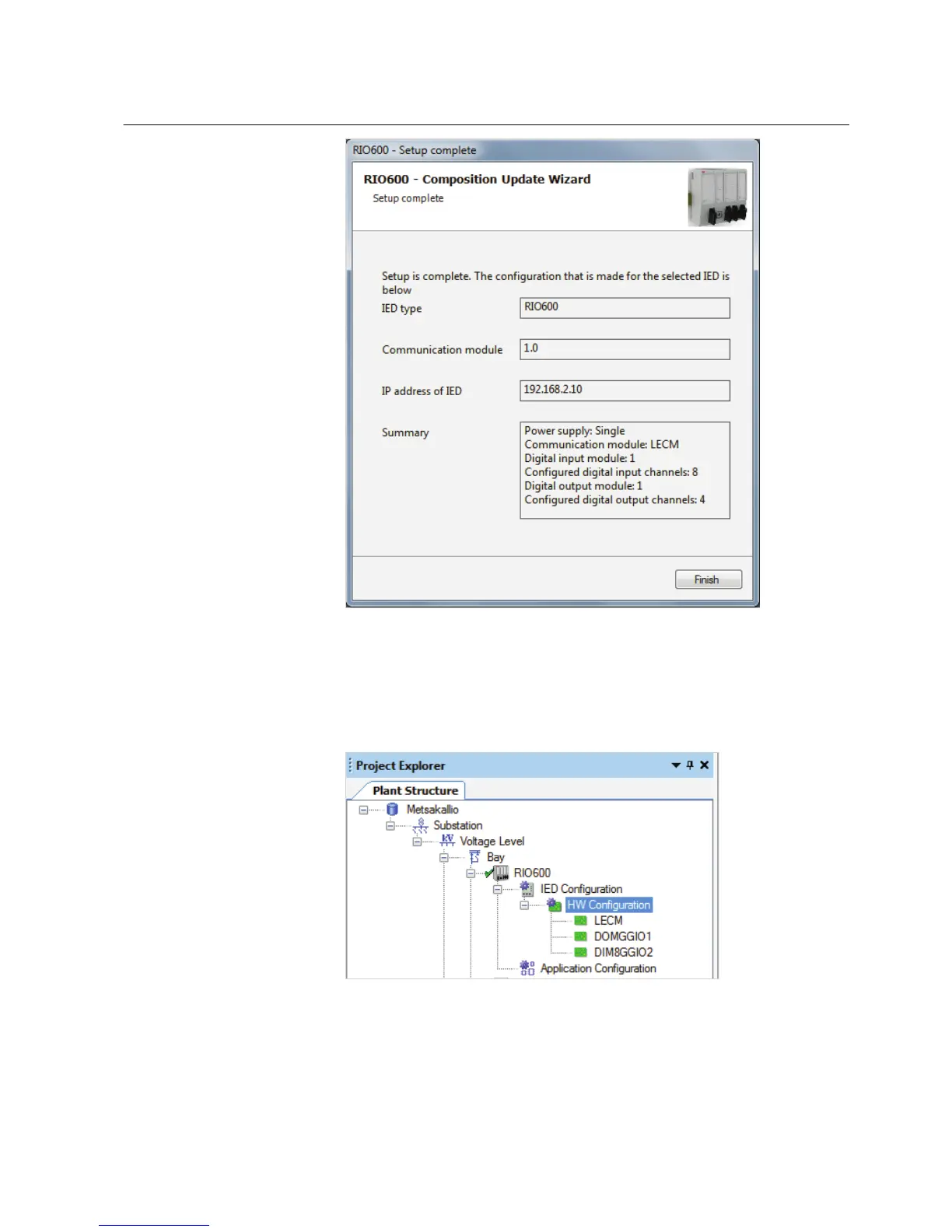

Figure 68: Viewing the updated summary page in online mode
The plant structure is updated according to the hardware configuration. The
summary of the configuration wizard selections is displayed. Click Finish to
close the configuration wizard setup and Plant Structure is updated for the
selected IED.
GUID-3F92EFC9-CCBE-46C6-BFF9-7A57CB81D2C9 V1 EN
Figure 69: Viewing updated plant structure
1MRS757489 A Section 7
Using the Composition Update tool
RIO600 63
Configuration Manual
