5.3.1. Example of dip-switch setting

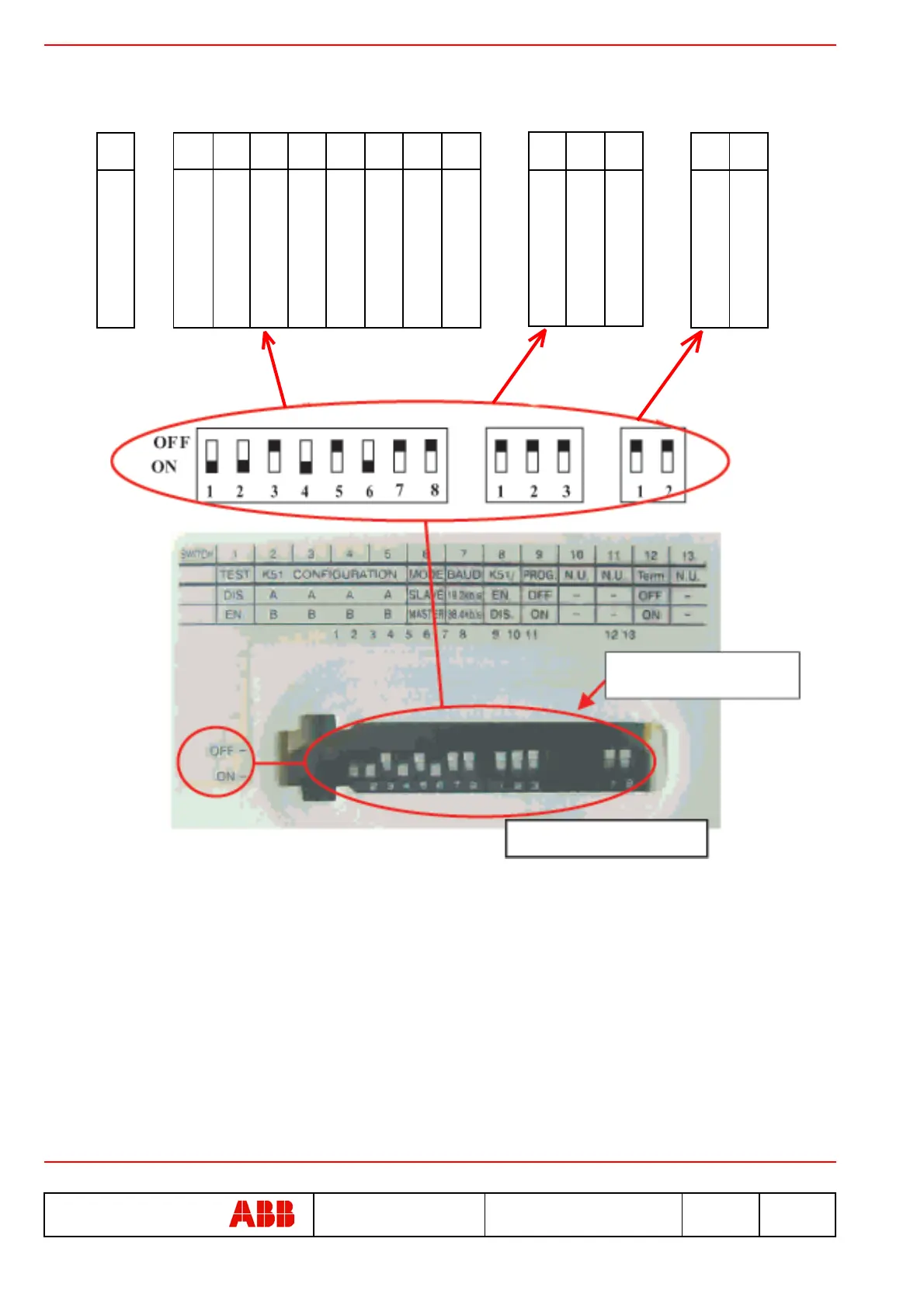

Example of dip-switch setting for connecting the PR021/K unit.
12 13
Dip-sw description
No.
12 3 4 56 7 8 91011
TEST: EN
K51 Configuration: B
K51 Configuration: A
K51 Configuration: B
K51 Configuration: A
MODE: MASTER BAUD: 19.2kb/s K51/: EN.
PROG.: OFF
RESET: MAN LATCH: OFF
Term.: OFF N.U.: OFF
Dip-switches for setting
the operating mode
PR021/K top view
