ABB Sace TMAX XT XT4 ELECTRONIC - Page 10

10
INSTRUCTION HANDBOOK
13

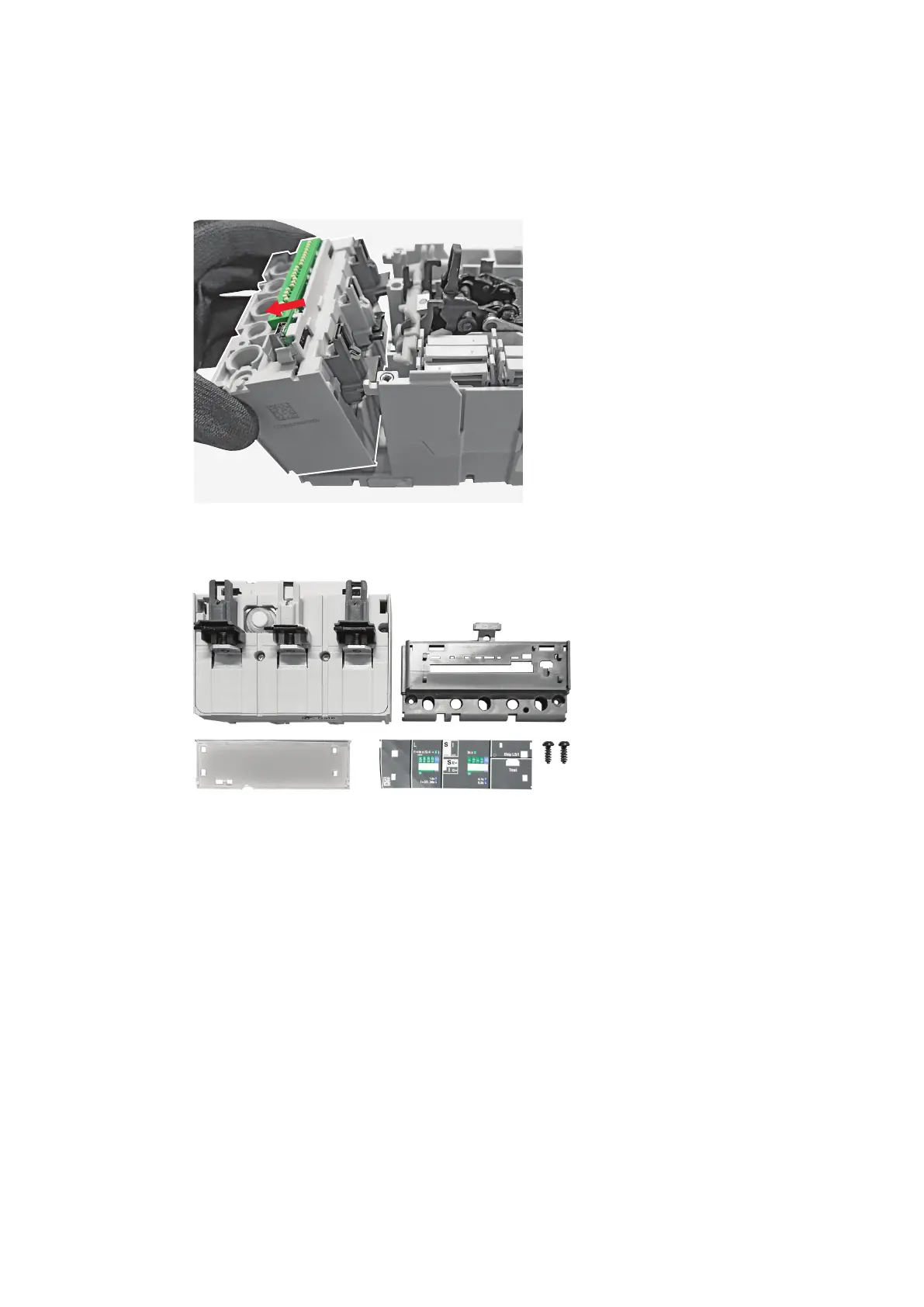

Manually slightly pull the trip unit as indicated
by the arrow and after lift the trip unit in order
to complete the removal
Disassembled parts
 
 
 
 
 
*Trip unit will be furtherly disassembled (see Phases 6.11 and 6.12)
