Disassembly instruction tmaX Xt Xt4 electronic
Tools
Allen key
Flat screwdriver
 
 
(Thermoplastics containing brominated flame retardants)
6.1 PHASE 1 – CAP KITS
1

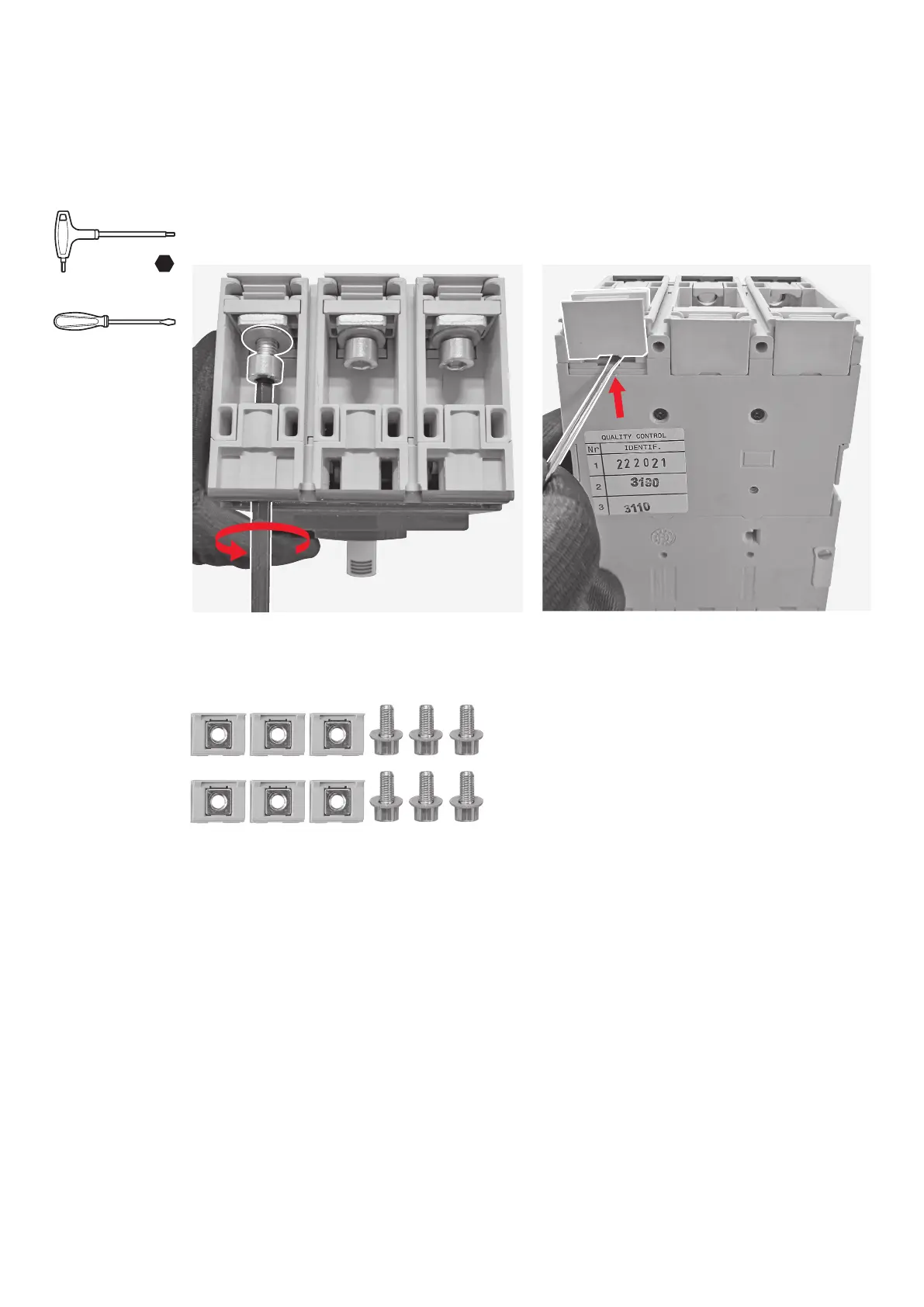

By means of the allen key remove the screws
connected with the cap kits.
2
Insert the flat screwdriver as shown in Picture 2
and push it up in order to remove the cap kits.
Actions to be performed
Disassembled parts
6mm
