Disassembly instruction tmaX Xt Xt4 electronic
Tools
6.8 PHASE 8 – BREAKING PART COVER AND CONNECTED PARTS
Actions to be performed
Flat screwdriver
Pliers
Cross screwdriver
27

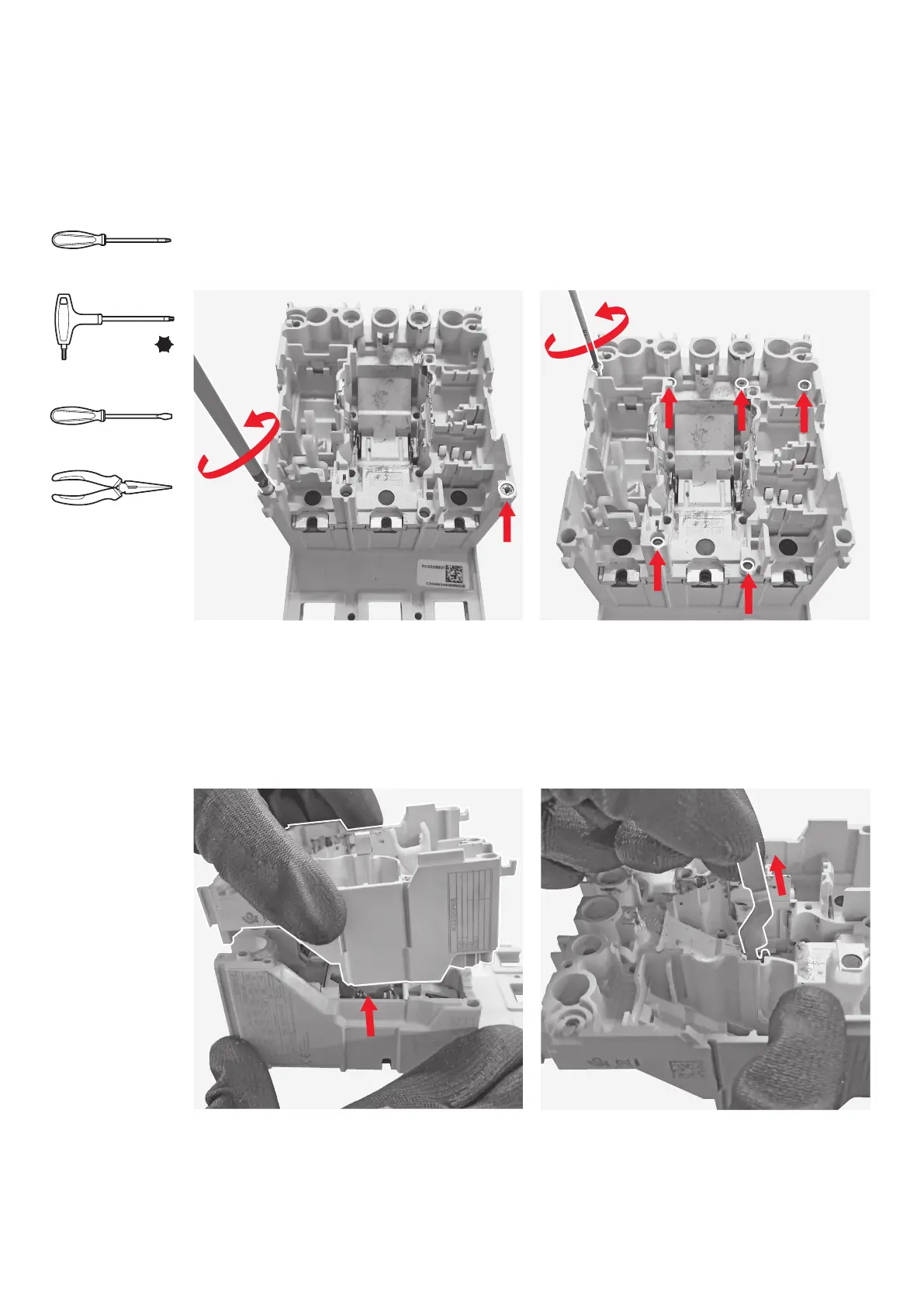

By means of the cross screwdriver unscrew the
2 screws located at the bottom corners of the
breaking part cover.*
29
Manually lift the breaking part cover.
28
By means of the cross screwdriver uncrew the
6 screws fixing the breaking part cover to the
breaking part base.
30
Manually lift the motor operator lever located
between the hole previously hosting the
operating mechanism and after complete
removal operation.
Torx key
No. 8
 
k
ey must be used to unsrew the 2 screws.
