ABB Sace TMAX XT XT4 ELECTRONIC - 6.5 PHASE 5 - PLASTIC PARTS MOUNTED ON THE BREAKING PART

11

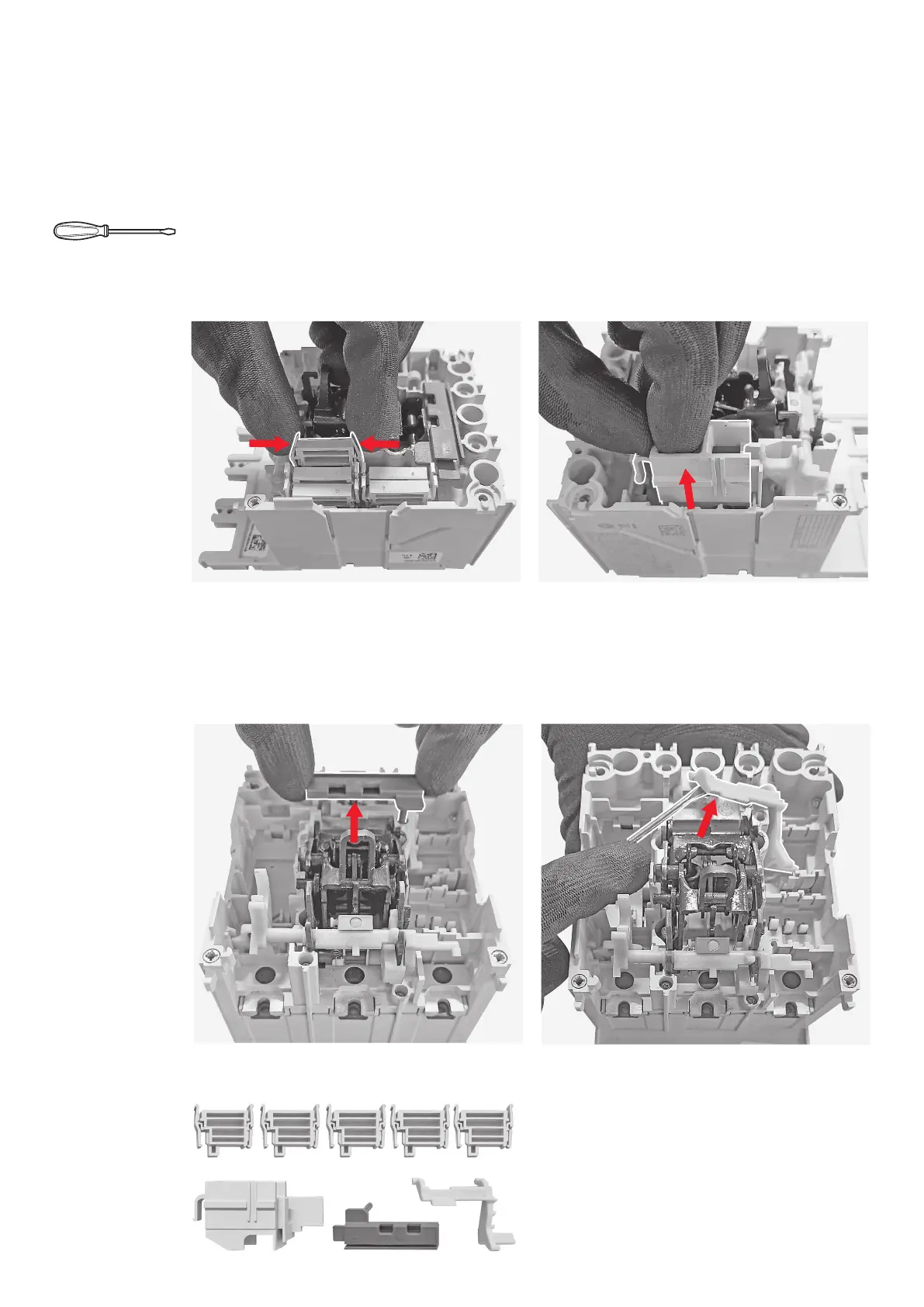

Disassembly instruction tmaX Xt Xt4 electronic
14
Manually slightly push the 2 flaps present on
each case for microswitch located in the right
hole of the breaking part as indicated by the
arrows and after manually lift each case for
microswitch to complete the removal.
16
Manually lift cable crossing cover located in the
upper part of the breaking part.
15
By means of the flat screwdriver lift the plug
located in the left hole of the breaking part and
after manually complete the removal of the
plug.
17
By means of the flat screwdriver lift the white
plastic lever located in the upper part of the
breaking part and after manually complete the
removal of the white plastic lever.
Disassembled parts
 
(
Thermoplastics containing brominated flame retardants)
 
 
6.5 PHASE 5 – PLASTIC PARTS MOUNTED ON THE BREAKING PART
Actions to be performed
Tools
Flat screwdriverFlat screwdriver
