ABB Sace TMAX XT XT4 ELECTRONIC - 6.10 PHASE 10 - FIXED CONTACTS

20
INSTRUCTION HANDBOOK

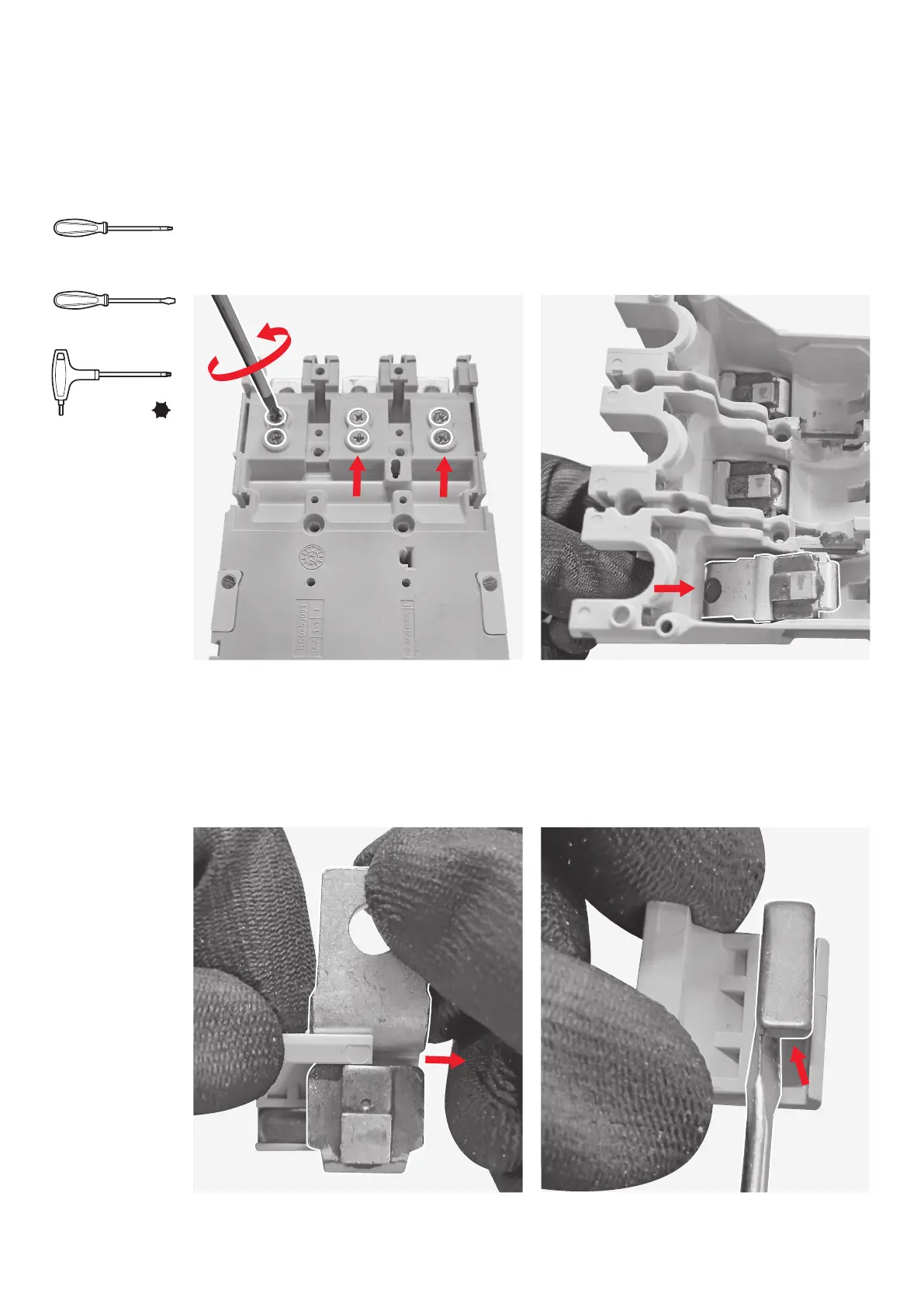

6.10 PHASE 10 – FIXED CONTACTS
Actions to be performed Tools
Flat screwdriver
Cross screwdriver
44
By means of the cross screw driver unscrew
the 6 screws located in the back part of the
breaking part base*.
46
Manually separate the plastic part from the
metal part constituting the fixed contacts.
45
Manually push the fixed contacts as indicated
by the arrow.
47
By means of the flat screwdriver remove the
metal plate mounted on the the plastic part
constituting the fixed contacts.
Torx key
No. 20
* To unscrew the 3 bottom screws mounted on circuit breakers

