ABB Sace TMAX XT XT4 ELECTRONIC - 6.9 PHASE 9 - MOVING CONTACTS AND ARCHING CHAMBERS

18
INSTRUCTION HANDBOOK
38

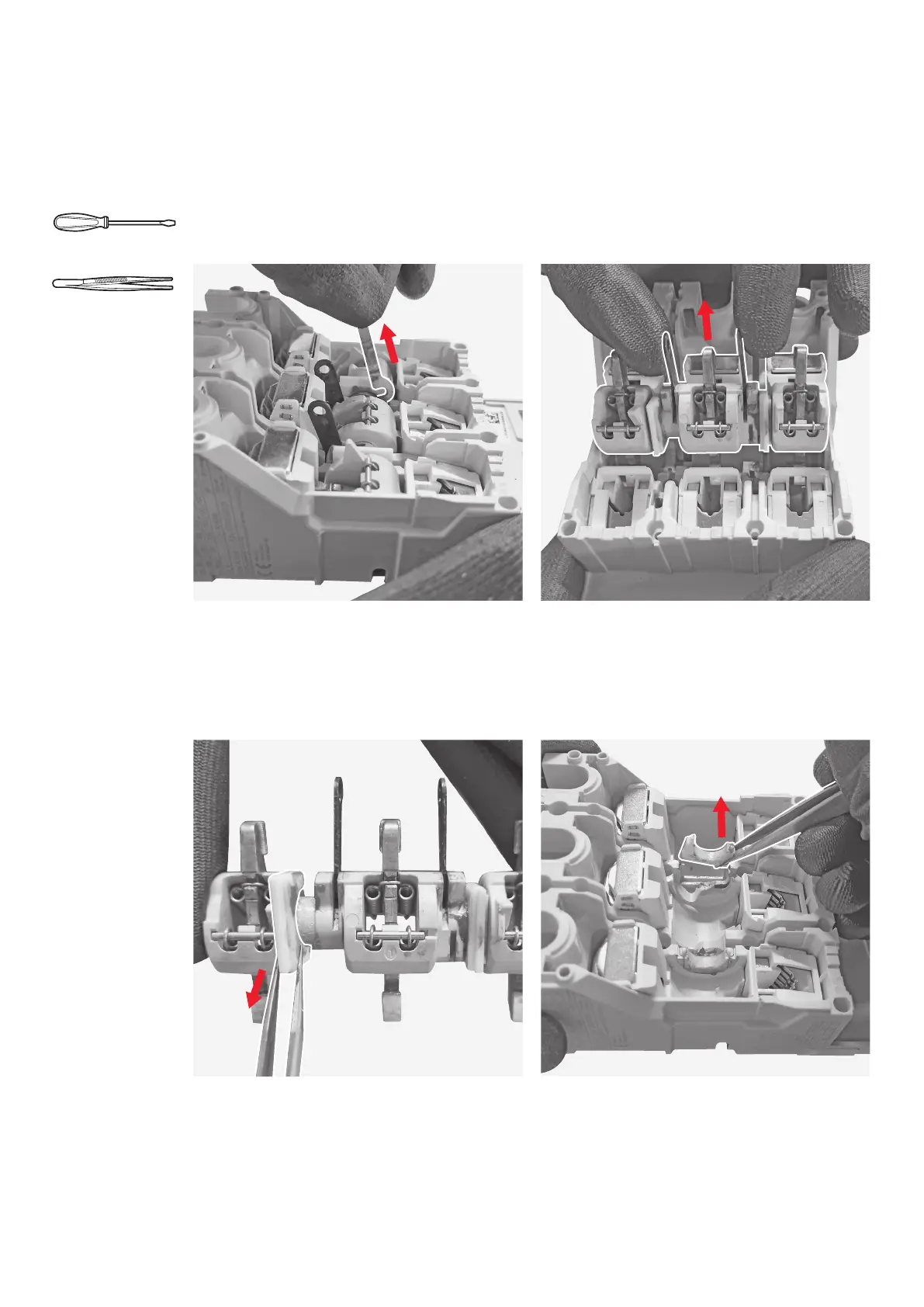

Manually remove the block lever.
40
By means of the pliers remove the 2 plugs
mounted on the moving contacts assembly*.
39
Manually lift the moving contacts assembly.
41
By means of the pliers remove the 2 plugs
mounted on the breaking part base.
6.9 PHASE 9 – MOVING CONTACTS AND ARCHING CHAMBERS
Actions to be performed
Tools
Flat screwdriver
Pliers
*
Applicable t
o circuit breakers with V and X breaking capacities
only.
