Disassembly instruction tmaX Xt Xt4 electronic
42

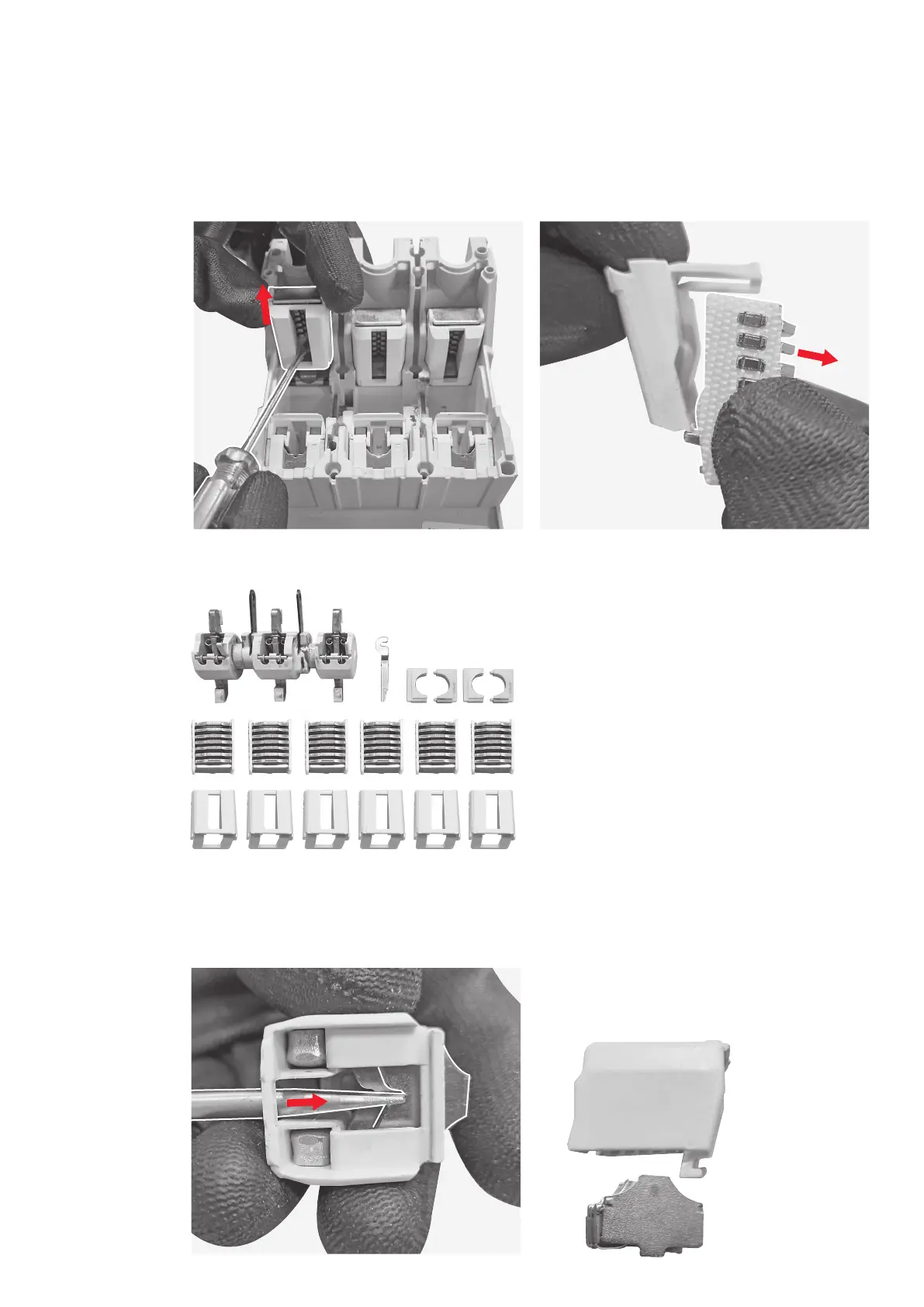

By means of the flat screw driver lift the
arching chambers and after manually complete
the removal operation.
43
Manually separate the arching chambers from
their supports.
Disassembled parts
Note:

unique as
sembly and by means of a flat screwdriver plates can be removed from the arching
chamber case.
 
 
 
 
 
