ABB Sace TMAX XT XT4 ELECTRONIC - 6.7 PHASE 7 - OPERATING MECHANISM AND TRIPPING SHAFT

13
Disassembly instruction tmaX Xt Xt4 electronic
Torx key
Tools
No. 20
Flat screwdriver
Pliers

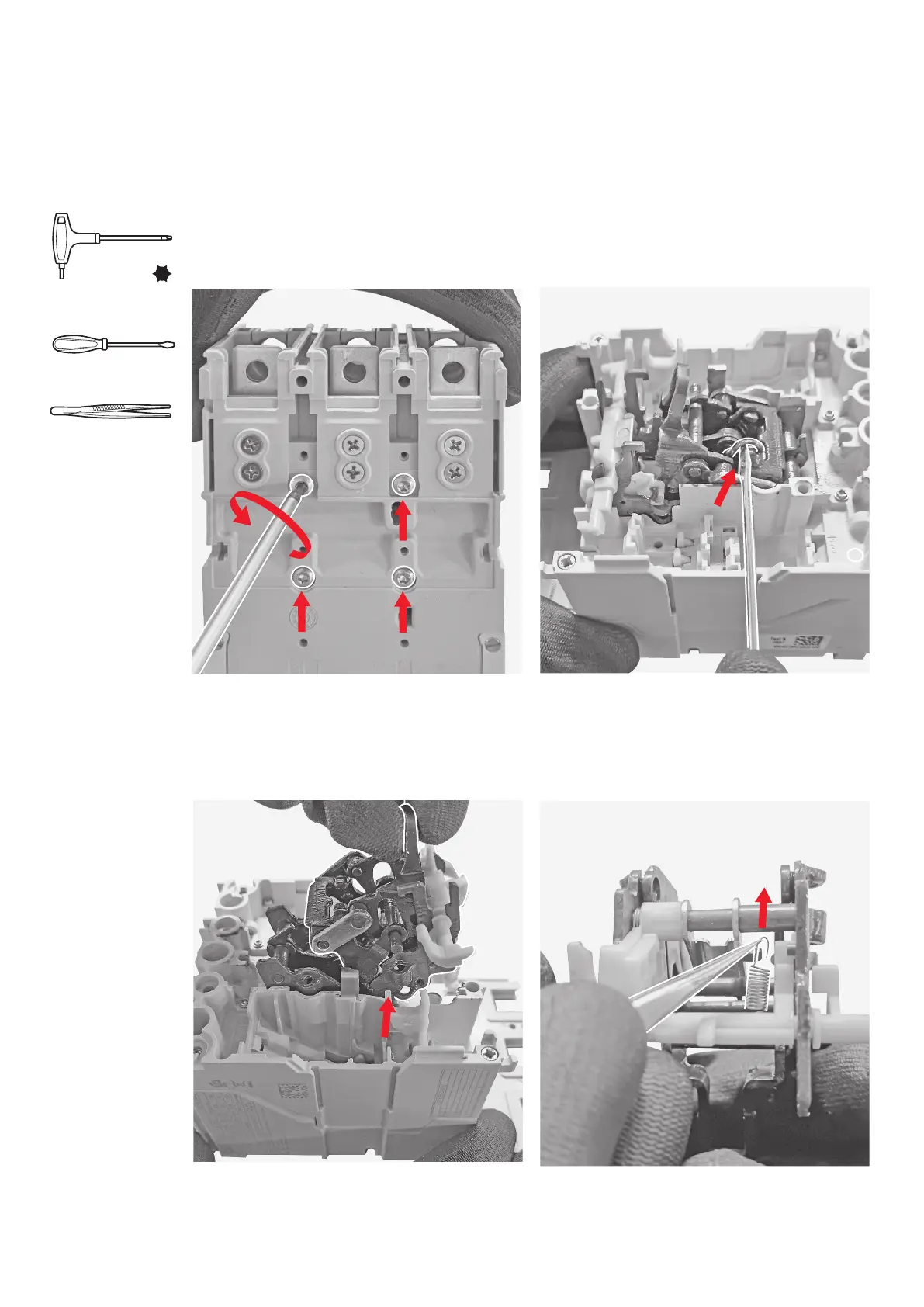

6.7 PHASE 7 – OPERATING MECHANISM AND TRIPPING SHAFT
Actions to be performed
20
By means of the torx key (size 20) unscrew
the 4 screws located in the back part of the
breaking part.
21
By means of the flat screwdriver unhook the 2
springs mounted on the operating mechanism.
23
By means of the pliers remove the spring
mounted in the middle of the operating
mechanism.
22
Manually lift the operating mechanism and
remove it.
