6
INSTRUCTION HANDBOOK
Tools
Cross screwdriver

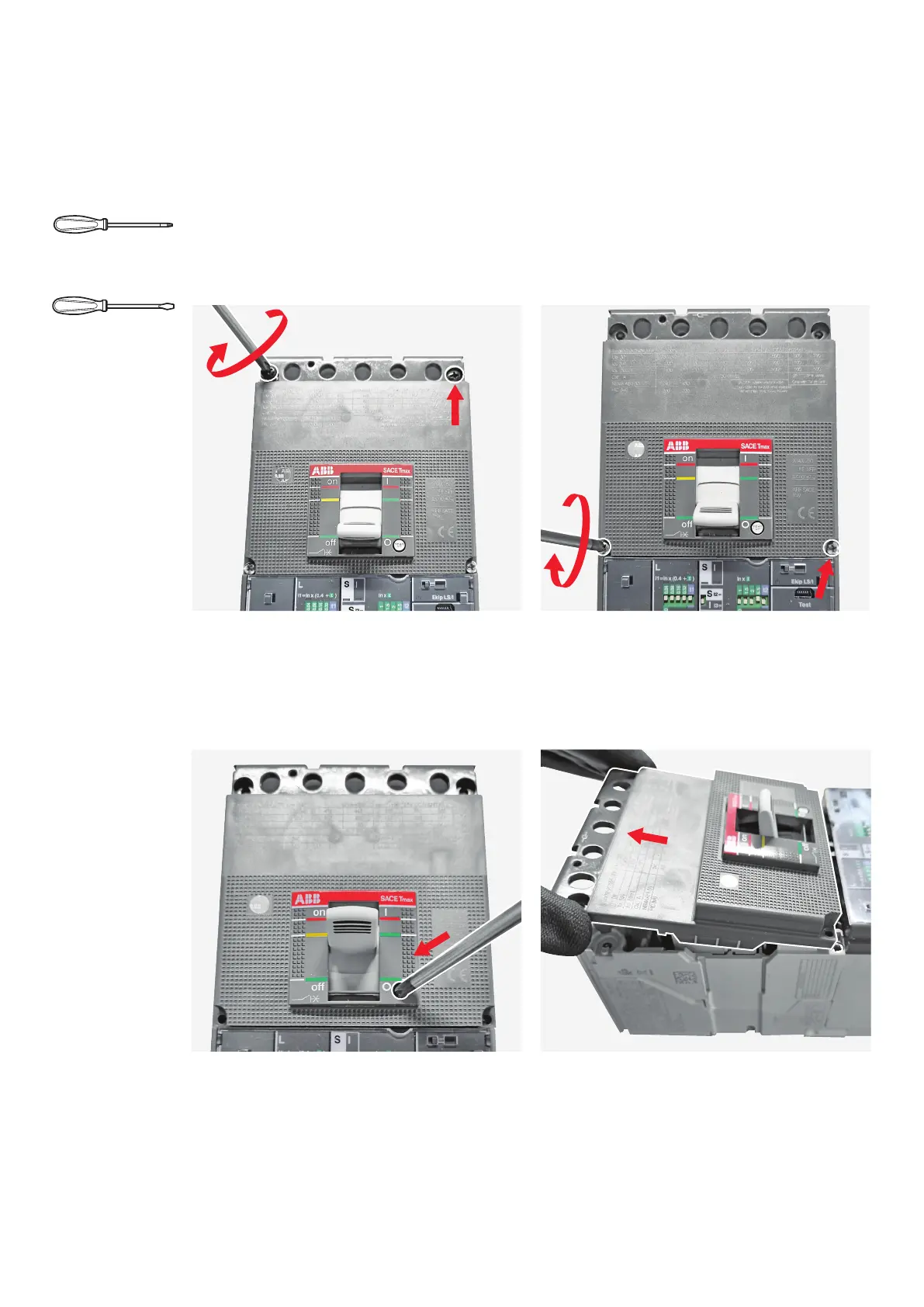

6.2 PHASE 2 – BREAKING PART FRONTAL
3
By means of the cross screwdriver unscrew
the 2 screws located in the upper part of the
breaking part frontal fixing the breaking part
frontal to the circuit breaker main structure.
5
By means of the cross screwdriver push the
trip test button.
6
Manually lift a little bit the breaking part
frontal and complete the removal pulling the
breaking part frontal as indicated by the arrow.
4
By means of the cross screwdriver unscrew
the 2 screws located in the lower part of the
breaking part frontal fixing the breaking part
frontal to the circuit breaker main structure*.
Actions to be performed
* Applicable to circuit breakers with V and X breaking
capacities only.
Flat screwdriverFlat screwdriver
