Disassembly instruction tmaX Xt Xt4 electronic
35

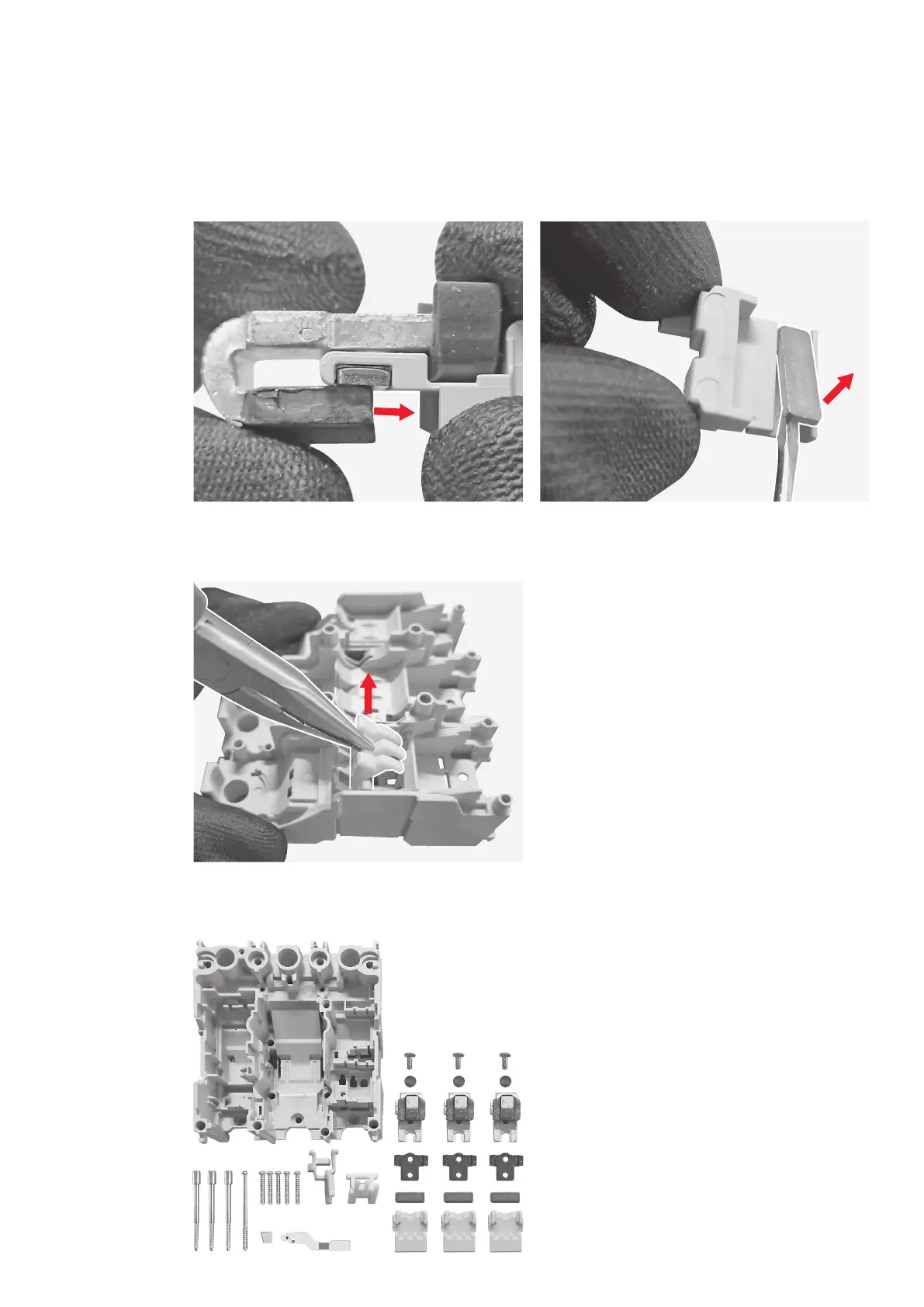

Manually separate the plastic part from the
metals parts constituting the terminals
connections removed at previous step.
37
By means of the pliers remove the open/close
lever.
36
By means of the flat screwdriver remove the
metal plate from the plastic part constituting
terminals connections.
Disassembled parts
 
 
 
 
 
(
Thermoplastics containing brominated flame
retardants)
 
 
 
(
Thermoplastics containing brominated flame
retardants)
