INSTRUCTION HANDBOOK
31

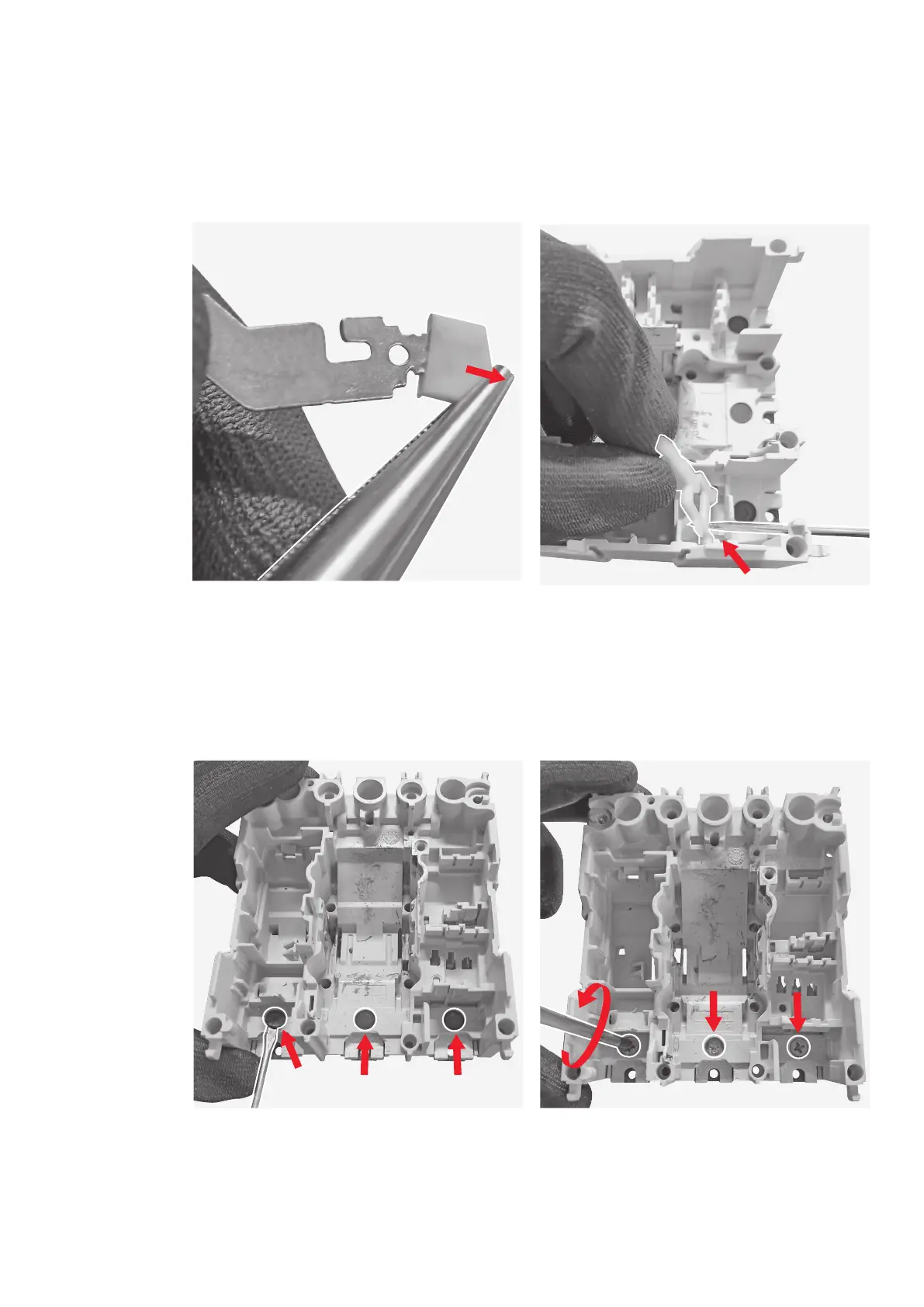

By means of the pliers remove the hood
mounted on the motor operator lever removed
at previous step.
33
By means of the flat screwdriver remove the
3 plugs located in the bottom part of the
breaking part.
32
By means of the flat screwdriver slightly push
on the right the the trip lever mounted in the
bottom part of the breaking part and then lift
the lever in order to complete the removal.
34
By means of the cross screwdriver unscrew
the 3 screws located in the bottom part of
the breaking part; the terminals connections
between the breaking part and the trip unit
will fall from the breaking part by gravity.
