Disassembly instruction tmaX Xt Xt4 electronic
48

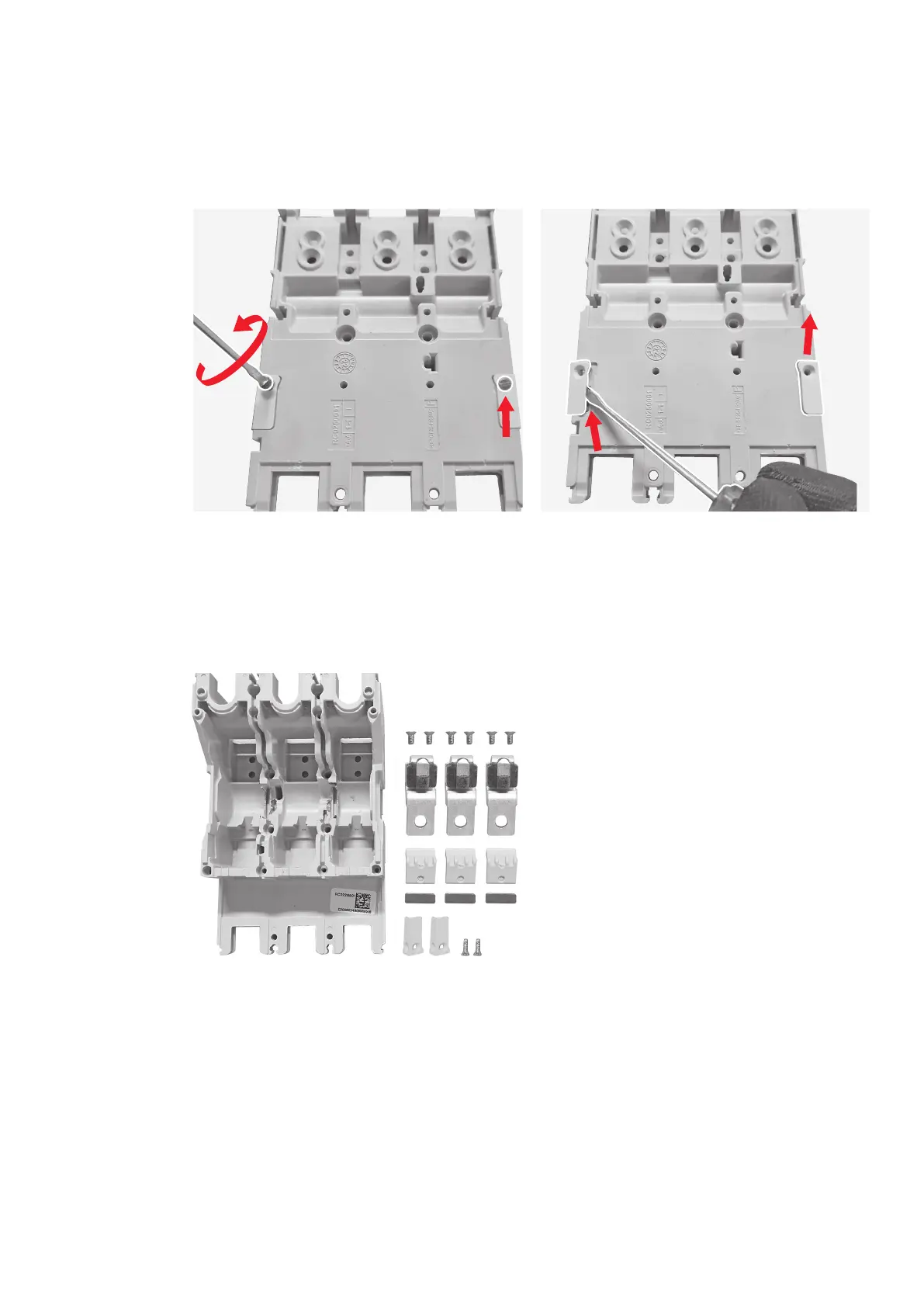

By means of the flat screwdriver unscrew the
screw fixing the case side protection to the
breaking part base.
49
By means of the flat screwdriver complete the
removal of the case side protections.
Disassembled parts
* Applicable to circuit breakers with V and X breaking capacities
only.
* Applicable to circuit breakers with V and X breaking capacities
only.
 
 
 
 
 


