12 SAFEGEAR® 5/15 KV, UP TO 50 KA ARC-RESISTANT SWITCHGEAR

ABB mounts all protection and control devices in a

dedicated low voltage compartment. Each low volt-

age instrument compartment is completely iso-

lated and segregated from high-voltage compo-

nents which ensures the safety of the operations

and maintenance personnel while they work on con-

trol and auxiliary circuits.

Plastic enclosed wireways are used to provide pro-

tection for the wiring, as well as a neat and orga-

nized appearance. This allows for easy addition of

wiring, should it be needed.

Devices and control switches are mounted on the

door for easy readability and convenient access.

Those devices that do not require direct access are

mounted inside the compartment.

Frame-to-frame interconnect wiring is achieved

through openings located in the rear of the LV com-

partment. Each opening is 3“ x 4“ and provided

with edge guard to ensure wires do not run over

sharp edges.

—

Compartment types

Instrument compartment

—

01 Low voltage instru-

ment module isolated

for maximum safety

when working with

low voltage circuits

—

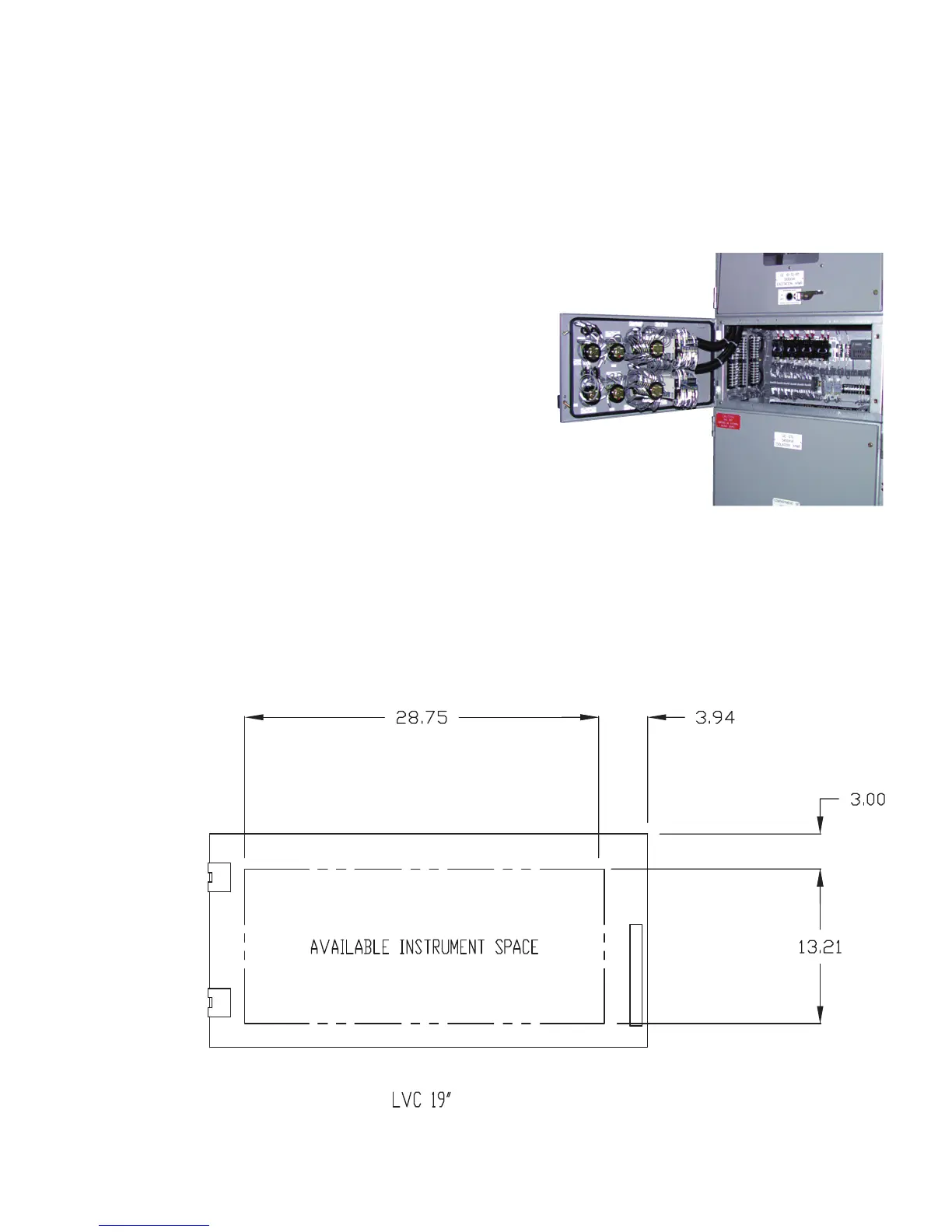

02 Low voltage cabinet

door panel 19"

—
